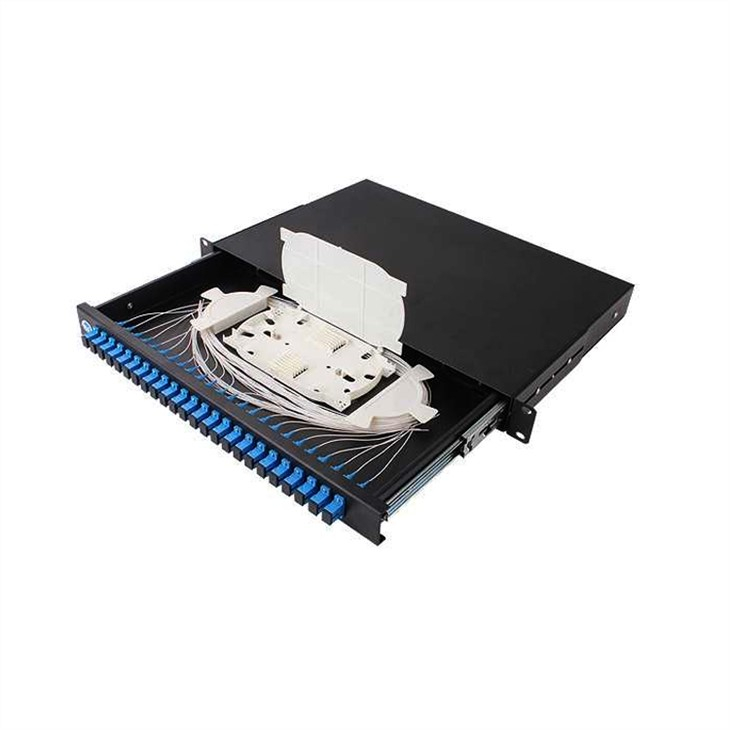

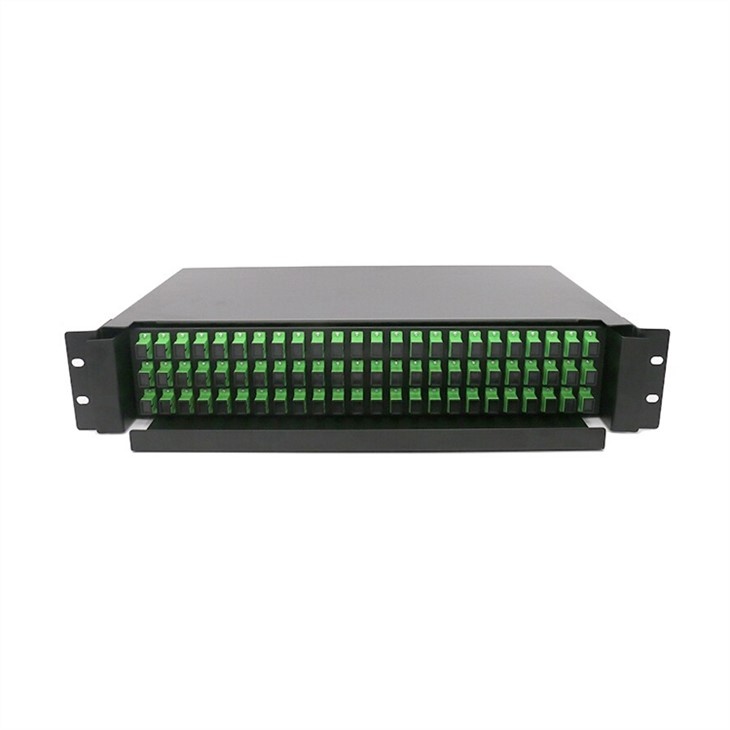

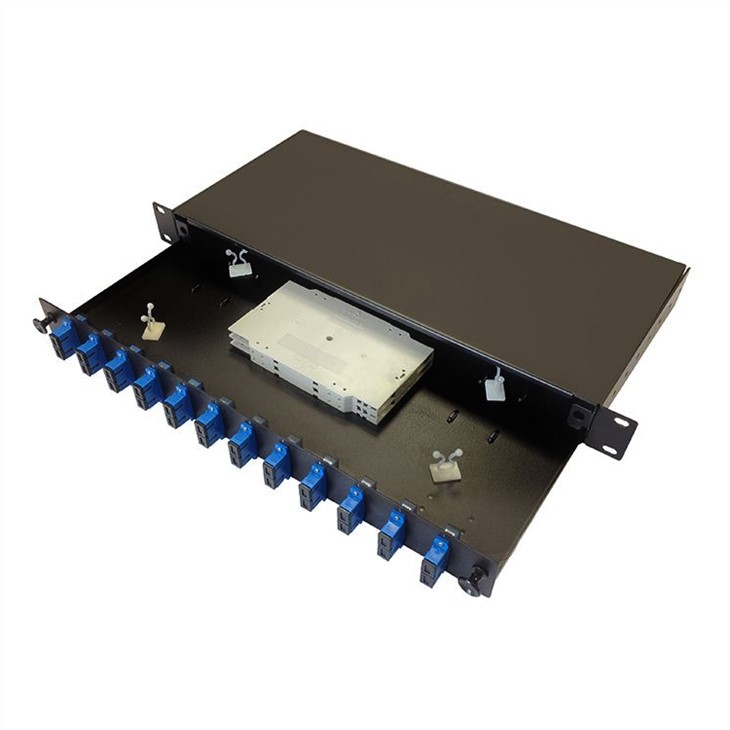

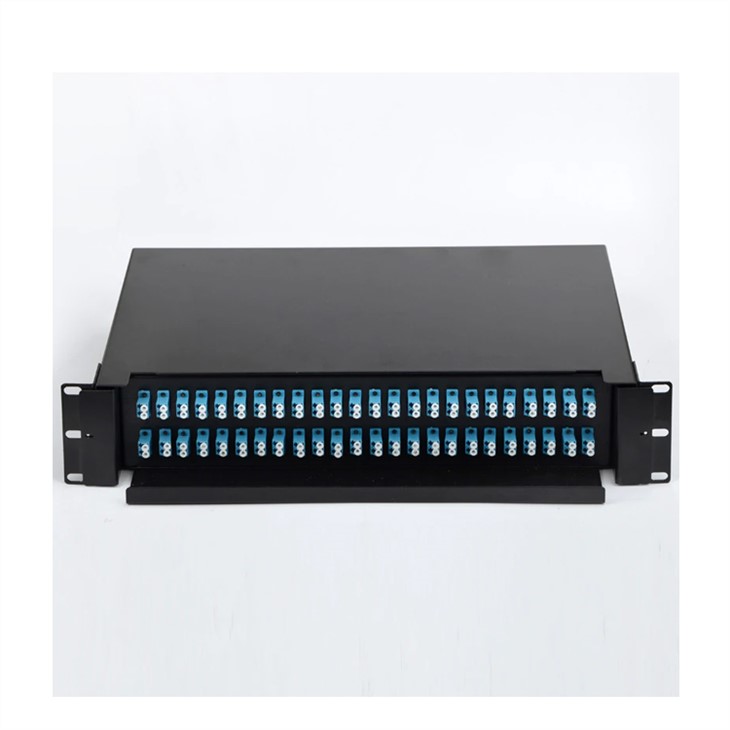

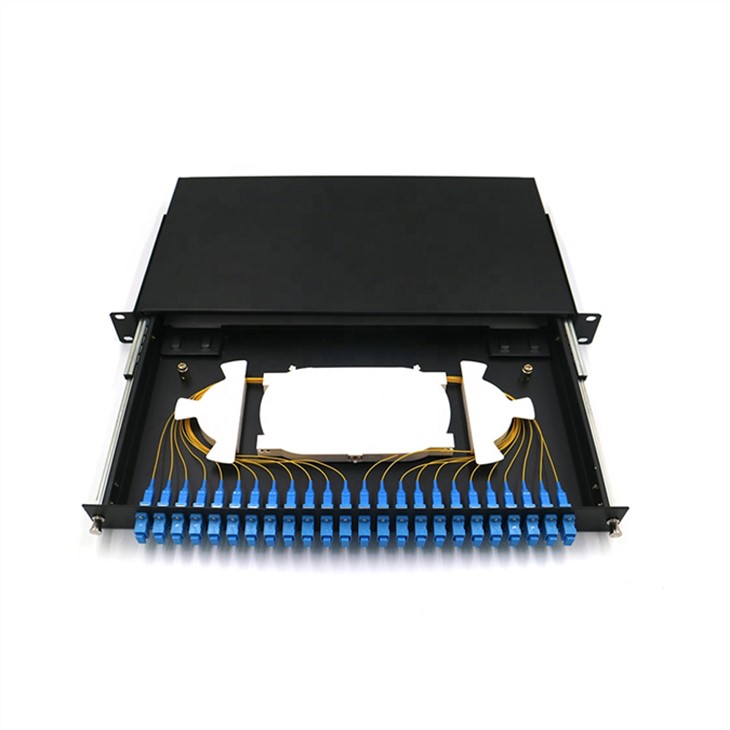

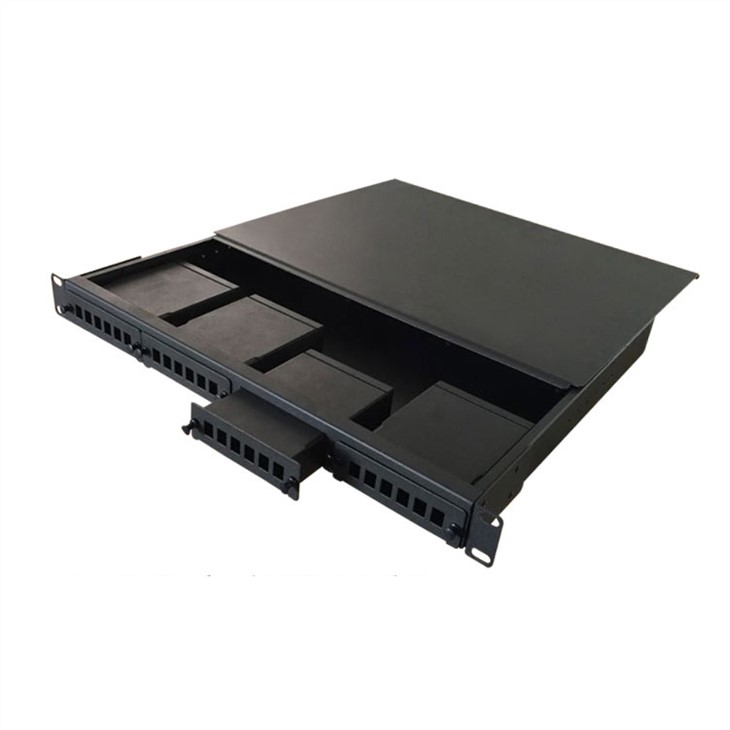

Cable terminal box series products are auxiliary equipment for terminal wiring in optical fiber transmission and communication network, suitable for direct and branch connection of indoor optical cable, and play a protective role in optical fiber joint. Cable terminal box is mainly used for the fixing of optical cable terminal, fusion of optical cable and tail fiber and the collection and protection of the remaining fiber.
Features
● Standard size , easy install.
● Light weight, strong strength, good anti-shocking and dustproof.
● Perfect cable management, cable can be distinguished easily.
● Enough space ensure fiber bent ratio.
● Black color.
● Adapters provide as requirment.
Parameter
Patch Panel | |||
Size (H×W×D) (mm) | 1U(H) x 19"(W) x 200mm(D) | Weight (kg) | 2.5 (without PLC splitter) |
Material | 1.2mm Cold Rolled Steel | Humidity | 0-90%, non-condensing |
Material Coating | Powder | Operating Temperature | -10°C to 60°C |
Colour | Black or Grey | Storage Temperature | -40°C to 85°C |
Adapter | |||
Multimode Insertion Loss | 0.2dB Maximum | Multimode Adapter Wavelength | 850 to 1300nm |
Singlemode Insertion Loss | 0.2dB Maximum | Singlemode Adapter Wavelength | 1310 to 1550nm |
Mating durability | >500 Mating Cycles | ROHS Compliant | Yes |
Application
● Telecommunications
● Fiber to the home (FTTH)
● LAN / WAN
● CATV
