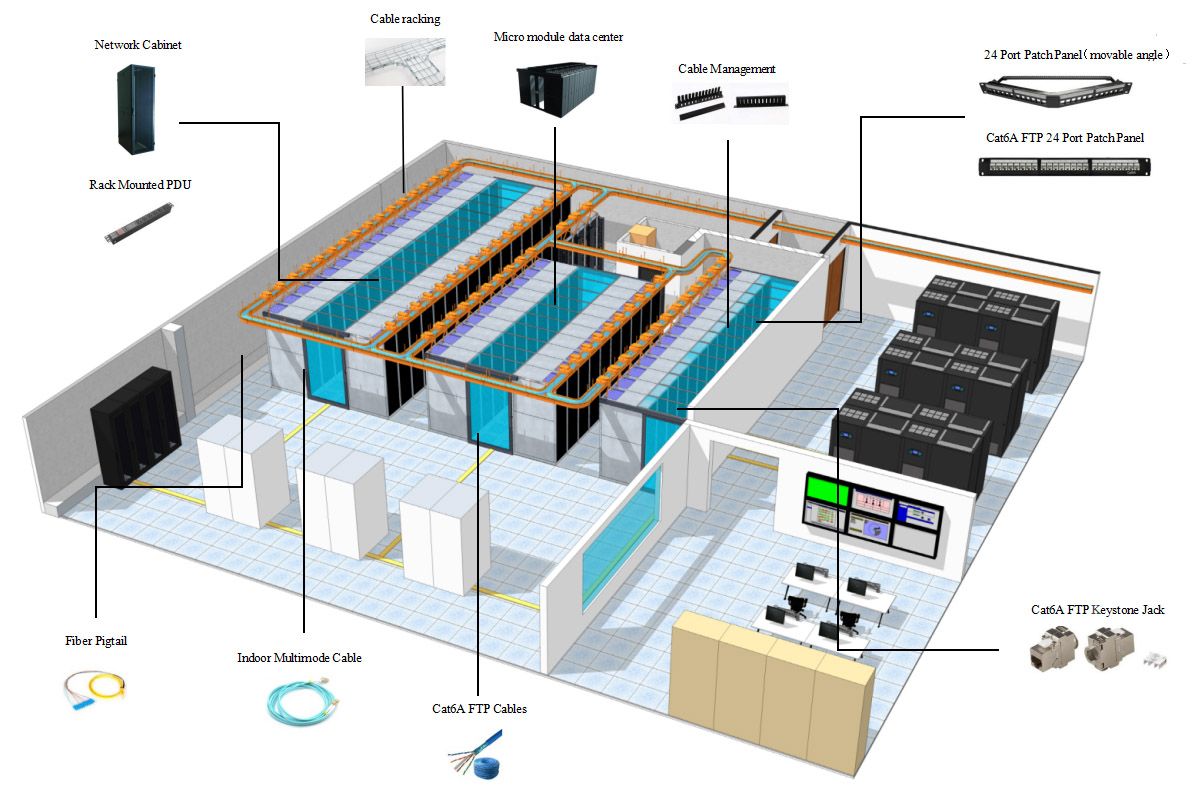

Data Centre Solution

With the rapid development of various technologies such as cloud computing, mobile internet, Internet of Things, and big data, the construction and expansion of data centers have become a trend. Modern data centers are transit stations for electronic information storage, computation, and transmission, and the comprehensive wiring system within the data center is the cornerstone of information transmission. In the construction of the data center, Tangpin suggests using high core or high-density fiber optic distribution frames to improve the utilization rate of the computer room and indirectly reduce energy consumption. The tidy, convenient, factory customizedand tested indoor multimode 10 Gigabit optical cables and sector jumpers provide data centers with end-to-end full link solutions with large core count, fast construction, aesthetics, ease of use and excellent performance. At the same time, Tangpin also provides data center copper cable solutions for customers, and over six types of copper cable products can also meet the product needs of data center customers. Of course, if users have special needs, Tangpin has the most complete comprehensive cabling product line to provide customized end-to-end full link solutions.

Main Products

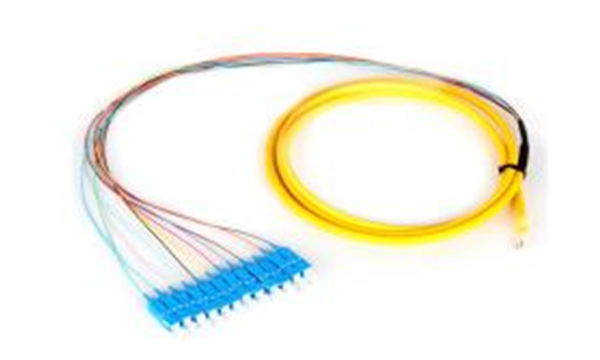

Fiber Pigtail

Compact design, low insertion loss and high return loss.
Complies with ITU-T G.657A or G.652D, etc.
High reliability, wide wavelength range, and wide operating temperature range.
Provide single mode (9/125) or multimode (50/125 or 62.5/125) optical fibers, with simplex or duplex connectors.
Customizable configuration.

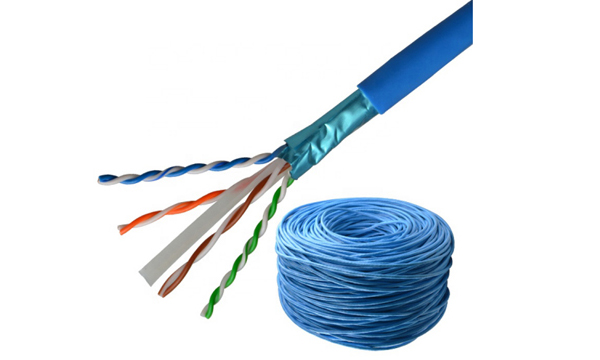

Cat6A FTP Cables

Shielded, twisted pair, each pair wrapped in aluminum foil or coated with a layer of metal mesh, CM/LSZH cable, high-performance modular plugs. The conductor material is solid bare copper, the cable diameter is 23AWG, the insulation tensile strength is greater than 16MPa, and the sheath tensile strength is greater than 13.5MPa. The test can reach above 500HMZ.

Cable Racking

Low insertion loss, Low PDL
Wide working wavelength: from 1260nm to 1650nm.
Excellent environmental and mechanical stability.
Fiber type: G657A or customer specified
Packaging: Steel pipe or ABS
Customization according to customer needs

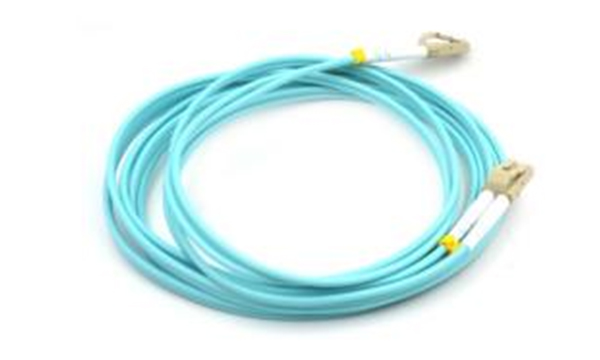

Indoor Multimode Cables

Indoor optical cable, non-metallic reinforcement, tight sleeve optical fiber, flame retardant polyolefin sheathed optical cable, 850nm laser optimized 50um core diameter multimode fiber.
Center reinforcement: FRP or FRP with PE pad

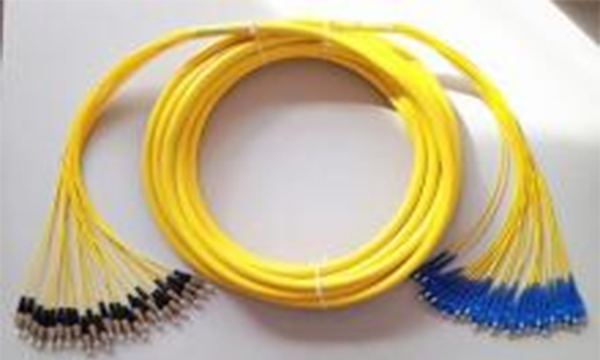

Branch Patch Cords

Provide OM1, OM2, OM3, OM4, and G.652D (OS1/OS2) G.657A1 fiber types
Connector SC LC ST FC
Standard 4, 6, 8, 12, and 24 cores (with a maximum of 144 fibers available)
LSZH, OFNP, OFNR cable sheath
All standard connections available

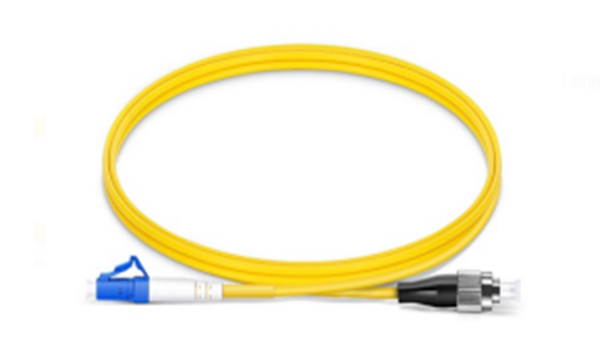

Single Mode Patch Cords

2.0mm narrow key connectors at both ends
Various schemes can be customized: SC/FC/ST/LC/MPO
Low insertion loss, high return loss
3 types of pin end faces: PC/UPC/APC
Durability: 1000 times
Cable materials comply with OFNR OFNP standards
Complies with Rosh6 standards
Includes two dust covers

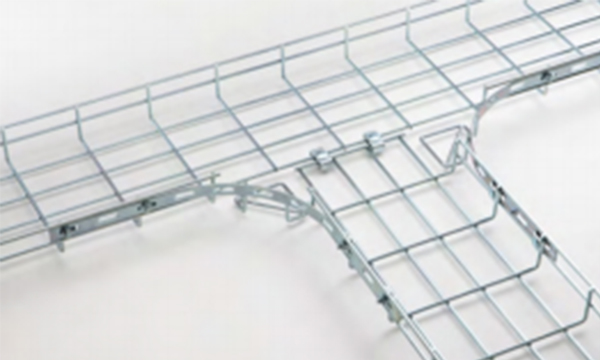

Cable Racking

Flexible and fast installation; It can be flexibly applied to integrated wiring systems and is suitable for upper and lower wiring of wiring bridges; The self weight of the wire mesh bridge is only 1/5 of that of other traditional bridges; Stronger loading capacity; Better heat dissipation and longer cable life.
Width: 40-300mm
Length: maximum 6000mm
Side rail height: 50-150mm

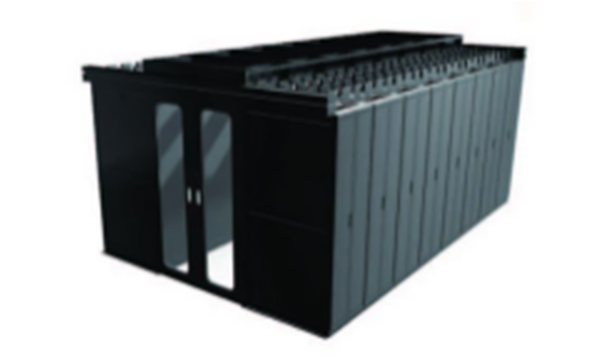

Micro Module Data Center

Improve the efficiency of IT resource utilization in data centers, reduce functionality, and simplify the operation and maintenance of data centers.
Type: Rack Mount
Color: Customized
Material: SPCC cold rolled steel
Installation: Floor standing
Protection level: IP20/IP54/IP65
Application: Data Center
Cabinet standard: customized

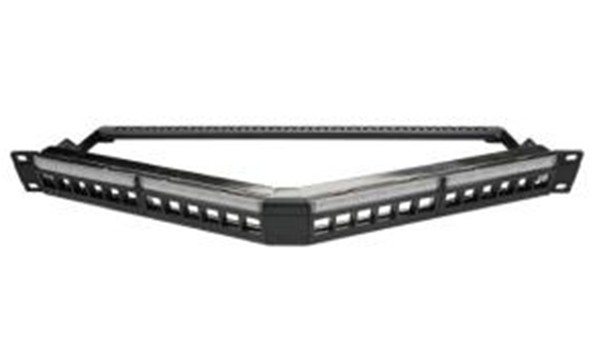

24 Empty Patch Panels

Adopting modular design, it meets the installation requirements of various plug-in modules, suitable for interaction and termination between devices, and compatible with 19 inch equipment racks and cabinets. Durable and corrosion-resistant phosphor bronze DC ensures over 250 terminations. All ports have labels on the front end and a cable manager on the back, which effectively guides the cables to the end points.

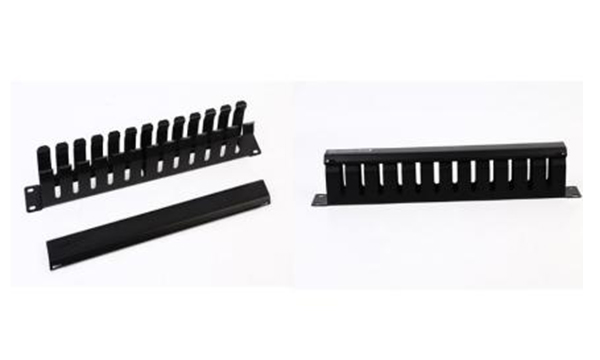

Cable Management

Cable management based on ISO/IEC 11801, TIA/EIA 568, YD/T926.3-2001 standards, and exceeding these standards.
Can be packaged in a 19 inch standard cabinet with various specifications, such as 12 ports and 24 ports.
Can connect 22, 24, and 26AWG (0.4 to 0.6mm) network cables.
Metal plate, corrosion-resistant steel.
A label box on the top of the panel.

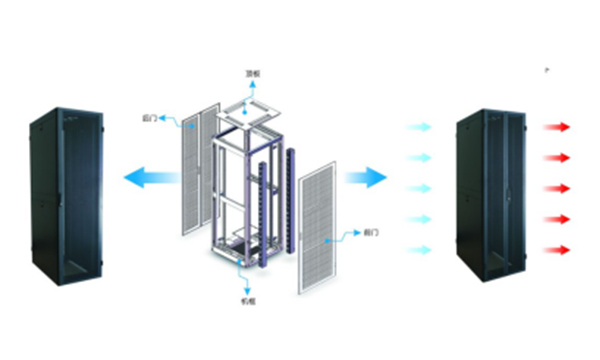

Network Cabinet

The cabinet is a 19 inch standard high-strength cabinet with a capacity of 42U. Cold rolled steel plate, with a thickness of 1.2mm or more, spraying plastics, rust proof, waterproof, and anti-corrosion.
Customizable according to customer requirements.

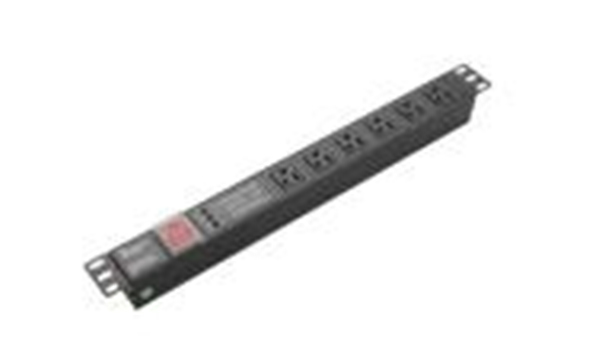

Rack Mounted PDU

Rated input voltage: 250V AC
Cable specification: H05VV-F3G 1.5 mm²
Plug type: DIN4944016A plug
Maximum input current: 16A
Shell material: 1U aluminum alloy material.
Product size: L x W x H=482.6X44.4X44.4 mm (19 inches)
Socket system: new national standards for five holes, 16A national standards, etc
Maximum power: 4000W
Internal connection line method: Internal 1.5mm² RV flexible copper strip type.

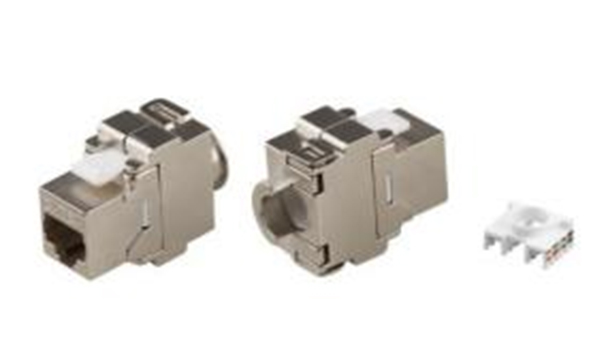

Cat6A FTP Keystone Jack

A type of keystone jack module that is used in copper cabling and networking.
Provide exceptional performance required to support extremely high-speed applications, including 10-Gigabit Ethernet.
The module can be fully shielded.
Easy to install.

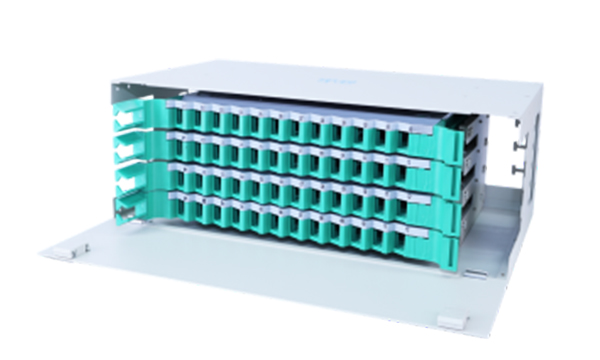

ODF Subframe Unit

Functions such as fiber optic cable termination, fiber optic wiring, fiber optic scheduling, and tail fiber excess length storage.
It can be installed independently in a 19U standard cabinet.
Adopting a stacked 12 core integrated melt fiber tray.
Suitable for termination of various structural optical cables.
All sizes can be customized according to customer requirements.
