School Solution

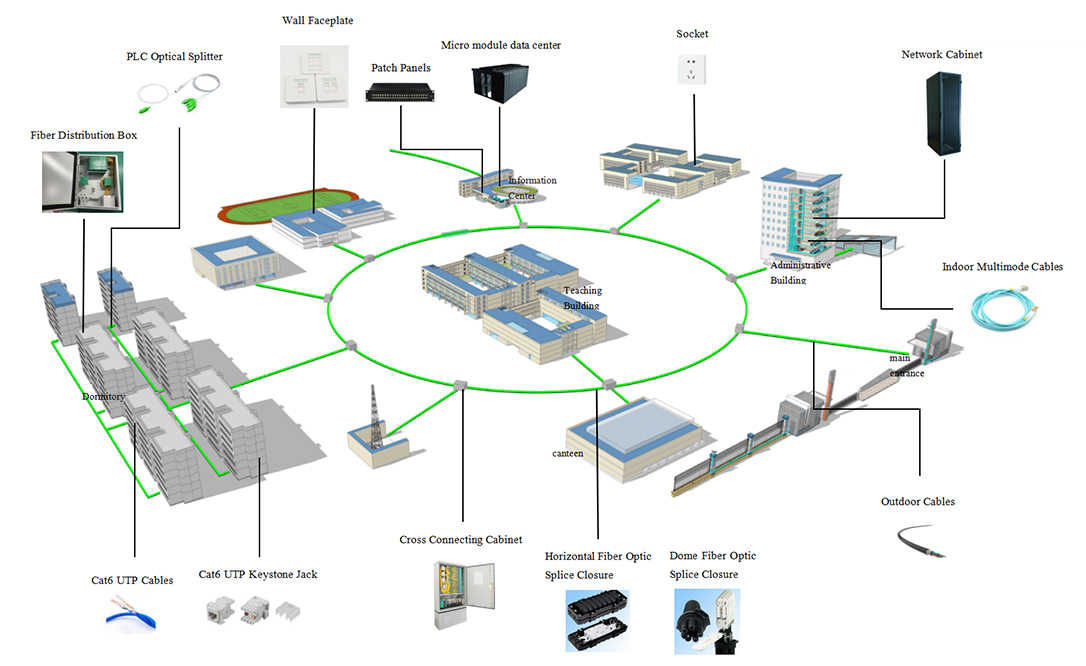

School buildings refer to buildings in regular full-time higher education institutions, senior high schools, senior vocational schools, junior high schools, primary schools, and kindergartens. The wiring system should meet the needs of various schools in terms of teaching nature, scale, management methods, and service objects. Should provide basic guarantees for an efficient teaching, research, office, and learning environment. The buildings of a school have a variety of functions, including teaching buildings, gyms, canteens, libraries, activity centers, and student dormitories. Most campuses occupy a large area, so comprehensive cabling should radiate from the school's information center as the central point of the wiring network to various buildings. It is the overall cabling of a building group, and more importantly, the construction of the backbone fiber optic network of the campus network. From the perspective of pipelines and wiring, Tangpin suggests adopting a proprietary school comprehensive wiring solution that includes backbone and distribution, and then extends to the desktop.However, the location and quantity of information points in school buildings, as well as the level of wiring systems, should be considered for different scenarios and different settings. At the same time, the determination of the number of information points cannot be based solely on the building area. Of course, if users have special needs, Tangpin has the most complete comprehensive wiring product line to provide customized end-to-end full link solutions.

Main Products

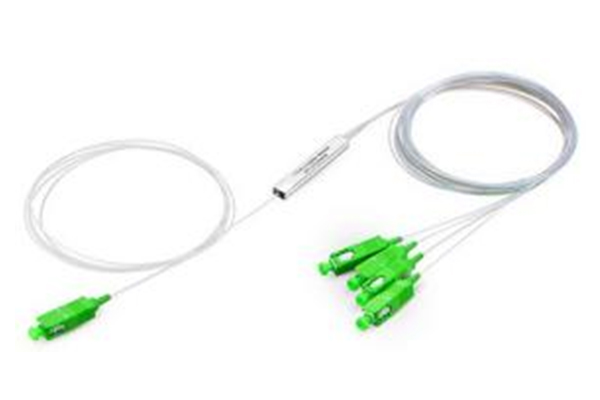

PLC Optical Splitter

Low insertion loss, Low PDL
Wide working wavelength: from 1260nm to 1650nm.
Excellent environmental and mechanical stability.
Fiber type: G657A or customer specified
Packaging: Steel pipe or ABS
Customization according to customer needs

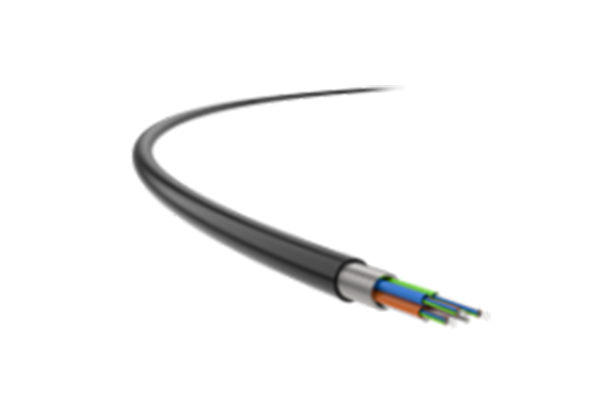

Outdoor Cables

GYTA, outdoor optical cable, filled structure, aluminum polyethylene bonded sheath.
GYTS, outdoor optical cable, metallic reinforcement, steel polyene bonded sheath.

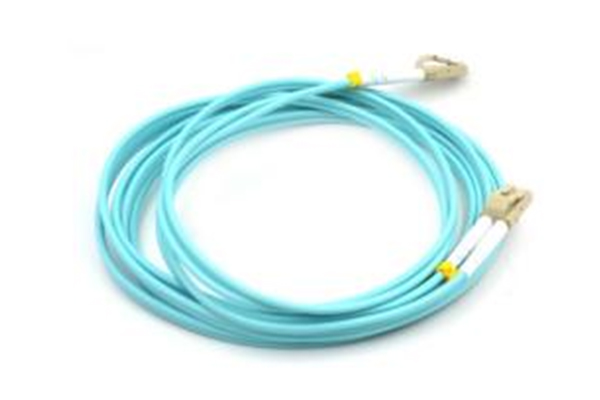

Indoor Multimode Cables

Indoor optical cable, non-metallic reinforcement, tight sleeve optical fiber, flame retardant polyolefin sheathed optical cable, 850nm laser optimized 50um core diameter multimode fiber.
Center reinforcement: FRP or FRP with PE pad

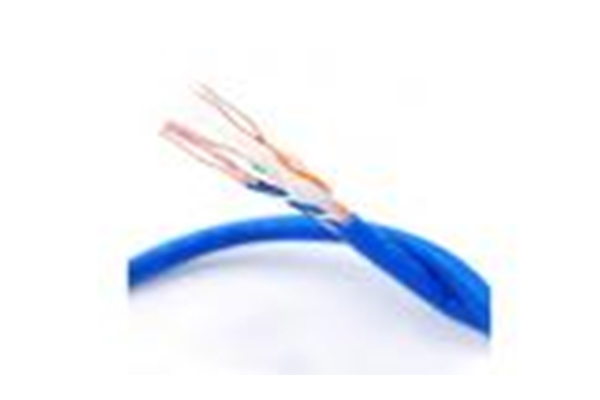

Cat6A UTP Cables

Unshielded, twisted pair, CM/LSZH cable. The conductor material is solid bare copper, the cable diameter is 23AWG, the insulation tensile strength is greater than 16MPa, and the sheath tensile strength is greater than 13.5MPa. The test can reach above 250HMZ.

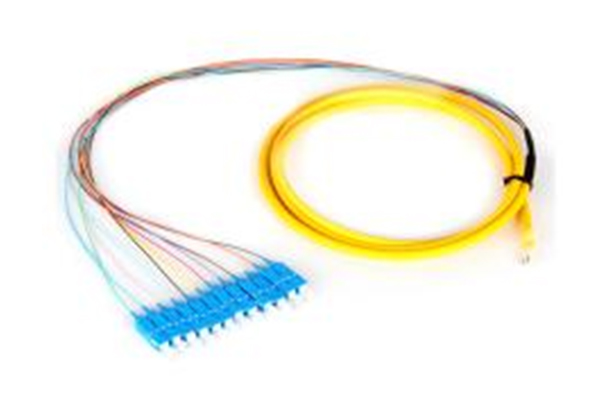

Fiber Pigtail

Compact design, low insertion loss and high return loss.
Complies with ITU-T G.657A or G.652D, etc.
High reliability, wide wavelength range, and wide operating temperature range.
Provide single mode (9/125) or multimode (50/125 or 62.5/125) optical fibers, with simplex or duplex connectors.
Customizable configuration.

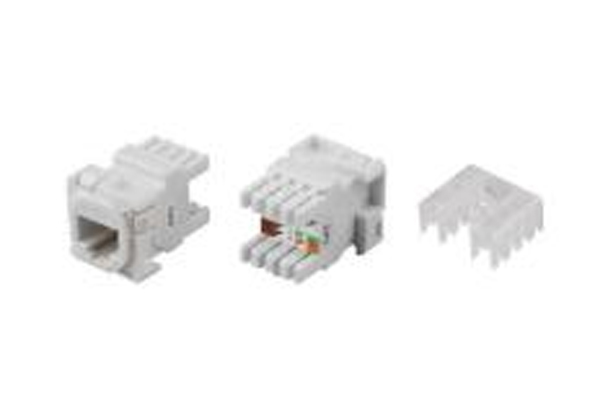

Cat6 UTP Keystone Jack

A type of keystone jack module that is used in copper cabling and networking.
Provide exceptional performance required to support extremely high-speed applications, including 10-Gigabit Ethernet.
The module can be fully shielded.
Easy to install.

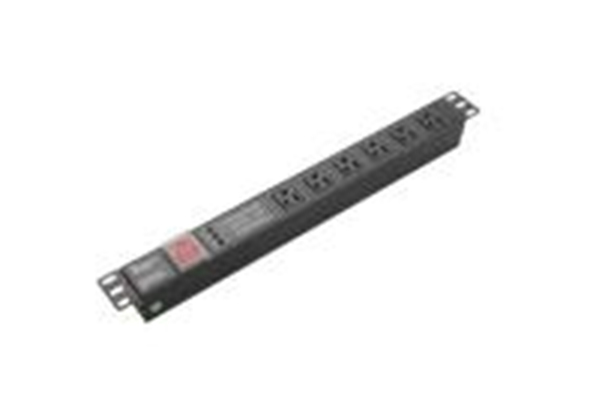

Rack Mounted PDU

Rated input voltage: 250V AC
Cable specification: H05VV-F3G 1.5 mm²
Plug type: DIN4944016A plug
Maximum input current: 16A
Shell material: 1U aluminum alloy material.
Product size: L x W x H=482.6X44.4X44.4 mm (19 inches)
Socket system: new national standards for five holes, 16A national standards, etc
Maximum power: 4000W
Internal connection line method: Internal 1.5mm² RV flexible copper strip type.

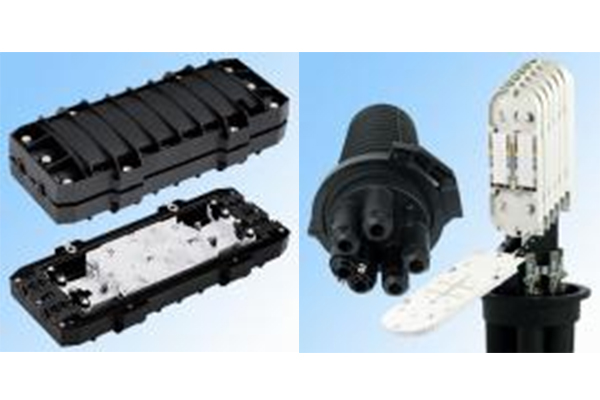

Fiber Optic Splice Closure

Mechanical seals and heat shrink seals are used for the box and cable ports, respectively. The protection level is IP68. Suitable for any type of cable, can be used for various connections, meeting the testing requirements of cable torque, tension, pressure, and bending. Easy to operate and has high practical value.

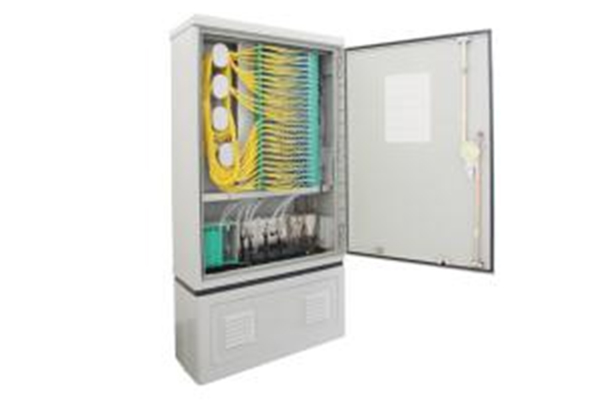

Cross Connecting Cabinet

Optional materials for stainless steel and SMC
Protect the door from external influences through hidden hinges
High corrosion resistance, reliable and waterproof, rust proof
Electrostatic epoxy powder painting surface treatment
Protection level reaches IP65
Comprehensive front operation, easy to complete cable routing design
Suitable for assembly of plug-in modular PLC splitters
All attributes can be customized

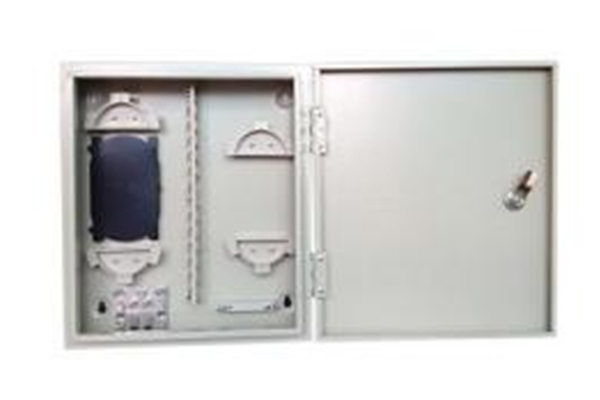

Fiber Distribution Box

Connector type: SC/FC/LC/ST
Material: cold rolled steel/stainless steel
Color: White/Black/Grey/Other
Size: Customizable according to customer needs.
Equipped with a stacked fusion tray, easy to open and easy to install and maintain the circuit. The box is equipped with reliable optical cables, tail cable introduction, fixation, and grounding devices.

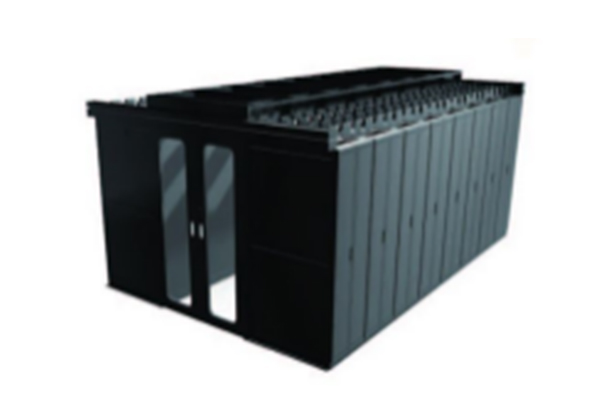

Micro module data center

Improve the efficiency of IT resource utilization in data centers, reduce functionality, and simplify the operation and maintenance of data centers.
Type: Rack Mount
Color: Customized
Material: SPCC cold rolled steel
Installation: Floor standing
Protection level: IP20/IP54/IP65
Application: Data Center
Cabinet standard: customized

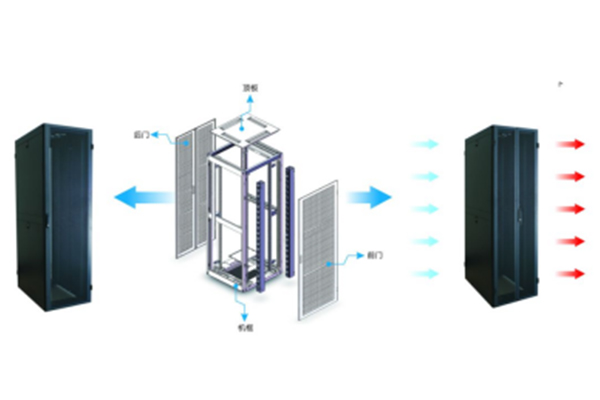

Network Cabinet

The cabinet is a 19 inch standard high-strength cabinet with a capacity of 42U. Cold rolled steel plate, with a thickness of 1.2mm or more, spraying plastics, rust proof, waterproof, and anti-corrosion.
Customizable according to customer requirements.

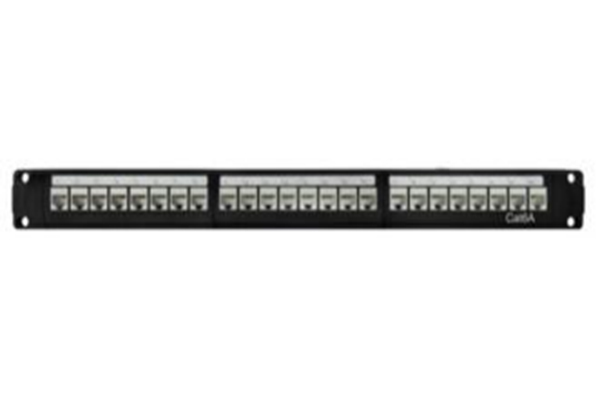

Patch Panels

Adopting modular design, it meets the installation requirements of various plug-in modules, suitable for interaction and termination between devices, and compatible with 19 inch equipment racks and cabinets. Durable and corrosion-resistant phosphor bronze DC ensures over 250 terminations. All ports have labels on the front end and a cable manager on the back, which effectively guides the cables to the end points.

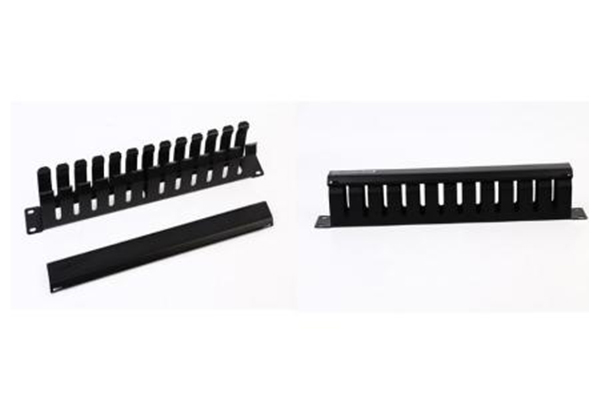

Cable Management

Cable management based on ISO/IEC 11801, TIA/EIA 568, YD/T926.3-2001 standards, and exceeding these standards.
Can be packaged in a 19 inch standard cabinet with various specifications, such as 12 ports and 24 ports.
Can connect 22, 24, and 26AWG (0.4 to 0.6mm) network cables.
Metal plate, corrosion-resistant steel.
A label box on the top of the panel.

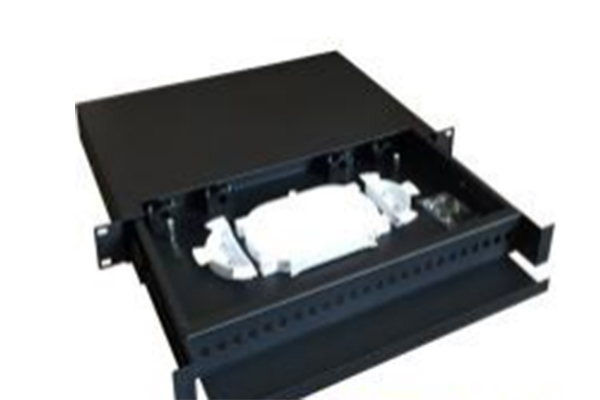

Fiber Optic Terminal Box

Connector type: SC/FC/LC/ST
Material: cold rolled steel/stainless steel
Color: White/Black/Grey/Other
Size: Customizable according to customer needs.
Equipped with a stacked fusion tray, easy to open, can be removed and operated, convenient for line installation and maintenance.
The optical access equipment of FTTX, can achieve the connection and distribution of backbone cables and user cables. Can be used for the fusion and distribution of optical fibers.

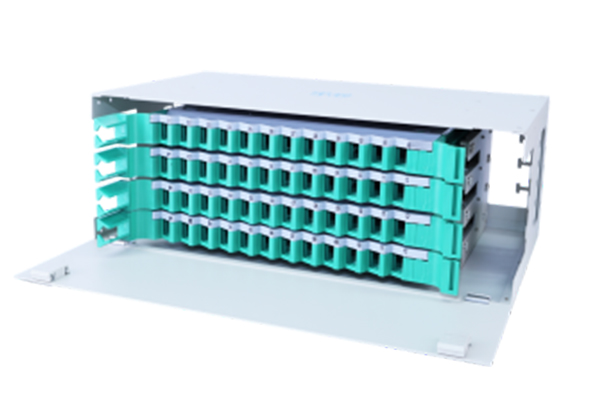

ODF Subframe Unit

Functions such as fiber optic cable termination, fiber optic wiring, fiber optic scheduling, and tail fiber excess length storage.
It can be installed independently in a 19U standard cabinet.
Adopting a stacked 12 core integrated melt fiber tray.
Suitable for termination of various structural optical cables.
All sizes can be customized according to customer requirements.

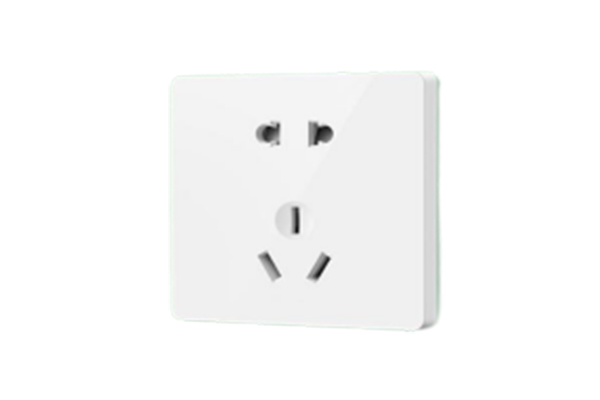

Socket

220V power socket, equipped with two 2/3-hole national standard sockets, selected with high-quality elastic phosphorus bronze sockets and nickel plated treatment, with good conductivity. The plastic body of the socket terminal is made of ABS or PBT material, which meets environmental requirements. The shell is made of high-density ABS material, with high gloss, good flexibility, impact resistance and aging resistance.

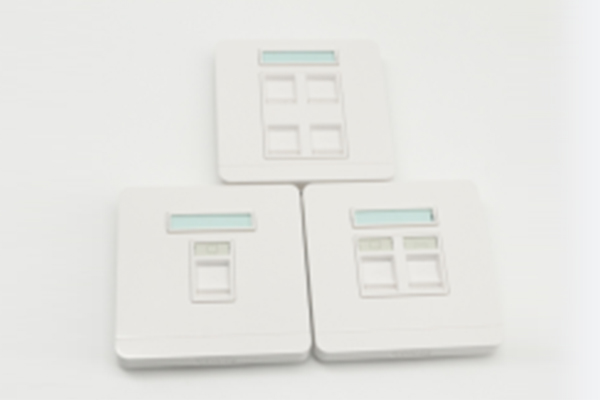

Wall Faceplate

Using PC bulletproof adhesive material. 86 international standard size design, 6mm ultra-thin appearance. Support the installation of multiple multimedia module frameworks, compatible with multi-functional integration such as RJ45 and fiber optic.
