FTTX Solution

Fiber to the Home (FTTH) is a fiber to user access network solution specified in the Code for design of communication engineering for fiber to the home in residential districts and residential buildings. It has the advantages of symmetrical high bandwidth, high stability, high reliability, anti-interference, environmental protection, and pollution-free, reflecting the development and direction of fiber to user access networks today and in the future.Tangpin can provide various fiber optic solutions to users, including conventional, weak current cables, indoor and outdoor optical cables, fiber optic quick connectors, fiber optic distribution boxes, fiber optic splice closure, and other products. The CAT6 unshielded indoor cable launched by Tangpin is suitable for high-quality network signal transmission in the community security monitoring system. In addition, Tangpin's micro module data center solution lays a solid foundation for building a smart community. Of course, if users have special needs, Tangpin has the most complete fiber optic cable to the user's local product line, which can provide customized end-to-end full link solutions for them.

Main Products

PLC Optical Splitter

Low insertion loss, Low PDL
Wide working wavelength: from 1260nm to 1650nm.
Excellent environmental and mechanical stability.
Fiber type: G657A or customer specified
Packaging: Steel pipe or ABS
Customization according to customer needs

Branch Patch Cords

Provide OM1, OM2, OM3, OM4, and G.652D (OS1/OS2) G.657A1 fiber types
Connector SC LC ST FC
Standard 4, 6, 8, 12, and 24 cores (with a maximum of 144 fibers available)
LSZH, OFNP, OFNR cable sheath
All standard connections available

Indoor Multimode Cables

Indoor optical cable, non-metallic reinforcement, tight sleeve optical fiber, flame retardant polyolefin sheathed optical cable, 850nm laser optimized 50um core diameter multimode fiber.
Center reinforcement: FRP or FRP with PE pad

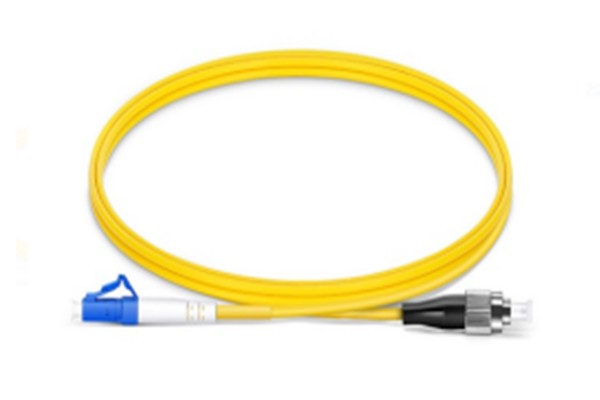

Single Mode Patch Cords

2.0mm narrow key connectors at both ends
Various schemes can be customized: SC/FC/ST/LC/MPO
Low insertion loss, high return loss
3 types of pin end faces: PC/UPC/APC
Durability: 1000 times
Cable materials comply with OFNR OFNP standards
Complies with Rosh6 standards
Includes two dust covers

Fiber Pigtail

Compact design, low insertion loss and high return loss.
Complies with ITU-T G.657A or G.652D, etc.
High reliability, wide wavelength range, and wide operating temperature range.
Provide single mode (9/125) or multimode (50/125 or 62.5/125) optical fibers, with simplex or duplex connectors.
Customizable configuration.

Cat6A UTP Cables

Unshielded, twisted pair, CM/LSZH cable. The conductor material is solid bare copper, the cable diameter is 23AWG, the insulation tensile strength is greater than 16MPa, and the sheath tensile strength is greater than 13.5MPa. The test can reach above 250HMZ.

Outdoor Cables

GYTA, outdoor optical cable, filled structure, aluminum polyethylene bonded sheath.
GYTS, outdoor optical cable, metallic reinforcement, steel polyene bonded sheath.


Fiber Optic Splice Closure

Mechanical seals and heat shrink seals are used for the box and cable ports, respectively. The protection level is IP68. Suitable for any type of cable, can be used for various connections, meeting the testing requirements of cable torque, tension, pressure, and bending. Easy to operate and has high practical value.

Cross Connecting Cabinet

Optional materials for stainless steel and SMC
Protect the door from external influences through hidden hinges
High corrosion resistance, reliable and waterproof, rust proof
Electrostatic epoxy powder painting surface treatment
Protection level reaches IP65
Comprehensive front operation, easy to complete cable routing design
Suitable for assembly of plug-in modular PLC splitters
All attributes can be customized

Fiber Distribution Box

Connector type: SC/FC/LC/ST
Material: cold rolled steel/stainless steel
Color: White/Black/Grey/Other
Size: Customizable according to customer needs.
Equipped with a stacked fusion tray, easy to open and easy to install and maintain the circuit. The box is equipped with reliable optical cables, tail cable introduction, fixation, and grounding devices.

Wall Mounted Cabinet

Exquisite design and exquisite craftsmanship.
Equipped with casters or feet, it can be easily installed on walls or floors.
Load bearing: 60KG.
The top and bottom wiring channels may be closed.
Movable front door and side panel, easy to install and maintain.
Degreasing, acid washing, phosphorus, water washing, electrostatic powder coating, in accordance with ROHS standards.

Network Cabinet

The cabinet is a 19 inch standard high-strength cabinet with a capacity of 42U. Cold rolled steel plate, with a thickness of 1.2mm or more, spraying plastics, rust proof, waterproof, and anti-corrosion.
Customizable according to customer requirements.

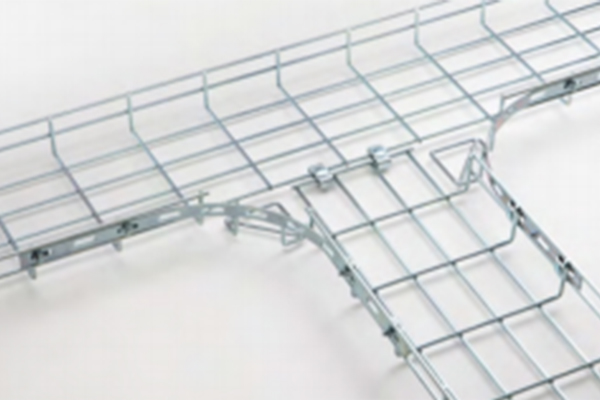

Cable Racking

Width: 40-300mm
Length: maximum 6000mm
Side rail height: 50-150mm
Flexible and fast installation
It can be flexibly applied to integrated wiring systems and is suitable for upper and lower wiring of wiring bridges
The self weight of the wire mesh bridge is only 1/5 of that of other traditional bridges
Stronger loading capacity
Better heat dissipation and longer cable life

Cable Management

Cable management based on ISO/IEC 11801, TIA/EIA 568, YD/T926.3-2001 standards, and exceeding these standards.
Can be packaged in a 19 inch standard cabinet with various specifications, such as 12 ports and 24 ports.
Can connect 22, 24, and 26AWG (0.4 to 0.6mm) network cables.
Metal plate, corrosion-resistant steel.
A label box on the top of the panel.

24 Empty Patch Panels

Adopting modular design, it meets the installation requirements of various plug-in modules, suitable for interaction and termination between devices, and compatible with 19 inch equipment racks and cabinets. Durable and corrosion-resistant phosphor bronze DC ensures over 250 terminations. All ports have labels on the front end and a cable manager on the back, which effectively guides the cables to the end points.

ODF Subframe Unit

Functions such as fiber optic cable termination, fiber optic wiring, fiber optic scheduling, and tail fiber excess length storage.
It can be installed independently in a 19U standard cabinet.
Adopting a stacked 12 core integrated melt fiber tray.
Suitable for termination of various structural optical cables.
All sizes can be customized according to customer requirements.

Fiber Optic Terminal Box

Connector type: SC/FC/LC/ST
Material: cold rolled steel/stainless steel
Color: White/Black/Grey/Other
Size: Customizable according to customer needs.
Equipped with a stacked fusion tray, easy to open, can be removed and operated, convenient for line installation and maintenance.
The optical access equipment of FTTX, can achieve the connection and distribution of backbone cables and user cables. Can be used for the fusion and distribution of optical fibers.

Rack Mounted PDU

Rated input voltage: 250V AC
Cable specification: H05VV-F3G 1.5 mm²
Plug type: DIN4944016A plug
Maximum input current: 16A
Shell material: 1U aluminum alloy material.
Product size: L x W x H=482.6X44.4X44.4 mm (19 inches)
Socket system: new national standards for five holes, 16A national standards, etc
Maximum power: 4000W
Internal connection line method: Internal 1.5mm² RV flexible copper strip type.

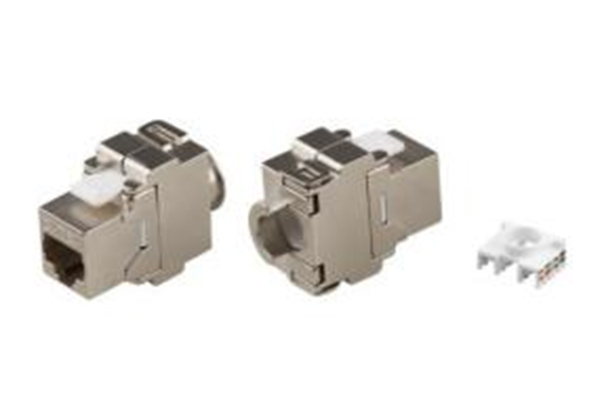

Keystone Jack

A type of keystone jack module that is used in copper cabling and networking.
Provide exceptional performance required to support extremely high-speed applications, including 10-Gigabit Ethernet.
The module can be fully shielded.
Easy to install.

Wall Faceplate

Using PC bulletproof adhesive material. 86 international standard size design, 6mm ultra-thin appearance. Support the installation of multiple multimedia module frameworks, compatible with multi-functional integration such as RJ45 and fiber optic.
