Urban Complex Solution

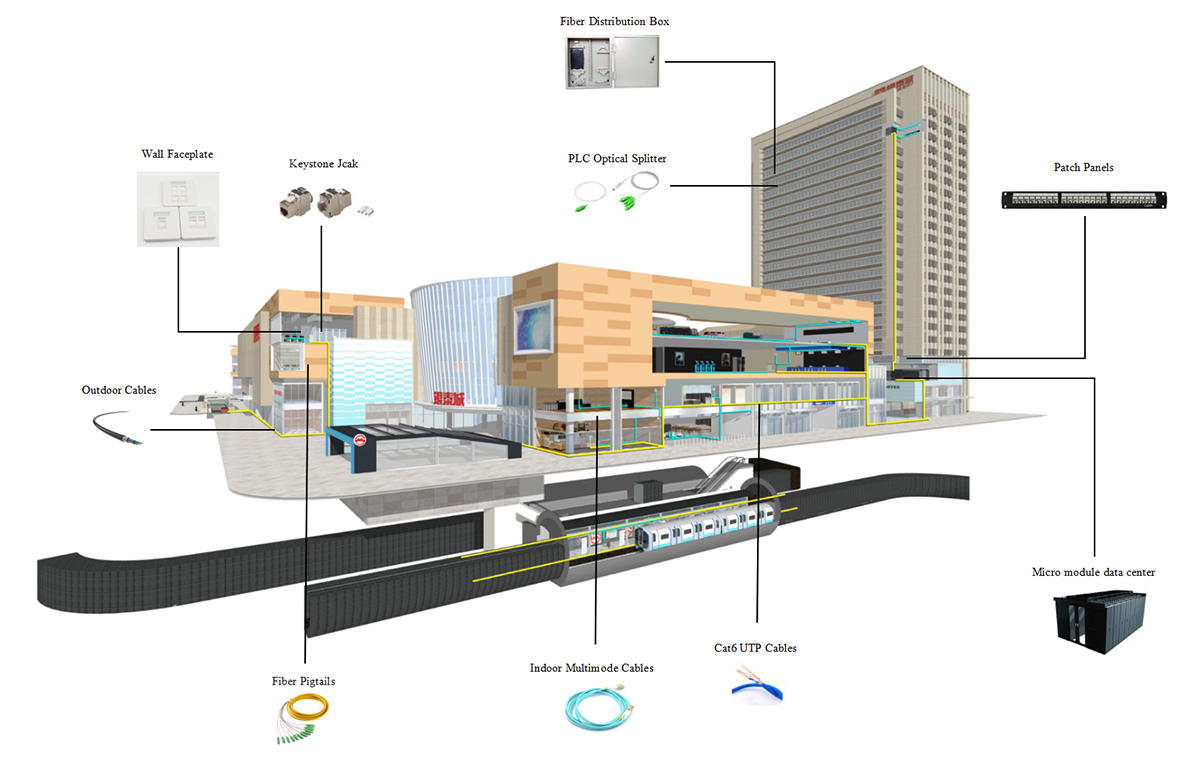

Urban complex, as the name suggests, is a combination of three or more urban living spaces in a city, including commerce, office, residence, hotels, exhibitions, catering, entertainment, and transportation. At the same time, it establishes an interdependent and mutually beneficial dynamic relationship between each part, forming a multi-functional and efficient complex, which is also an inevitable trend in the development of large cities nowadays. To ensure the efficient operation of the urban complex, as the physical layer infrastructure for information transmission: the comprehensive cabling system, Tangpin suggests adopting solutions such as fiber optic to user units and gigabit to desktop (Category 6 UTP unshielded)+10 Gigabit multimode (OM3) to achieve high-speed information transmission between various components of the urban complex. Of course, if users have special needs, Tangpin has the most complete comprehensive cabling product line to provide customized end-to-end full link solutions.

Low insertion loss, Low PDL
Wide working wavelength: from 1260nm to 1650nm.
Excellent environmental and mechanical stability.
Fiber type: G657A or customer specified
Packaging: Steel pipe or ABS
Customization according to customer needs

2.0mm narrow key connectors at both ends
Various schemes can be customized: SC/FC/ST/LC/MPO
Low insertion loss, high return loss
3 types of pin end faces: PC/UPC/APC
Durability: 1000 times
Cable materials comply with OFNR OFNP standards
Complies with Rosh6 standards
Includes two dust covers

Indoor optical cable, non-metallic reinforcement, tight sleeve optical fiber, flame retardant polyolefin sheathed optical cable, 850nm laser optimized 50um core diameter multimode fiber.
Center reinforcement: FRP or FRP with PE pad

Compact design, low insertion loss and high return loss.
Complies with ITU-T G.657A or G.652D, etc.
High reliability, wide wavelength range, and wide operating temperature range.
Provide single mode (9/125) or multimode (50/125 or 62.5/125) optical fibers, with simplex or duplex connectors.
Customizable configuration.

Unshielded, twisted pair, CM/LSZH cable. The conductor material is solid bare copper, the cable diameter is 23AWG, the insulation tensile strength is greater than 16MPa, and the sheath tensile strength is greater than 13.5MPa. The test can reach above 250HMZ.

GYTA, outdoor optical cable, filled structure, aluminum polyethylene bonded sheath.
GYTS, outdoor optical cable, metallic reinforcement, steel polyene bonded sheath.



Connector type: SC/FC/LC/ST
Material: cold rolled steel/stainless steel
Color: White/Black/Grey/Other
Size: Customizable according to customer needs.

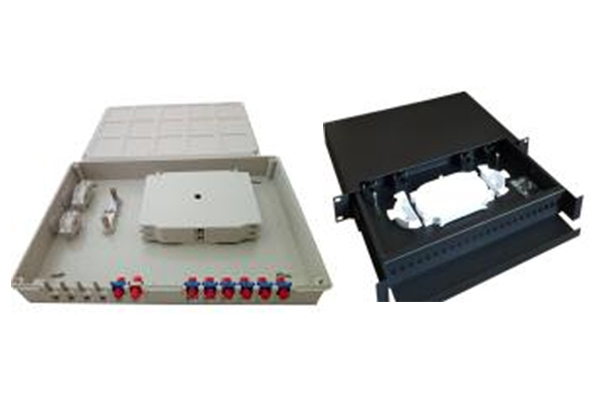

Equipped with a stacked fusion tray, easy to open and easy to install and maintain the circuit. The box is equipped with reliable optical cables, tail cable introduction, fixation, and grounding devices.

Connector type: SC/FC/LC/ST
Material: cold rolled steel/stainless steel
Color: White/Black/Grey/Other
Size: Customizable according to customer needs.
Equipped with a stacked fusion tray, easy to open, can be removed and operated, convenient for line installation and maintenance.
The optical access equipment of FTTX, can achieve the connection and distribution of backbone cables and user cables. Can be used for the fusion and distribution of optical fibers.

Functions such as fiber optic cable termination, fiber optic wiring, fiber optic scheduling, and tail fiber excess length storage.
It can be installed independently in a 19U standard cabinet.
Adopting a stacked 12 core integrated melt fiber tray.
Suitable for termination of various structural optical cables.
All sizes can be customized according to customer requirements.

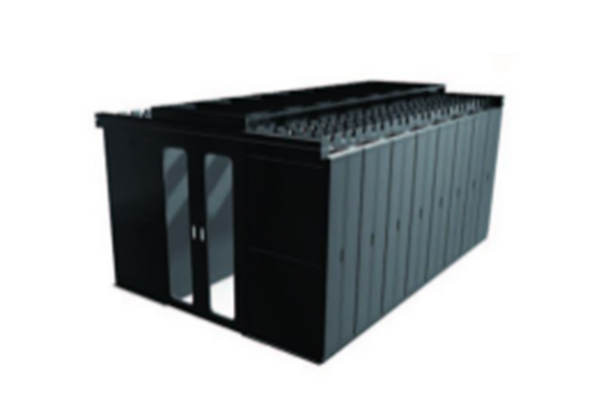

Improve the efficiency of IT resource utilization in data centers, reduce functionality, and simplify the operation and maintenance of data centers.
Type: Rack Mount
Color: Customized
Material: SPCC cold rolled steel
Installation: Floor standing
Protection level: IP20/IP54/IP65
Application: Data Center
Cabinet standard: customized

The cabinet is a 19 inch standard high-strength cabinet with a capacity of 42U. Cold rolled steel plate, with a thickness of 1.2mm or more, spraying plastics, rust proof, waterproof, and anti-corrosion.
Customizable according to customer requirements.

Adopting modular design, it meets the installation requirements of various plug-in modules, suitable for interaction and termination between devices, and compatible with 19 inch equipment racks and cabinets. Durable and corrosion-resistant phosphor bronze DC ensures over 250 terminations. All ports have labels on the front end and a cable manager on the back, which effectively guides the cables to the end points.

Rated input voltage: 250V AC
Cable specification: H05VV-F3G 1.5 mm²
Plug type: DIN4944016A plug
Maximum input current: 16A
Shell material: 1U aluminum alloy material.
Product size: L x W x H=482.6X44.4X44.4 mm (19 inches)
Socket system: new national standards for five holes, 16A national standards, etc
Maximum power: 4000W
Internal connection line method: Internal 1.5mm² RV flexible copper strip type.

A type of keystone jack module that is used in copper cabling and networking.
Provide exceptional performance required to support extremely high-speed applications, including 10-Gigabit Ethernet.
The module can be fully shielded.
Easy to install.

Using PC bulletproof adhesive material. 86 international standard size design, 6mm ultra-thin appearance. Support the installation of multiple multimedia module frameworks, compatible with multi-functional integration such as RJ45 and fiber optic.
