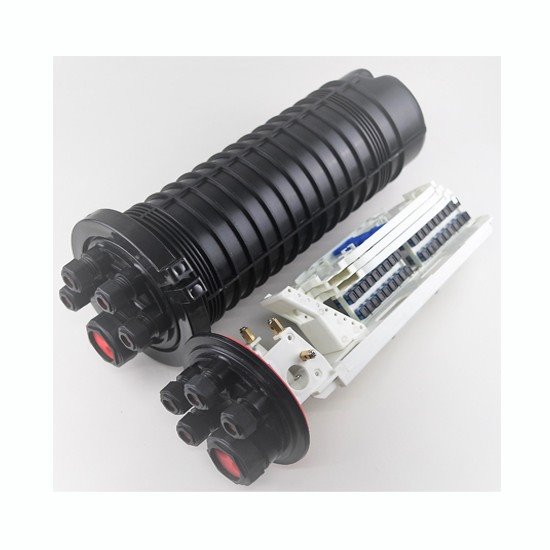

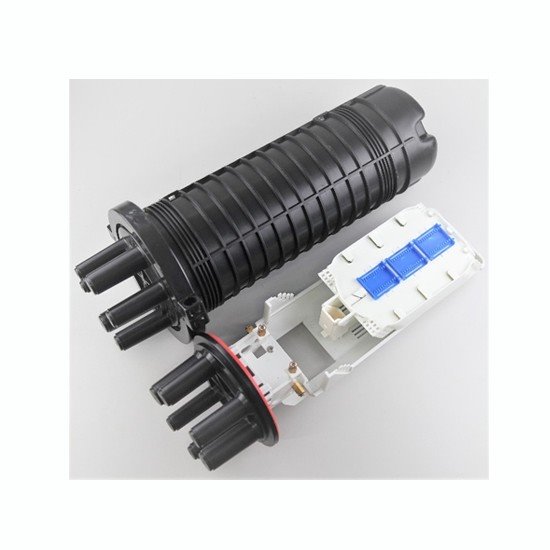

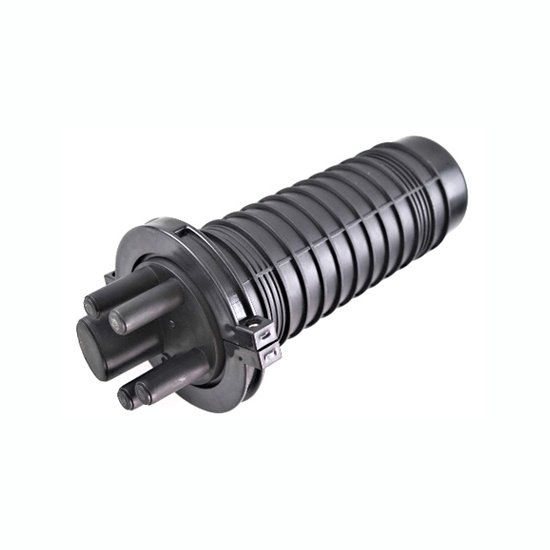

Dome Fiber Optic Splice Closure

Vertical type of fiber optic splice closures looks like a dome, thus they are also called dome fiber optic splice closure. They meet the same specification as the horizontal types, can be used for aerial, underground, man-hole, duct and pole mounting. As for dome type, according to the sealing ways, including shrinkable dome closure and mechanical dome closure. They provide a versatile solution for splicing and protecting outdoor fiber connections in a familiar dome form factor. The vertical fiber optic splice closure is used in CATV, telecommunications and fiber optic networks.

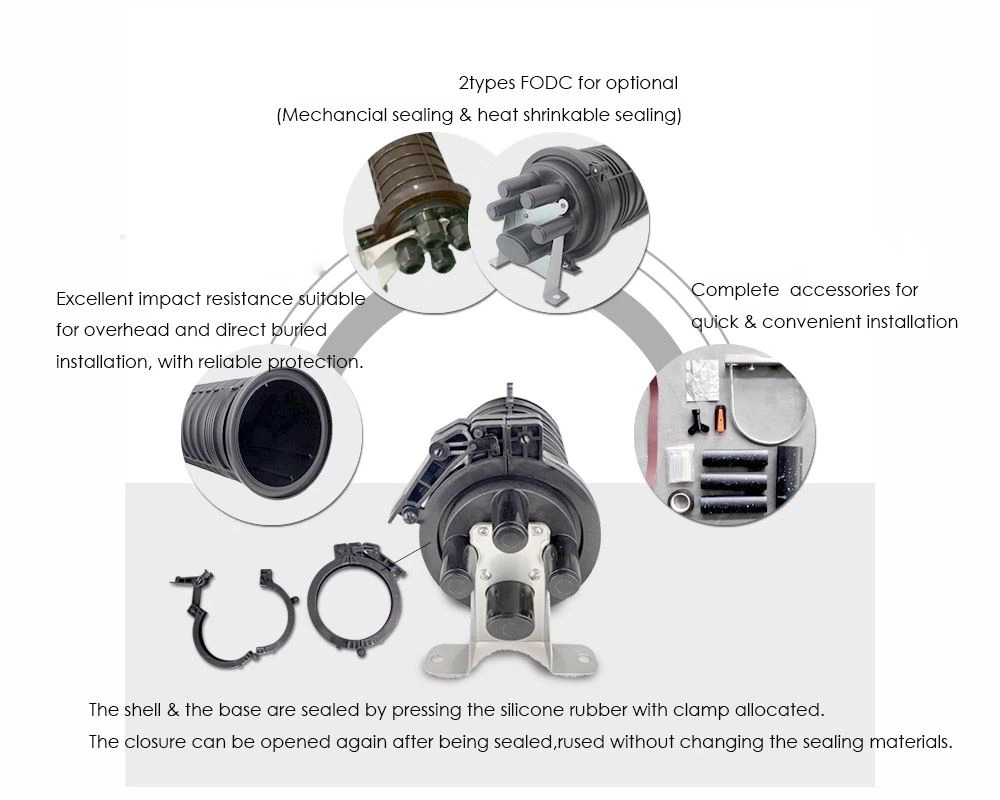

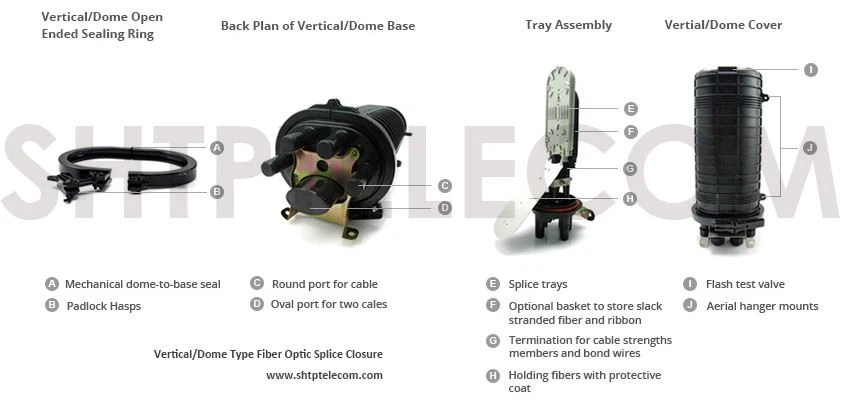

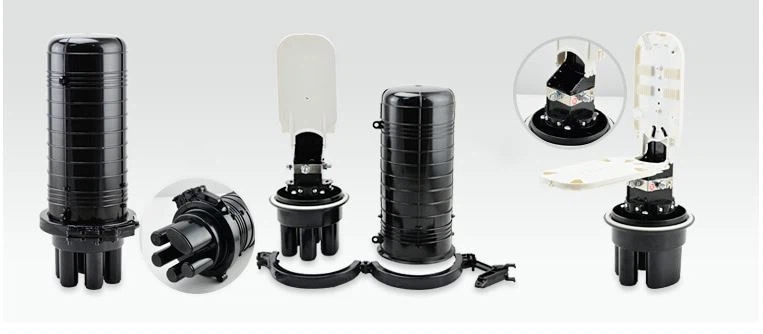

Structure

Features

• Base and dome sealed with clamp and O-ring system, which makes it easy for fiber management

• Base-to-dome seals on closure are mechanical and heat-shrinkable for ease of installation and reentry. No other sealing adhesive tape is needed

• Durable, water-proof, UV-resistant compact design

• Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular)

• Can be deployed in any environment (aerial, buried, hand hole, manhole)and in many applications(tap-off, expressed, branch, and repair)

• No special tools are needed to open the closure, and it can be opened and used repeatedly.

• All the metallic parts of the closures resist corrosion and are made of non-corrosive steel.

• Includes accessory kit subjection to air, pole and wall.

Technical Parameters

• Working Temperature: -40 degrees centigrade~+70 degrees centigrade

• Atmospheric Pressure: 70~150Kpa

• Axial Tension: >2000N/1min

• Stretching Resistance: 2500N/10 square centimetre(1min)

• Insulation resistance: >2*104MΩ

• Voltage Strength: 15KV/1min

• Pressure in the water: 50m/72hours

• Splice tray with optical taking-in radius≥ 40mm. Low optical loss.

Applications

• Branching and straight through joints

• Wall, pole or standing mount

• Suitable for all high speed fiber optic networks

• Multi-channel CWDM and DWDM (coarse and dense wavelength division multiplexed) networks

• Suitable for aerial, manhole, underground duct and direct burial applications , small volume but large capacity

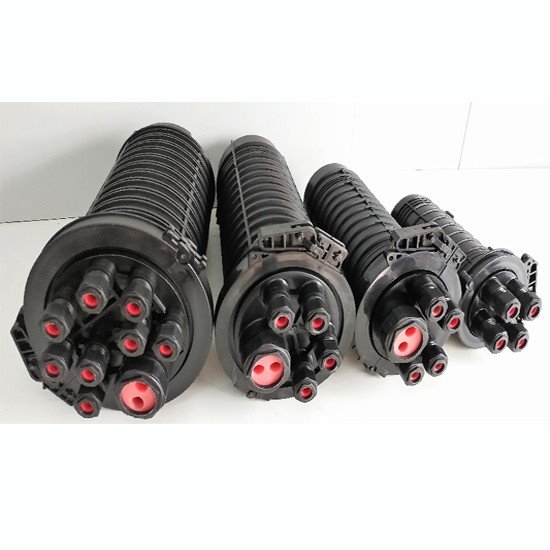

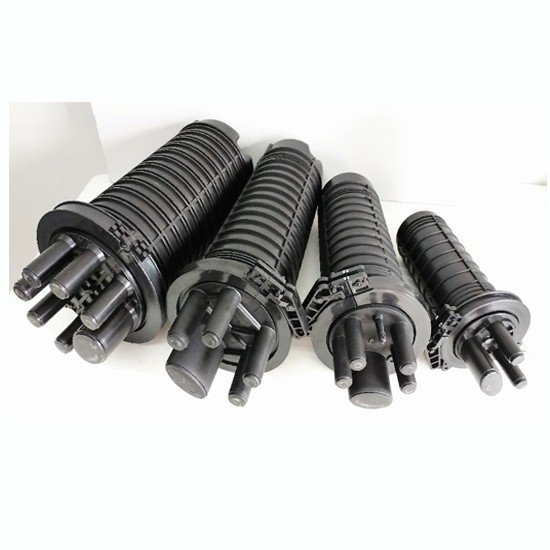

Ordering information

Sealing type: mechanical sealing or hot-shrinkable sealing

Ports: 5/6/7/8/9

Cable diameter: how many mm (depends on application)

Capacity: 12F/24F/36F/72F/96F/144F/288F/576F

Hot-shrinkable Sealing DR02A series

Hot-shrinkable Sealing DR01A Series

Hot-shrinkable Sealing DR05A Series

DR05A7

DR05A29

Hot-shrinkable Sealing DR06A Series

DR06A3

DR06A6

Mechancial sealing DM06A

Mechancial sealing DM02A5

Mechancial sealing DM05A7

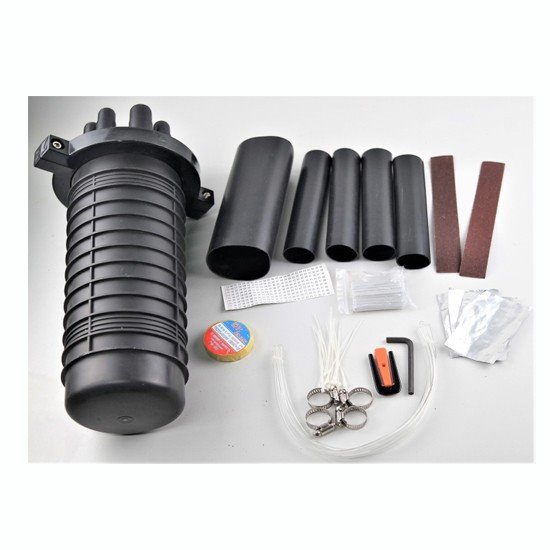

Fiber Optic Dome Closure Accessories
