Optical transceivers are key optoelectronic devices in fiber optic communication systems, responsible for converting between optical and electrical signals. They play a crucial role in modern communication networks, especially in areas such as data centers, telecommunications networks, Fiber to Home (FTTH), and high-speed data transmission.
Optical transceivers are key optoelectronic devices in fiber optic communication systems, responsible for converting between optical and electrical signals. They play a crucial role in modern communication networks, especially in areas such as data centers, telecommunications networks, Fiber to Home (FTTH), and high-speed data transmission.

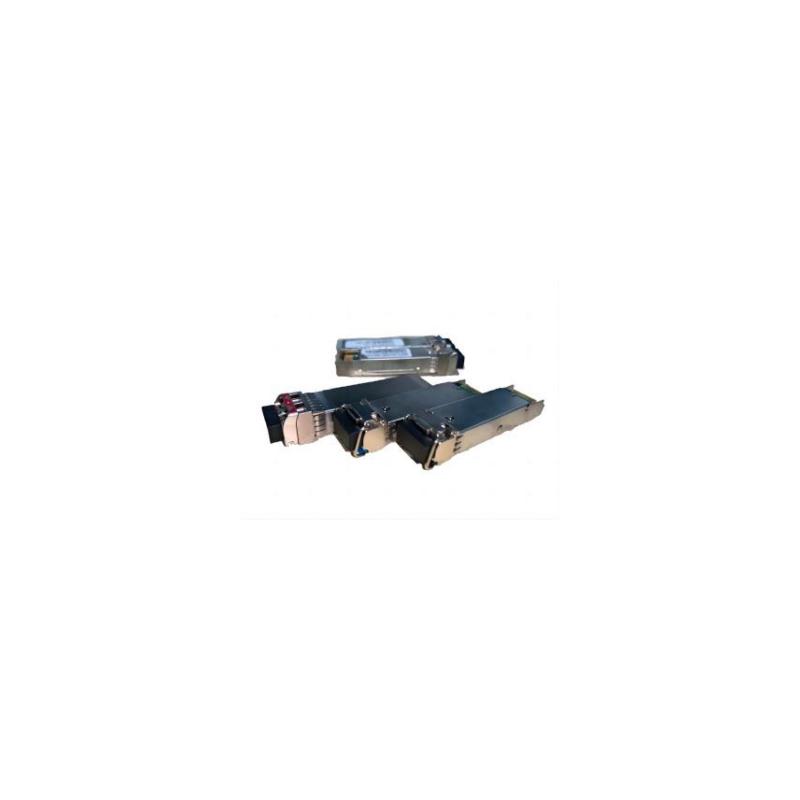

Optical Transceiver
The main function of the optical transceiver is to convert electrical signals into optical signals at the transmitting end and transmit them through optical fibers; At the receiving end, it converts the optical signal back into an electrical signal. This conversion process allows data to be transmitted over long distances and at high rates, while reducing signal attenuation and electromagnetic interference.
Optical transceivers typically consist of the following main components:
Transmitter Optical Subassembly: including lasers (such as DFB lasers, VCSEL, etc.), responsible for generating optical signals.
Receiver Optical Subassembly: including photodetectors (such as PIN photodiodes, APDs, etc.), used to detect optical signals and convert them into electrical signals.
Functional circuit: including driving circuit, amplification circuit, modulation and demodulation circuit, etc., used to control the generation and reception of optical signals.
Optical interface: used for connecting with optical fibers, usually including fiber optic connectors (such as LC, SC, MPO, etc.).
Applications
Internal server connections within the data center
long-distance fiber optic transmission
fiber optic backhaul links for wireless base stations
fiber optic access networks for households and enterprises.
| type | product description | sketch map |

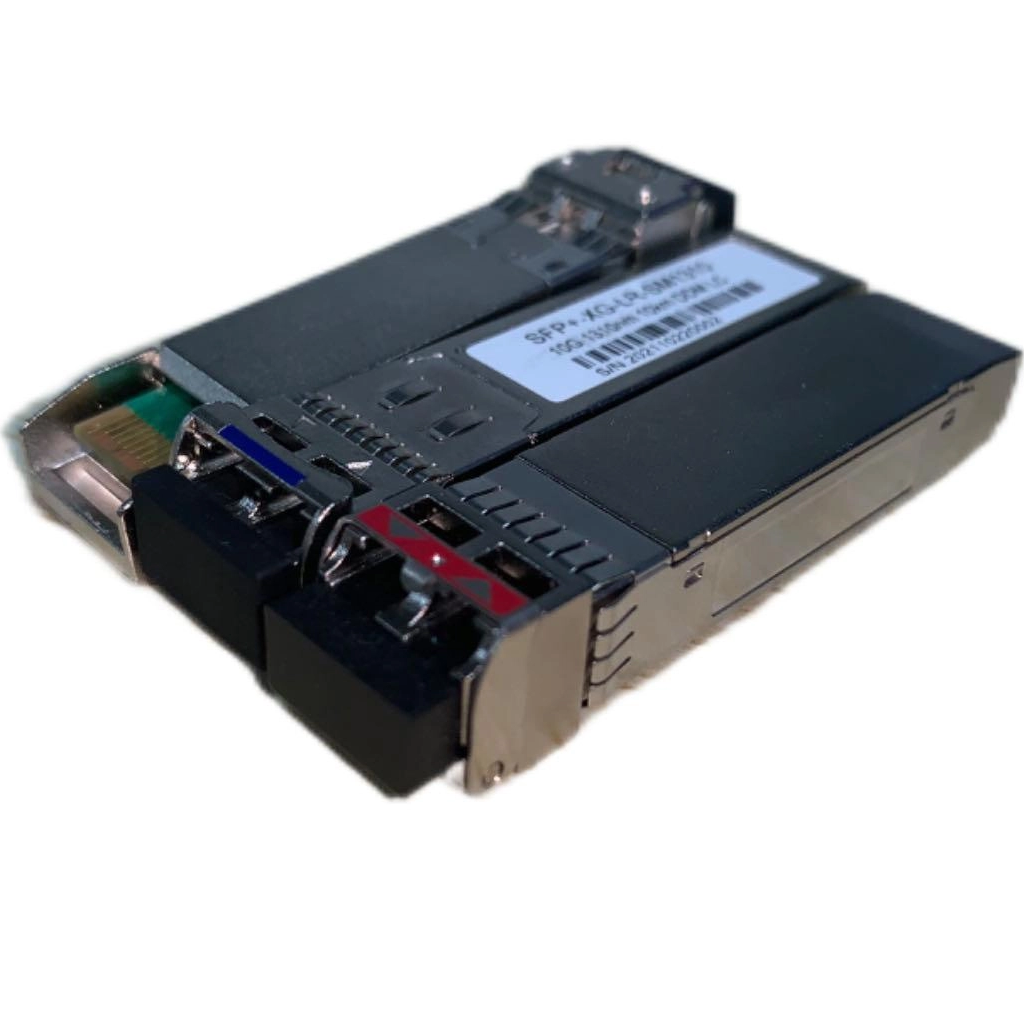

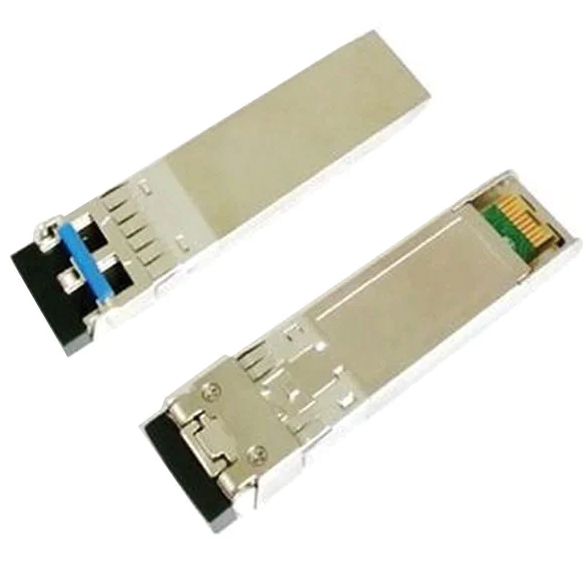

| 10G optical transceiver | 10G 850nm 300m SFP+ |  |
10G 1310nm 10km SFP+ | ||
FC optical transceiver | 16G 850nm 100m SFP28 | |
25G optical transceiver | 25G 1310nm 10km SFP28 | |

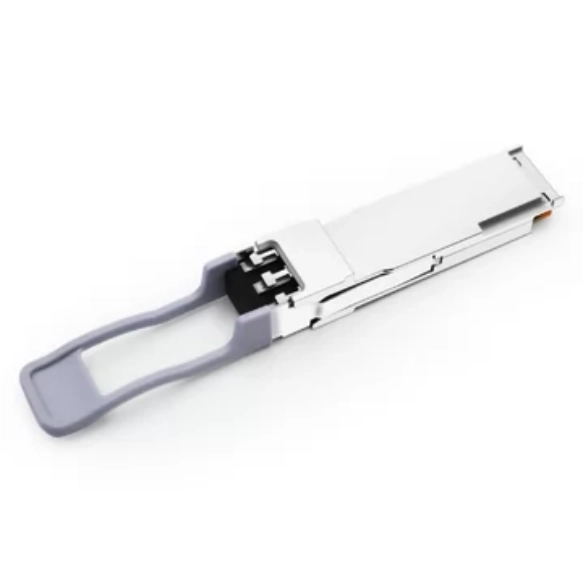

40G optical transceiver | 40G LR4 10km QSFP+ | |

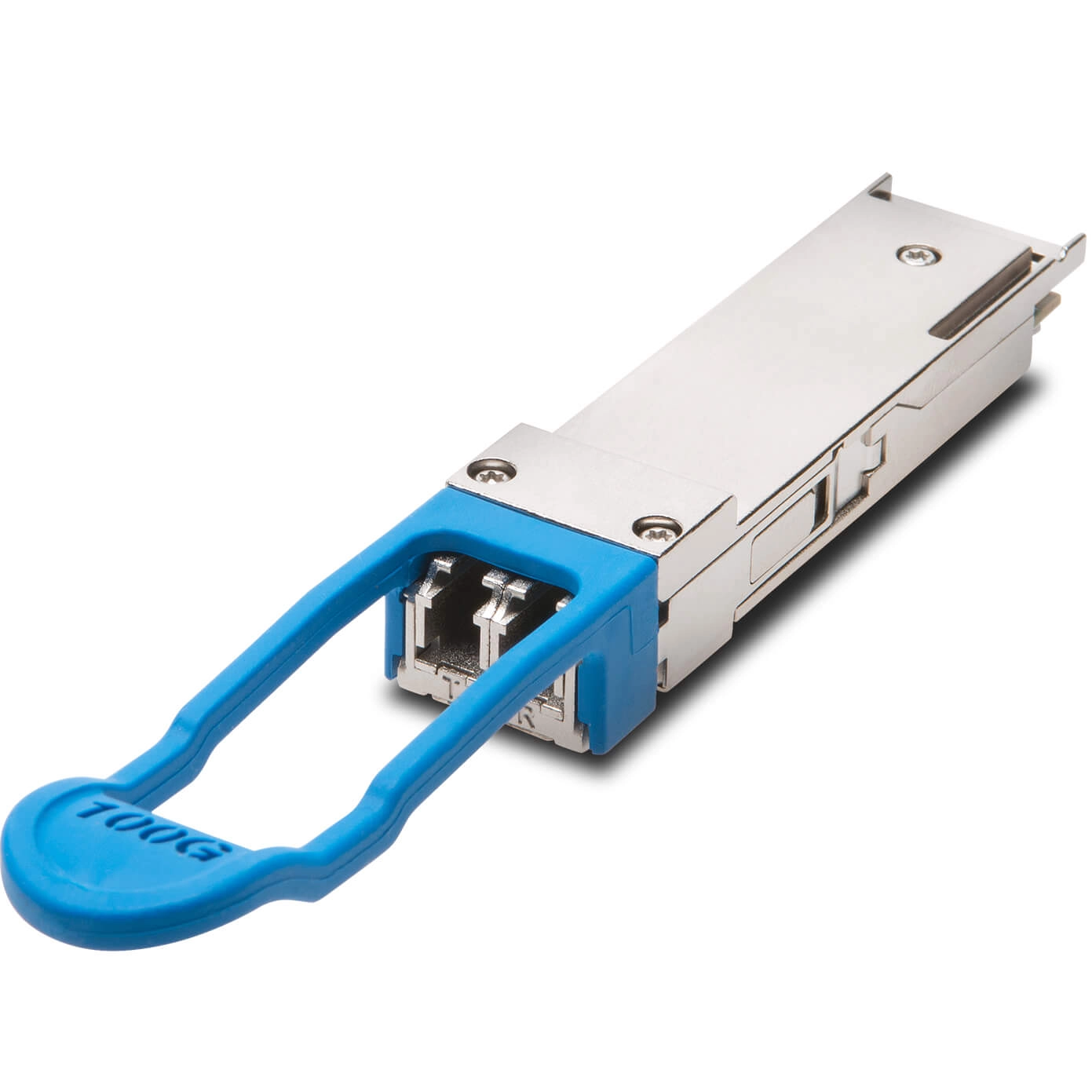

| 100G optical transceiver | 100G SR4 100m QSFP28 |  |
100G CWDM4 2km QSFP28 |  | |
100G PSM4 10km QSFP28 |  | |
| 200G optical transceiver | 200G SR4 100m QSFP56 |  |

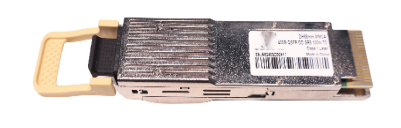

| 400G optical transceiver | 400G SR8 100m QSFP-DD |  |

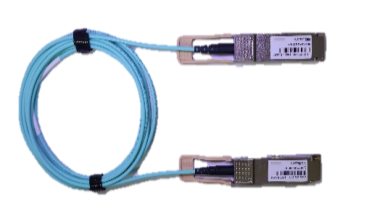

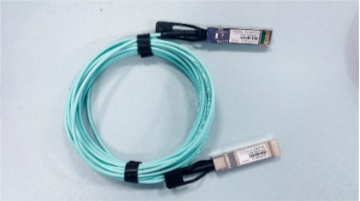

| AOC patch cord | 10G SFP+ AOC 1m |  |
25G SFP28 AOC 1m | ||
100G QSFP28 AOC 1m |  | |
200G QSFP56 AOC 1m |
