Fiber Optical Splitter, also known as fiber optic splitter or bean splitter, is a type of optical power management device to distribute optical signals from Central Office (CO) to multiple premise subscriber locations. PLC Optical Splitter plays a crucial role in PON network. Based on the Planar Waveguide Technology, it provides a cost effective and space saving network solution. Optic Fiber PLC splitter uniformly divides an optical signal from one or two input fiber ports to multiple output ports. The working wavelength is from 1260nm to 1650nm. PLC splitters can be utilized underground, aerial, pedestals and rack mount systems.
PLC splitters are typically installed to serve for PON and FTTH networks. 1xN and 2xN are the common splitter ratios for specific applications. You should choose the most suitable one according to your project.

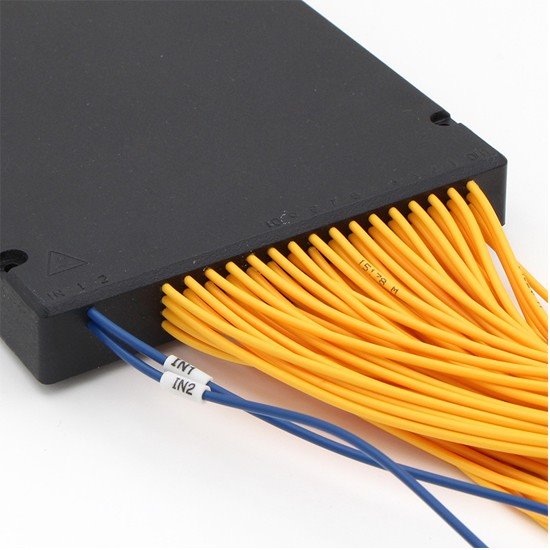

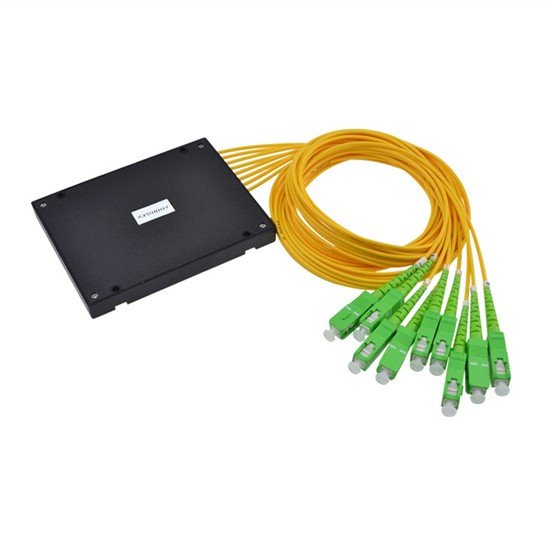

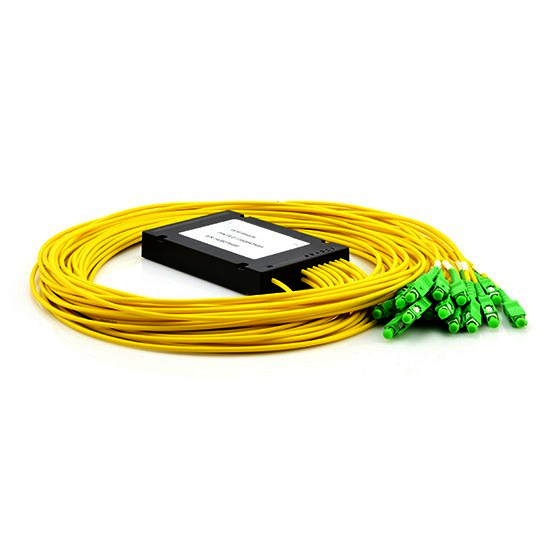

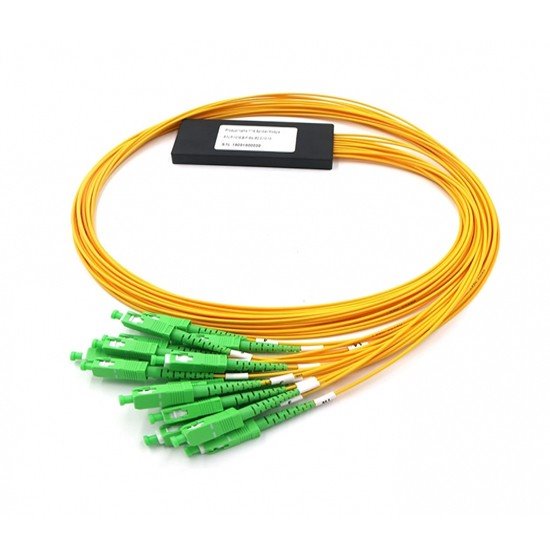

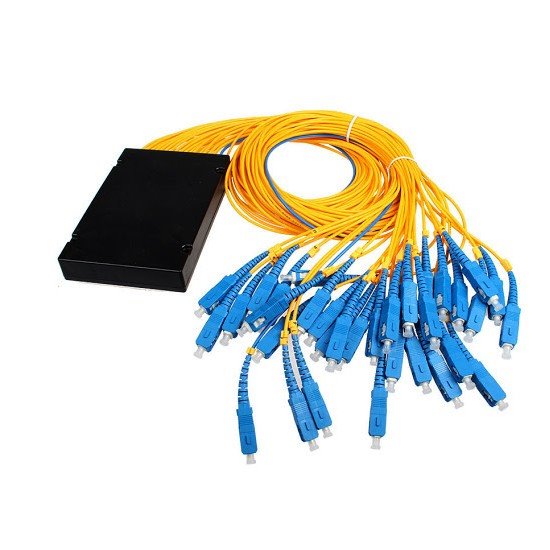

ABS Box PLC Splitter
Also can be referred to as ABS Cassette PLC Splitter or ABS Module Type PLC Splitter. The inbound fibers and distribution fibers are arranged on the same plate of this ABS Box, which can adapt to different installation requirements and more flexible cabling solutions. Moreover, it can also be installed in a variety of boxes or enclosures. Module splitter, also called cassette splitter, is designed with direct 2.0nm or 3.0nm fiber output. This type of ABS Box splitter is usually used for patch panel use, such as network cabinet and optical distribution box. It does also need to splice and can better protect the fiber when using. The typical type of module splitter is with ABS box package.
Features
Uniform power splitting
module cassette compact design
Broadband Operation Wavelength
Good channel-to-channel uniformity
Low PDL (Polarization Dependent Loss)
Low Insertion Loss and high Return Loss
Reliable Environmentally and mechanically stability
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40°C to 85°C
Certificated by ROHS
Applications
FTTX (FTTB, FTTH, FTTC) Systems
Cable Television (CATV)
Optical Signal Distribution
Passive Optical Network (PON)
Local area networks (LAN)
Optical Signal Distribution & Test equipment

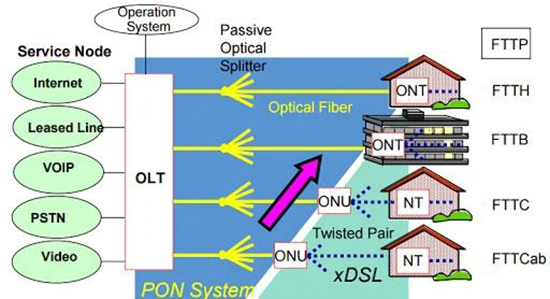

Optical Splitters in PON/FTTx Solution Topology
Product Highlights
Reliable Environmental Stability
Low insert loss(IL), low polarization dependent loss(PDL), low back reflection, and excellent uniformity.
High-Quality Chips
The wavelength is not sensitive to the loss of light, which can meet the transmission requirement of different wavelengths.
Module Cassette Compact Design
This ABS PLC splitter uses ABS plastic box to hold the splitter chip to offer a stronger & reliable protection.

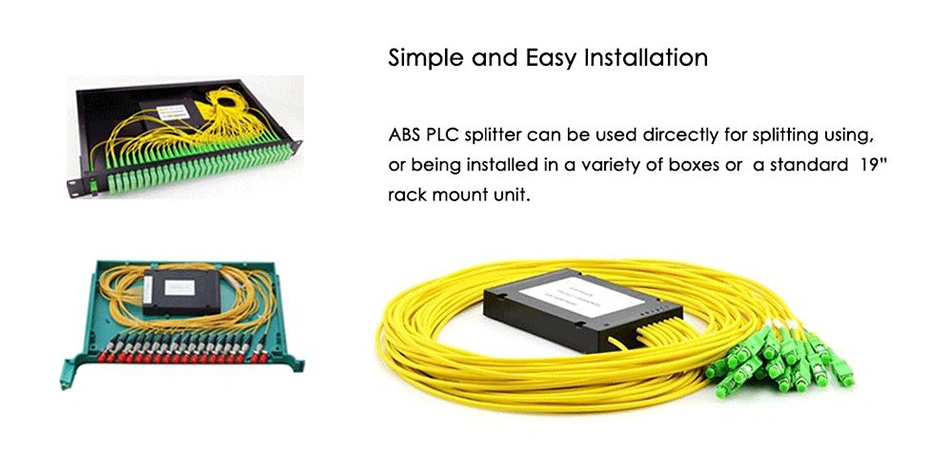

Flexible Installation
This ABS cassette type splitter is very common to be installed in a standard 19-inch rack unit.
Best Solution for Passive Optic Network(PON)
The ABS cassette type splitter is used to distribute or combine optical signals, which allows the telecom carrier & ISP to split the signals to more homes, building and offices.
Durable Jacket Material
PVC and LSZH are optional, and both are with good strength and tenacity, of long lifespan.
Strict Quality Control
Every product is strictly tested before shipment. TANGPIN Technology guarantee that every product to the hands of customers are subject to stringent testing standards.
Decent Packaging
The design and packaging is exquisite to ensure the products arriving in good condition to customer hand.
Thoroughly sterilized
All the raw materials will be sterilized before entering our warehouses. And all the finished products will be sterilized before shipment.
Specification
Table 1
1×N PLC Splitter
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Operating Wavelength (nm) | 1260~1650 | |||||
Fiber Type | G652D/ G657A1/G657A2 or customer specified | |||||
Insertion Loss (dB)(P/A Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
Return Loss (dB) (P/A Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature Stability | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Operating Temperature (°C) | -40~85 | |||||
Storage Temperature (°C) | -40~85 | |||||
Package | Optional (plastic bag, paper box or plastic tray) |
Table 2
2×N PLC Splitter
Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
Operating Wavelength (nm) | 1260~1650 | |||||
Fiber Type | G652D/ G657A1/ G657A2 or customer specified | |||||
Insertion Loss (dB) | 4 | 7.6 | 11 | 14.4 | 17.5 | 21 |
Loss Uniformity (dB) | 0.6 | 1 | 1.2 | 1.5 | 1.8 | 2.2 |
Return Loss (dB) (P/A Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
Temperature Stability(-40~85 °C)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Operating Temperature (°C) | -40~85 | |||||
Storage Temperature (°C) | -40~85 | |||||
Package | Optional (plastic bag, paper box or plastic tray) |
Order Information
Input Channel Number: 1/ 2
Input Optical Fiber Type: 0.25mm / 0.9mm / 2.0mm / 3.0mm
Output Channel Number: 2 / 4 / 8 / 16/ 32 / 64
Output Optical Fiber Type: 0.25mm/ 0.9mm / 2.0mm / 3.0mm
Connector Type In/Out: no connector / FC / SC / LC / or other type
Connector Polish Type: APC/ UPC/ PC
Fiber Length: customized (1.5M defaulted)
TANGPIN's ABS PLC Splitter family includes 1×2, 1×4, 1×8, 1×16, 1×32,1X64, 2×2, 2×4, 2×8, 2×16, 2×32, 2x64 PLC splitters.
Q&A
Q: Is this ABS Box type PLC splitter can be used for fiber optic splice closure?
A: No, If you need the splitter to be installed in FOSC (fiber optic splice closure), you can use blockless PLC splitter. This splitter is very common to be installed in a standard 19-inch rack unit.
Q: Is this splitter only used for standard 19-inch rack mount?
A: This splitter also can be used in outdoor optical distribution box for Fiber to the point (FTTx) deployments, CATV links and other passive optical networks (e.g., EPON, GPON, BPON).
Q: How to choose a right fiber optic splitter?
A: You should consider the costs & applications.
For example, splitting configurations below 1×4 are advised to use FBT splitter, while split configurations above 1×8 are recommended for PLC splitters. If only for a single wavelength transmission or dual, FBT splitter is better to save cost. If for PON broadband transmission, considering the future expansion and monitoring needs, PLC splitter is better.
Q: Is this splitter waterproof?
A: The PLC splitters we provide is not waterproof.
TANGPIN Technology provides series type of optic fiber splitters, except ABS box PLC splitter, we also can offer mini steel tube PLC splitter, plug-in cassette type splitter, rack-mount PLC splitter, fan-out PLC splitter, Tray type PLC splitter, LGX PLC splitter and bare fiber PLC splitter.
