Plug-in PLC Optic Splitter

Planar lightwave circuit (PLC) splitter is a type of passive optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Availability:
Product Description

Planar lightwave circuit (PLC) splitter is a type of passive optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. The optic fiber splitters are universally used in passive optical network. It allows a strand of fiber optic signal being equivalently split into several strands of an optical signal, and it can support a single network interface to be shared by many subscribers. Nowadays, the fiber optic splitter plays a significant role in the PON system for next generation fast internet solutions.


Optical Fiber PLC splitter is a kind of optical fiber tandem device with many input terminals and output terminals especially to a passive network to connect the MDF and terminal equipment to achieve the branching of the optical signal, Ideal for EPON, GPON, FTTH/FTTX networks.

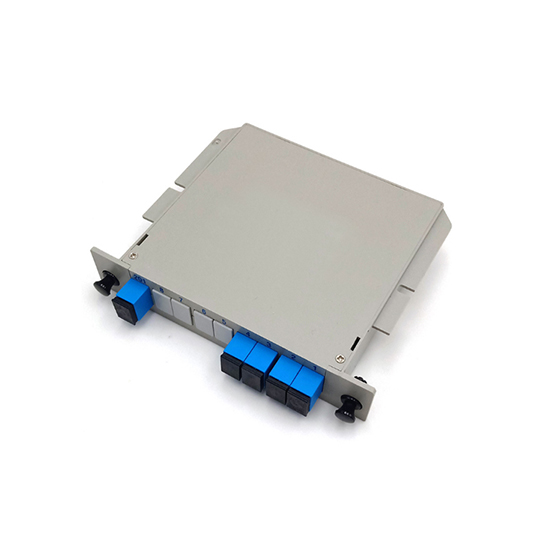

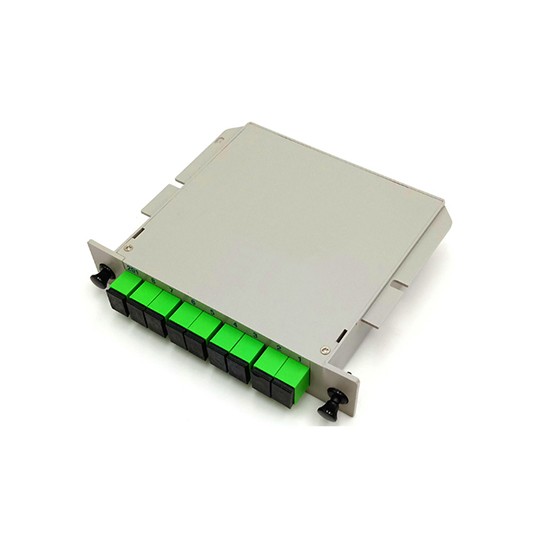

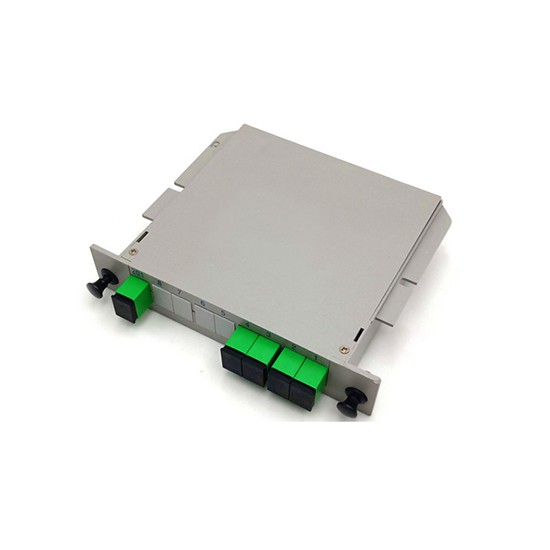

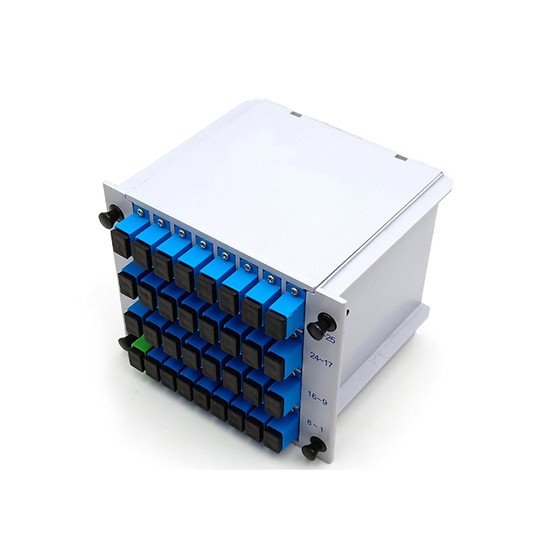

Insert Type PLC splitter

Also can be referred to as mini plug-in PLC Splitter or Cassette Card Inserting PLC Splitter. Its appearance is similar to the LGX PLC Splitter, while insert plug-in plc splitter is its small version with a compact design. It is usually installed in the wall mount FTTH box for fiber optic signal distribution. Using the mini plug-in PLC type splitter saves time and space but still provides reliable protection for the fiber optic splitter. It's ideal for FTTx projects, especially at the distribution points near the end users of the FTTx networks.

Features

Uniform power splitting

Compact package design

Broadband Operation Wavelength

Good channel-to-channel uniformity

Low PDL (Polarization Dependent Loss)

Low Insertion Loss and high Return Loss

Reliable Environmentally and mechanically stability

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40°C to 85°C

Certificated by ROHS


Applications

CATV Network Systems

PON,ODN,FTTx Networks

Optical Signal Distribution

Video Transmission Systems

LAN, WAN and Metro Networks

Other applications in fiber optic networks

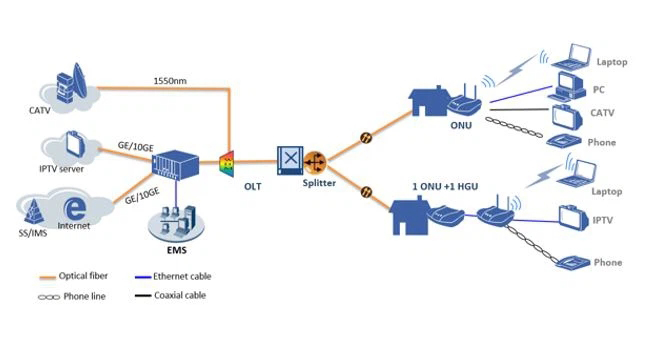

Optical Splitters in PON Network Topology

Product Highlights

Reliable Environmental Stability

Low insert loss(IL), low polarization dependent loss(PDL), low back reflection, and excellent uniformity.


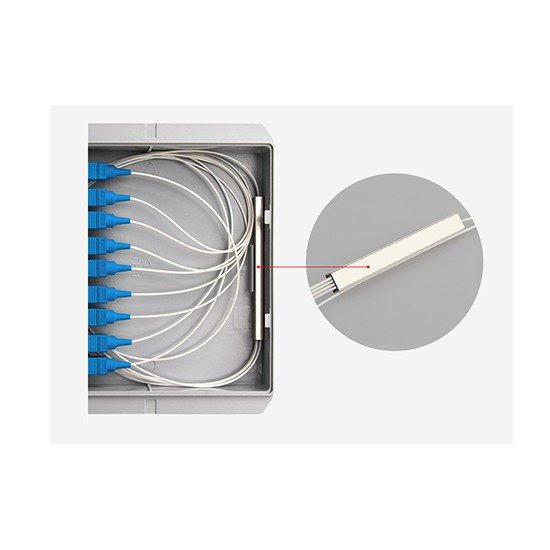

High-Quality Chips

The wavelength is not sensitive to the loss of light, which can meet the transmission requirement of different wavelengths.


Compact Structure Design

Compacted in a small sizes, so it can be installed in a variety of FTTH distribution boxes and can be installed easily.


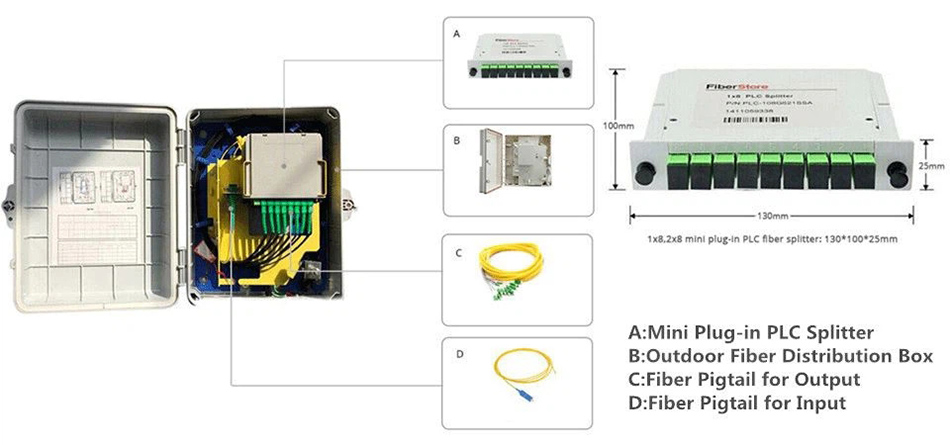

Simple Connection and Easy Installation

The plug-in cassette insert PLC splitter is commonly installed in the wall mount FTTH box for fiber optic signal distribution. It’s very easy to operate and install.


Best Solution for Passive Optic Network(PON)

This insert type splitter is used to distribute or combine optical signals, which allows the telecom carrier & ISP to split the signals to more homes, building and offices.


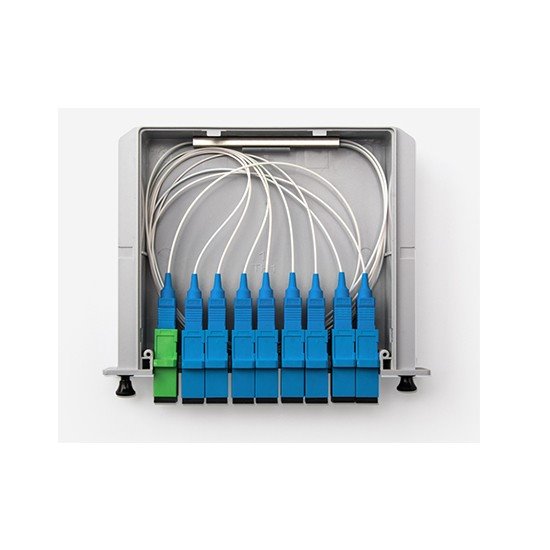

Durable ABS Material

The plug-in insert type of module splitter is with ABS box package, which will have a much strong ability to protect the splitter chip.


Strict Quality Control

Every product is strictly tested before shipment. TANGPIN Technology guarantee that every product to the hands of customers are subject to stringent testing standards.


Thoroughly sterilized

All the raw materials will be sterilized before entering our warehouses. And all the finished products will be sterilized before shipment.


Specification

Table 1

1×N PLC Splitter

Parameters

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G652D/ G657A1/G657A2 or customer specified

Insertion Loss (dB)(P/A Grade)

3.8/4.0

7.1/7.3

10.2/10.5

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.4

0.6

0.8

1.2

1.5

2

Return Loss (dB) (P/A Grade)

50/55

50/55

50/55

50/55

50/55

50/55

Polarization Dependent Loss(dB)

0.2

0.2

0.2

0.25

0.3

0.35

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature Stability
(-40~85 °C)(dB)

0.4

0.4

0.4

0.5

0.5

0.5

Operating Temperature (°C)

-40~85

Storage Temperature (°C)

-40~85

Package

Optional (plastic bag, paper box or plastic tray)


Table 2

2×N PLC Splitter

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G652D/ G657A1/ G657A2 or customer specified

Insertion Loss (dB)

4

7.6

11

14.4

17.5

21

Loss Uniformity (dB)

0.6

1

1.2

1.5

1.8

2.2

Return Loss (dB) (P/A Grade)

50/55

50/55

50/55

50/55

50/55

50/55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.4

0.5

0.5

0.5

0.5

Temperature Stability(-40~85 °C)(dB)

0.4

0.4

0.4

0.5

0.5

0.5

Operating Temperature (°C)

-40~85

Storage Temperature (°C)

-40~85

Package

Optional (plastic bag, paper box or plastic tray)


Order Information

Input Channel Number: 1/ 2

Input Optical Fiber Type: 0.25mm / 0.9mm / 2.0mm / 3.0mm

Output Channel Number: 2 / 4 / 8 / 16/ 32 / 64

Output Optical Fiber Type: 0.25mm/ 0.9mm / 2.0mm / 3.0mm

Connector Type In/Out: no connector / FC / SC / LC / or other type

Connector Polish Type: APC/ UPC/ PC

Fiber Length: customized (0.35M defaulted)


TANGPIN's Mini steel tube PLC Splitter family includes 1×2, 1×4, 1×8, 1×16, 1×32, 1x36, 2×2, 2×4, 2×8, 2×16, 2×32, 2x64 PLC splitters.
