Rack Mount PLC Optic Splitter

PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. TANGPIN...
Availability:
Product Description

PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. TANGPIN Tech provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 1U Rack Mount type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.


Rack-mount PLC splitter is designed in 19 rack mount metal chassis. In general, it is with fiber optic adapter in the front panel. Rack-mount splitter is used in 19”ODF (Optical Distribution Frame). Our Rack mounted 1U PLC splitters meet the Telcordia standards and with very competitive prices.

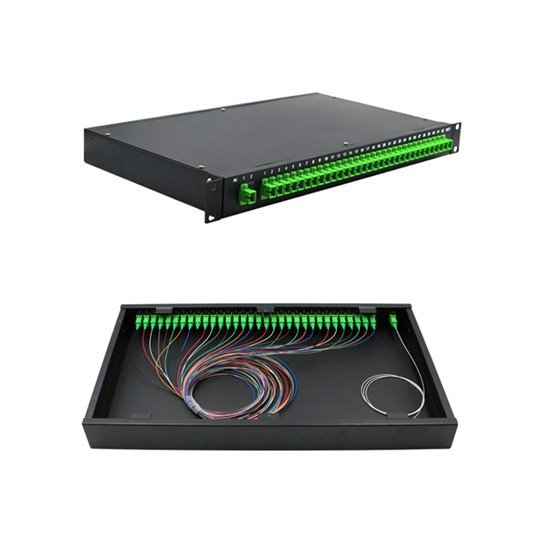

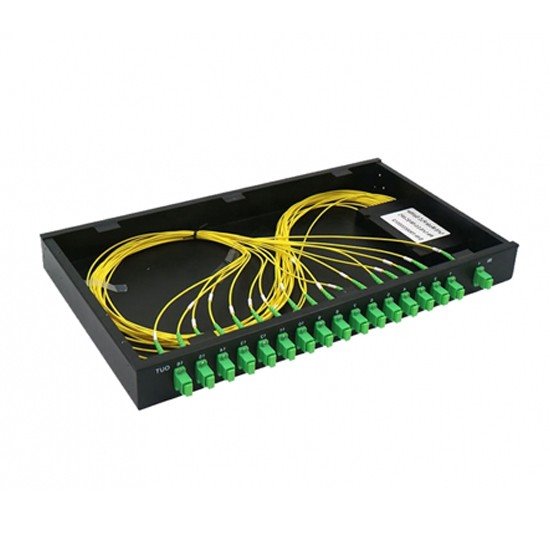

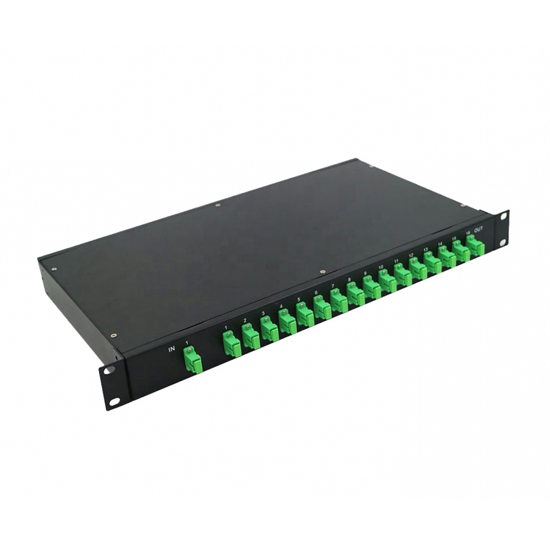

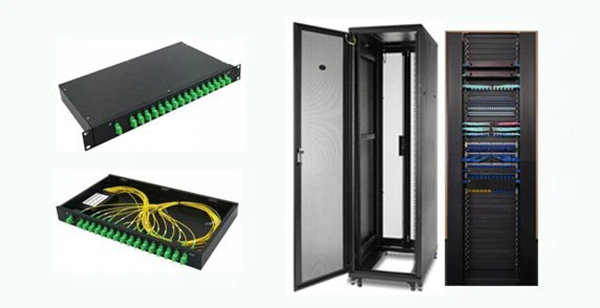

Rack Mount PLC splitter

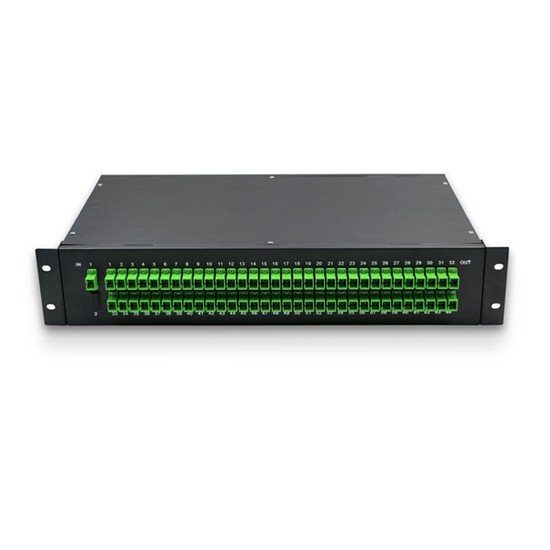

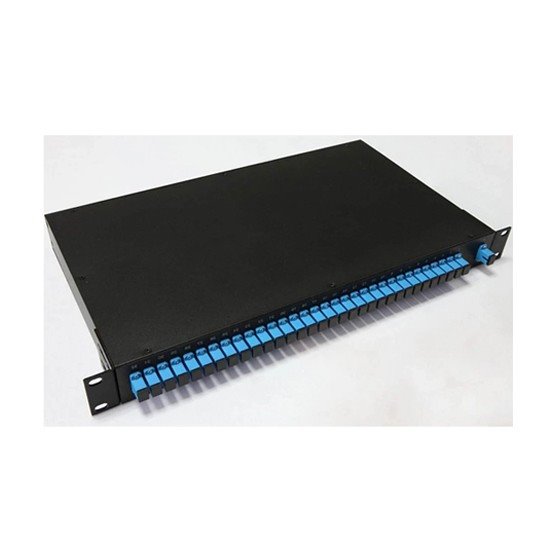

Also can be referred to as Rack Mounted Fiber Optic Splitter, whihc is offered in 1U or 2U for optic fiber PLC splitters with various adapters to fit for any 19″ fiber optic racks, they are providing superior and reliable performance over a wide operating wavelength range (1260 ~ 1650nm) and temperature range (-40 to +85 °C).



Features

Uniform power splitting

Compact package design

Broadband Operation Wavelength

Good channel-to-channel uniformity

Low PDL (Polarization Dependent Loss)

Low Insertion Loss and high Return Loss

Aluminum or galvanized steel for rack material option

Reliable Environmentally and mechanically stability

Various highly definable coupling ratios to serve the precise requirement

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40°C to 85°C

Certificated by ROHS


Applications

CATV Network Systems

PON,ODN,FTTx Networks

Optical Signal Distribution

Video Transmission Systems

LAN, WAN and Metro Networks

Other applications in fiber optic networks

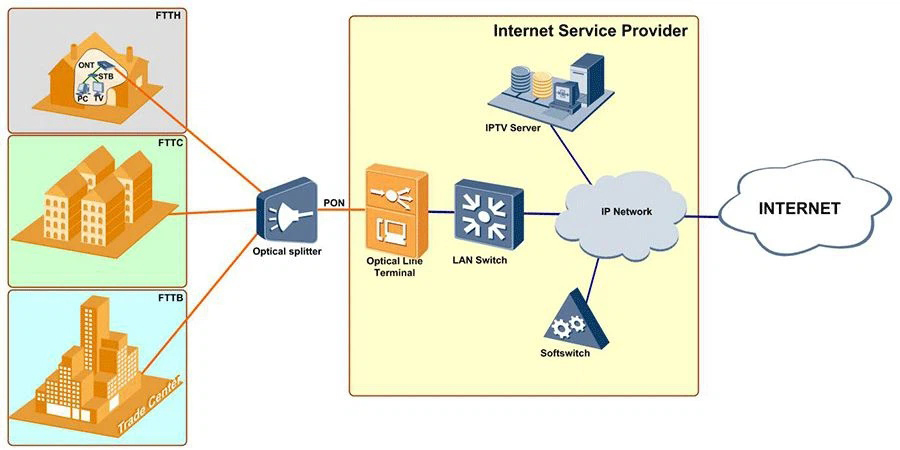

Optical Splitters in PON Network Topology


Product Highlights

Reliable Environmental Stability

Low insert loss(IL), low polarization dependent loss(PDL), low back reflection, and excellent uniformity.


High-Quality Chips

The wavelength is not sensitive to the loss of light, which can meet the transmission requirement of different wavelengths.


Uniform Distribution of Optical Signal

Connecting the central office and terminal apparatus to realize uniform distribution of the optical signal.


Simple Connection and Easy Installation

Loaded with a pigtail terminated ABS module, can be easily mounted in cabinet for uniform optical signal distribution.


Best Solution for Passive Optic Network(PON)

Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.


Durable Metal Material

The Rack-mount type of module splitter is with metal chassis package, which will have a very strong ability to protect the inner ABS box Splitter.


Strict Quality Control

Every product is strictly tested before shipment. TANGPIN Technology guarantee that every product to the hands of customers are subject to stringent testing standards.


Thoroughly sterilized

All the raw materials will be sterilized before entering our warehouses. And all the finished products will be sterilized before shipment.


Specification

Table 1

1×N PLC Splitter

Parameters

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G652D/ G657A1/G657A2 or customer specified

Insertion Loss (dB)(P/S Grade)

3.8/4.0

7.1/7.3

10.2/10.5

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.4

0.6

0.8

1.2

1.5

2

Return Loss (dB) (P/S Grade)

55/50

55/50

55/50

55/50

55/50

55/50

Polarization Dependent Loss(dB)

0.2

0.2

0.2

0.25

0.3

0.35

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature Stability
(-40~85 °C)(dB)

0.4

0.4

0.4

0.5

0.5

0.5

Operating Temperature (°C)

-40~85

Storage Temperature (°C)

-40~85

Package

Optional (plastic bag, paper box or plastic tray)


Table 2

2×N PLC Splitter

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G652D/ G657A1/ G657A2 or customer specified

Insertion Loss (dB)

4

7.6

11

14.4

17.5

21

Loss Uniformity (dB)

0.6

1

1.2

1.5

1.8

2.2

Return Loss (dB) (P/S Grade)

55/50

55/50

55/50

55/50

55/50

55/50

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.4

0.5

0.5

0.5

0.5

Temperature Stability(-40~85 °C)(dB)

0.4

0.4

0.4

0.5

0.5

0.5

Operating Temperature (°C)

-40~85

Storage Temperature (°C)

-40~85

Package

Optional (plastic bag, paper box or plastic tray)


Order Information

Input Channel Number: 1/ 2

Input Optical Fiber Type: 0.25mm / 0.9mm / 2.0mm / 3.0mm

Output Channel Number: 2 / 4 / 8 / 16/ 32 / 64

Output Optical Fiber Type: 0.25mm/ 0.9mm / 2.0mm / 3.0mm

Connector Type In/Out: no connector / FC / SC / LC / or other type

Connector Polish Type: APC/ UPC/ PC

Fiber Length: customized (1.0M defaulted)


TANGPIN’s Rack-mounted PLC Splitter family includes 1×2, 1×4, 1×8, 1×16, 1×32, 1x36, 2×2, 2×4, 2×8, 2×16, 2×32, 2x64 PLC splitters.


Q&A

Q: Is this insert box type can be used in terminal boxes?

A: The insert box PLC splitter always can be used in the fiber optic terminal box. While the Rack mounted type of PLC Splitter always used in the ODF and rack-mount enclosure.


Q: Can you offer split ratio 20:80 optic splitter ?

A: Yes, we can offer. But for splitting ratio 20:80, it’s FBT splitter, not PLC Splitter. The former offers adjustable splitting ratio, while the latter offers equal split ratios for all branches.


Q: How to choose a right fiber optic splitter?

A: You should consider the costs & applications.

For example, splitting configurations below 1×4 are advised to use FBT splitter, while split configurations above 1×8 are recommended for PLC splitters. If only for a single wavelength transmission or dual, FBT splitter is better to save cost. If for PON broadband transmission, considering the future expansion and monitoring needs, PLC splitter is better.

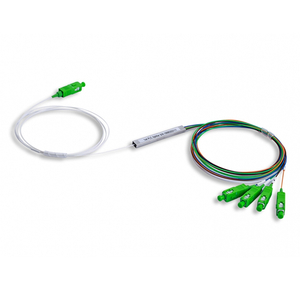

TANGPIN Technology provides series type of optic fiber splitters, except rack-mounted PLC Splitter, we also can offer ABS box PLC splitter, mini steel tube splitter, plug-in cassette PLC splitter, fan-out PLC splitter, Tray type PLC splitter, LGX PLC splitter and bare fiber PLC splitter.
