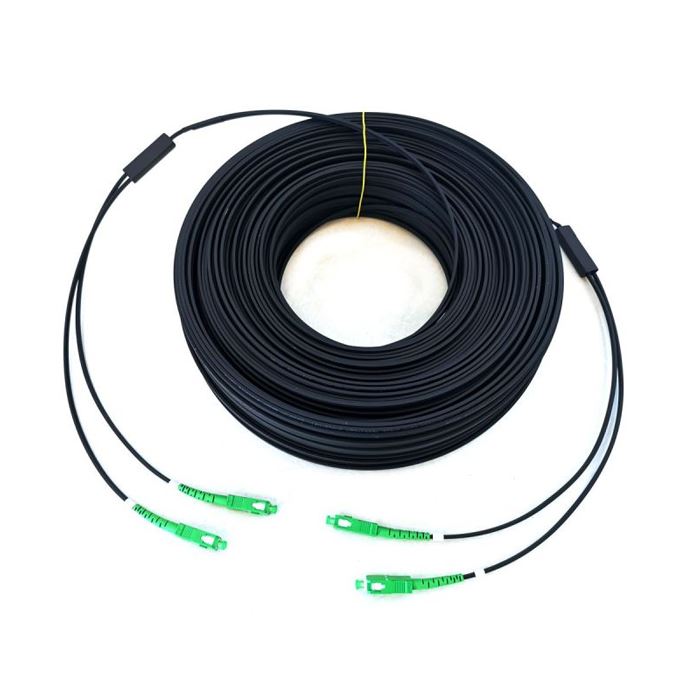

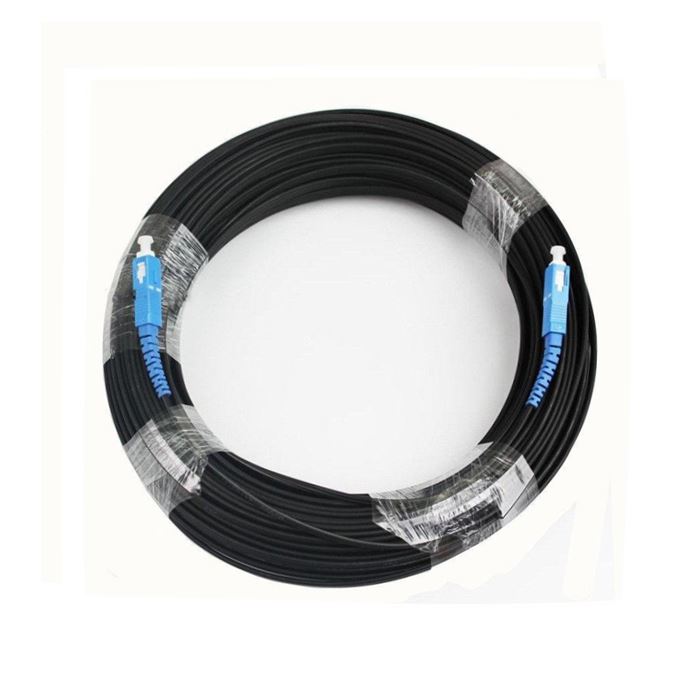

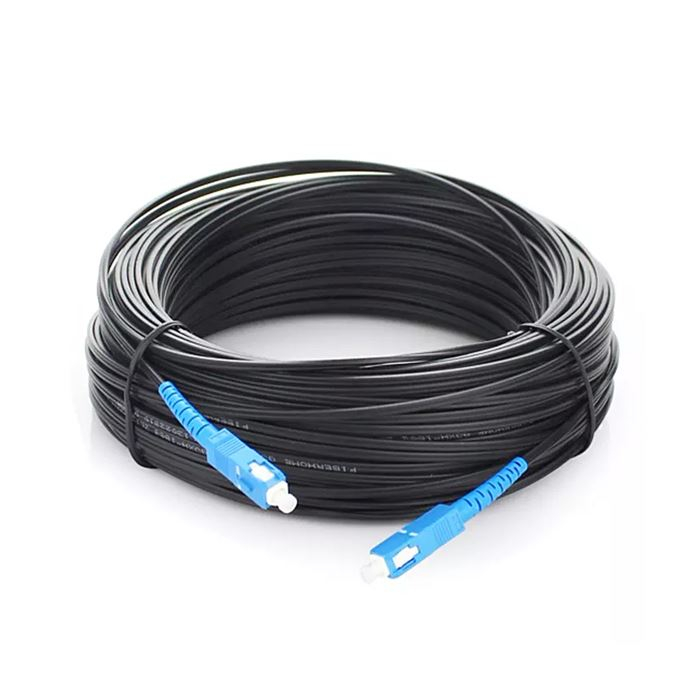

FTTH Drop Cable

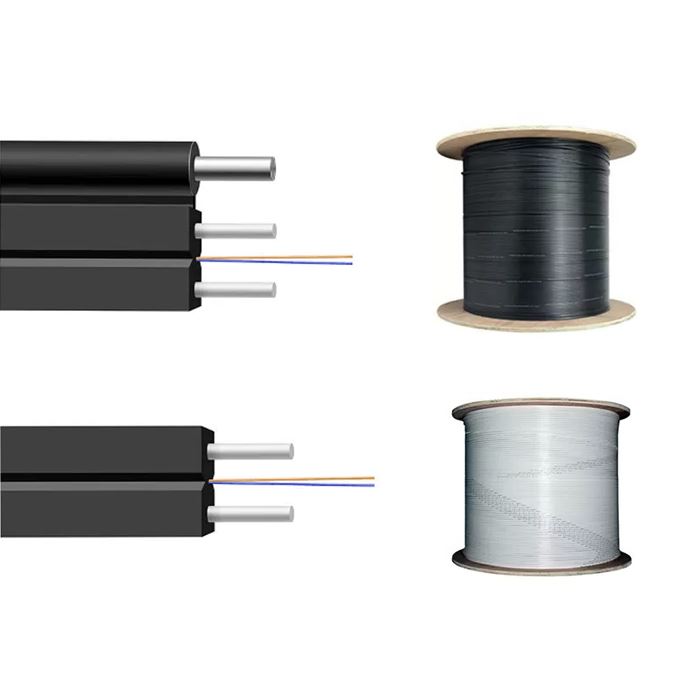

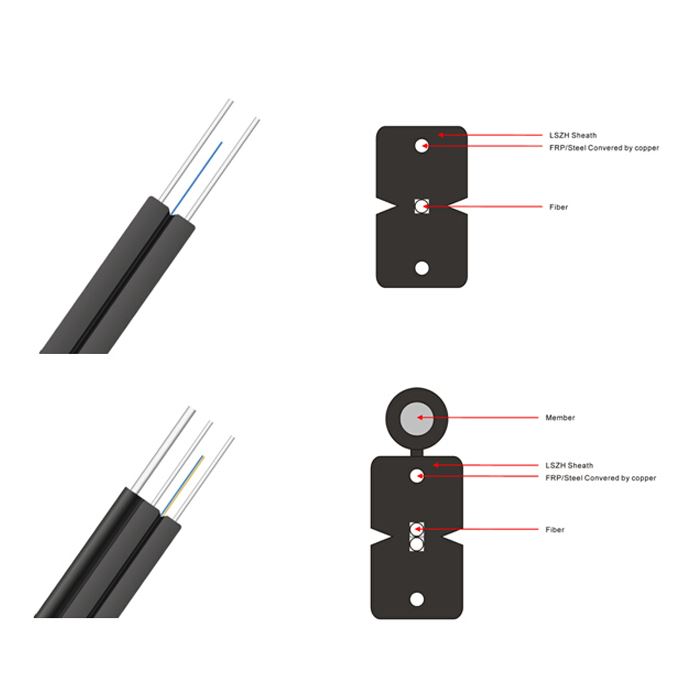

Drop cable is a single core, double core structure, can also be made into a four-core structure, the cross section is 8 character, the strengthening part is located in the center of two circles, can be used metal or non-metal structure, optical fiber is located in the geometric center of 8 character.
Availability:
Product Description

Drop cable is a single core, double core structure, can also be made into a four-core structure, the cross section is 8 character, the strengthening part is located in the center of two circles, can be used metal or non-metal structure, optical fiber is located in the geometric center of 8 character. The optical fiber in the leather cable adopts G.657 optical fiber with small bending radius, which can be laid with a bending radius of 20mm, and is suitable for entering the house in the way of pipe or open wire.


Features

1. Special bending resistant fiber provides greater bandwidth and enhanced network transmission performance.

2.Two parallel FRP or metal stiffeners give the cable good compression resistance and protect the fiber.

3.Optical cable has the advantages of simple structure, light weight and high practicability.

4.Unique groove design, easy to peel, easy to connect, simplify installation and maintenance.

5.Low smoke halogen-free flame retardant polyethylene sheath or flame retardant polyvinyl chloride sheath, environmental protection.


Parameter

Technical parameters

Fiber cores

1

2

4

Strength member

Material

KFRP/Steel wire

Self-supporting

Material

Steel wire

Outer jacket

Thickness mm

≥0.3

Outer dia.

mm

(2.0*5.0)±0.1

(2.0*5.0)±0.1

(2.0*6.0)±0.1

Temperature

ºC

-40~+60

Tensile

Short/Long N

600/300

Flatten

Short/Long N

2200/1000


Main mechanical and environmental properties

Test items

Test standard

Specified value

Requirement

Tensile

IEC 60794-1-2-E1

According to the technical Parameter

Residual additional attenuation≤0.03dB

Flatten

IEC 60794-1-2-E3

According to the technical Parameter

Additional attenuation under short-term flat force≤0.4dB

Crush

IEC 60794-1-2-E4

Impact 1N,Height 1m,at least 3 locations

Residual additional attenuation≤0.4dB

Repeated Bending

IEC 60794-1-2-E6

20N 300 times

Residual additional attenuation≤0.4dB

Temperature

IEC 60794-1-2-F1

-40ºC ~+60ºC

Additional attenuation≤0.02dB

Combustion

IEC 60332-1-2

Flammability

Should be able to pass through a single vertical combustion

Smoke density

No less than 50%

Corrosive

The gas PH ≤ 4.3 during burning, the conductivity should ≤ 10 μs / mm

* All optical fiber attenuation changes are monitored at a wavelength of 1550 nm.


Application

1.For indoor cabling, direct cable for end user.

2.Used to introduce optical cable into buildings.

3.FTTH in the user indoor wiring.


FAQ

Q: Are you the real manufacturer?

A: We are the real manufacturer with 15 year's history.


Q: What's the MOQ?

A: The MOQ of Fiber Optic cable is 1km.


Q: What's delivery time?

The general delivery time is 2-3 weeks after order confirmed. It depends on the order quantity.


Q: How to Store the Optical Fiber Cable Properly?

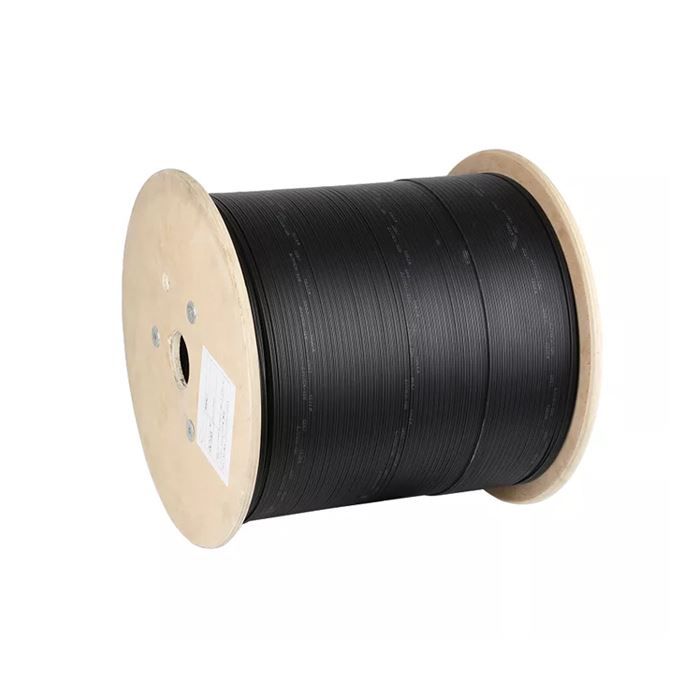

A: Store the drum indoor before using, the drum should place sideways not on the end.


Q: Can you supply customized products and logo?

A: Yes. You can send us your drawing.


Q: What's your payment terms?

A: We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
