Standard Patch Cable

• Very low insertion loss and high return loss
• Class A ceramic insert, SANHUAN ferrule, high performance fiber core
• LSZH, OFNP, OFNR cable jackets
• RoHS and REACH compliant materials
Availability:
Product Description

As a leading supplier of Optical Fiber Patch Cord, Tangpin Technology integrates R&D, production, and sales. Tangpin's cables products are not only sold well in various cities and regions in China but also exported to foreign markets, such as Southeast Asia, Central Asia, Europe, Africa, South America, North America, etc., all have the footprint of Tangpin's twisted pairs cables in these places.


Our customers who buy Tangpin's Ethernet network cable come from various industries in the telecommunication field. High-quality products and affordable prices always make our customers Satisfied with us.


TANGPIN Optical Fiber Patch Cord Types

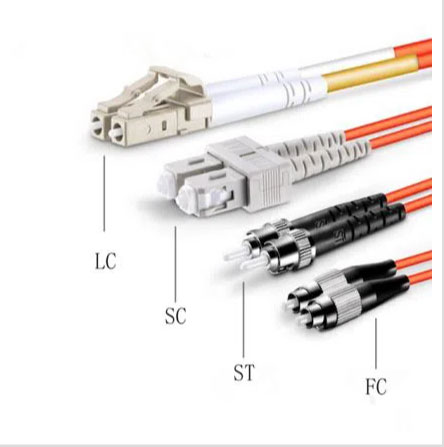

According to connector: Optical Fiber Patch Cord can be divided into FC, SC, ST, LC

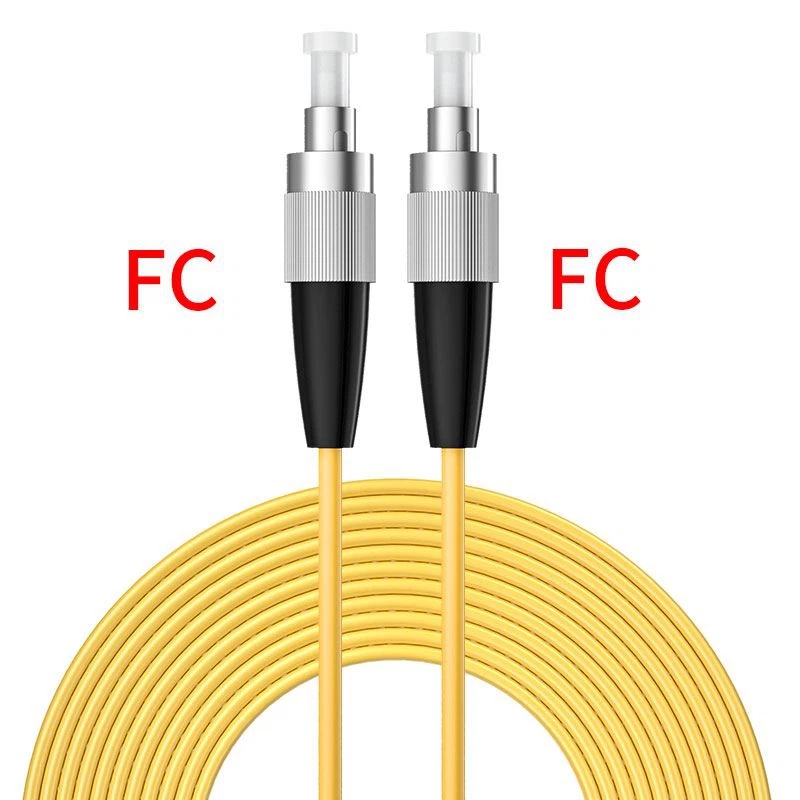

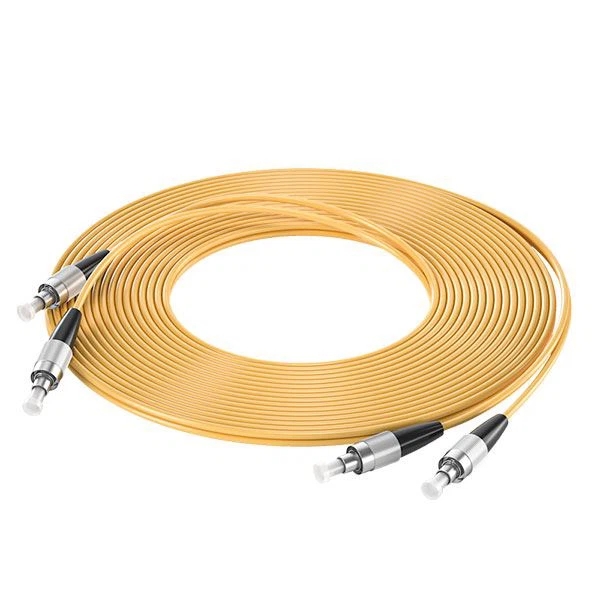

FC type


FC type


The external reinforcement method is a metal sleeve, and the fastening method is a turnbuckle. Generally used on the ODF side (the most used on the patch panel)

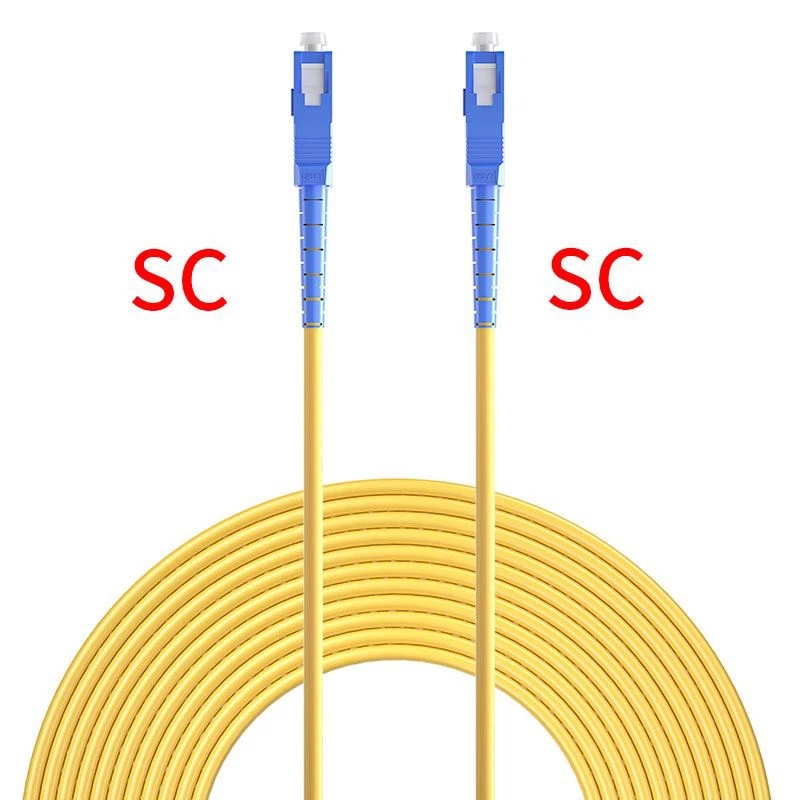

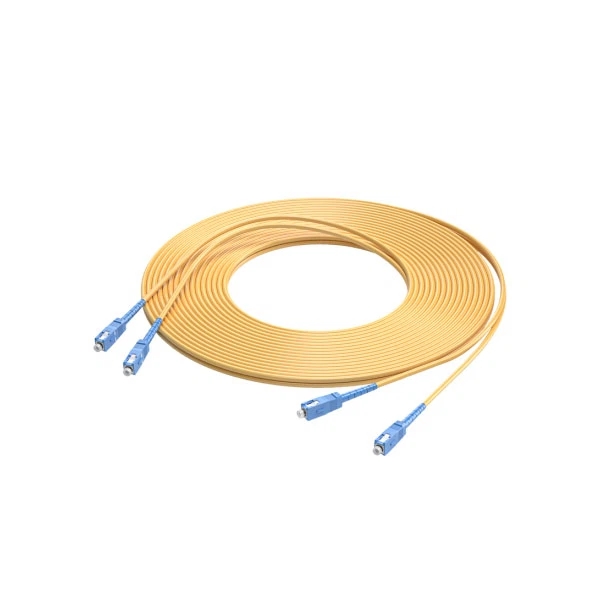

SC type


SC type


The connector for connecting the GBIC optical module has a rectangular shell, and the fastening method is a plug-and-pull type, which does not need to be rotated. (Most used on router switches)

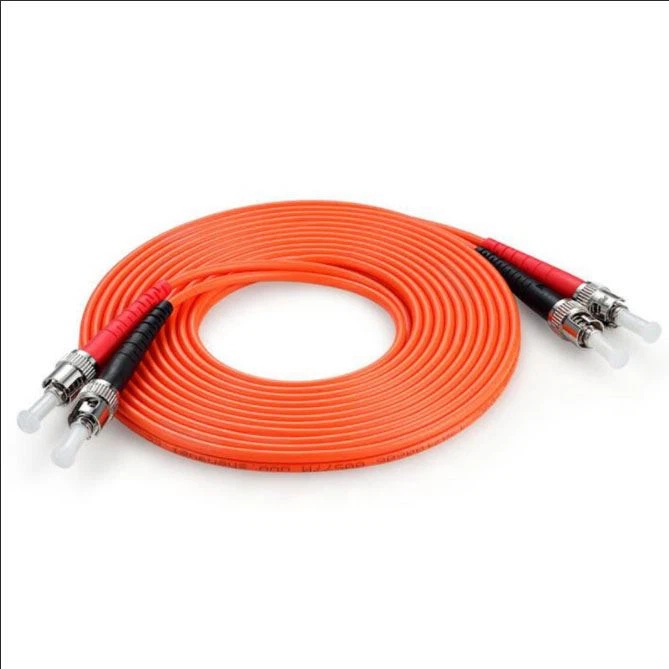

ST type


ST type


Commonly used in optical fiber distribution frame, the shell is round, and the fastening method is turnbuckle. (For 10Base-F connections, the connectors are usually ST type. Often used in fiber optic distribution frames)

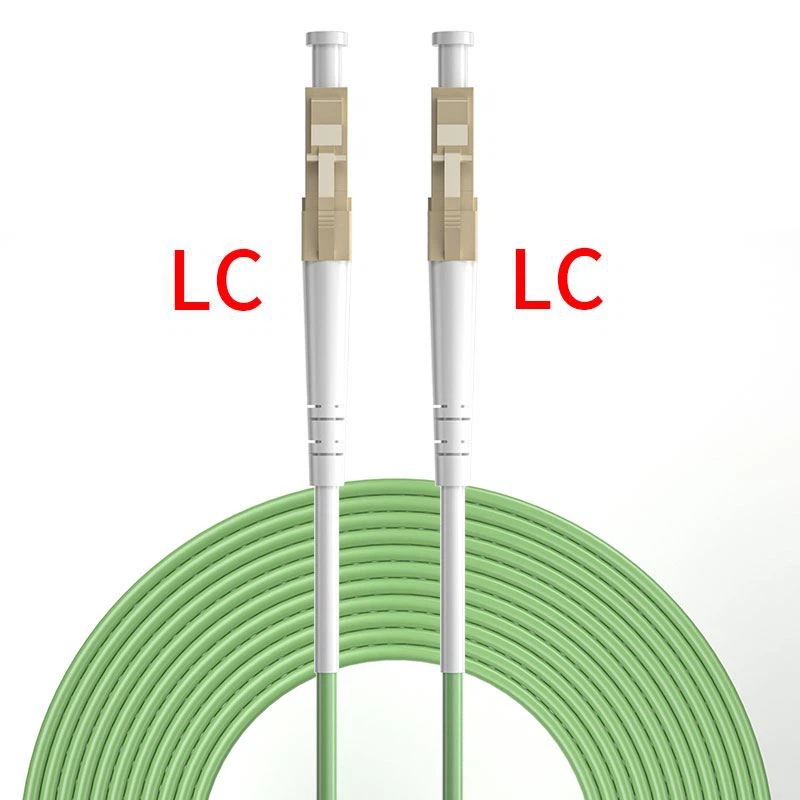

LC type


LC type


A connector for connecting SFP modules, constructed with an easy-to-use modular jack (RJ) latch mechanism. (commonly used by routers)


According to the type of fiber optic connector polishment: PC, APC, UPC

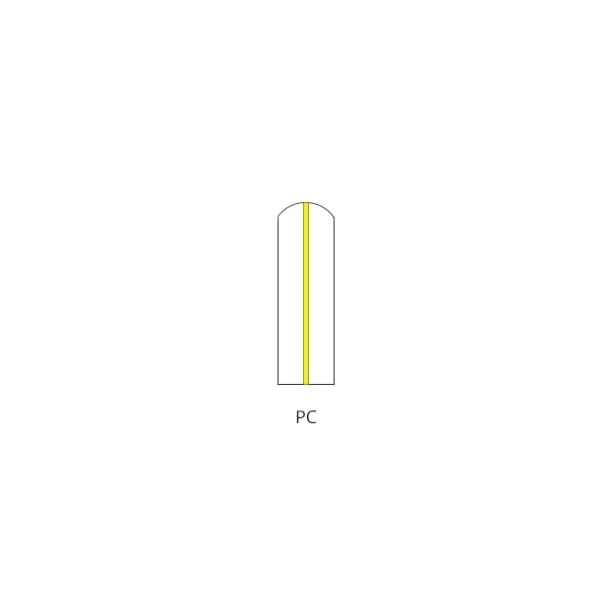

PC type

PC type


PC is microsphere grinding and polishing, the surface of the ferrule is ground into a slight spherical surface, and the fiber core is located at the highest point of bending.

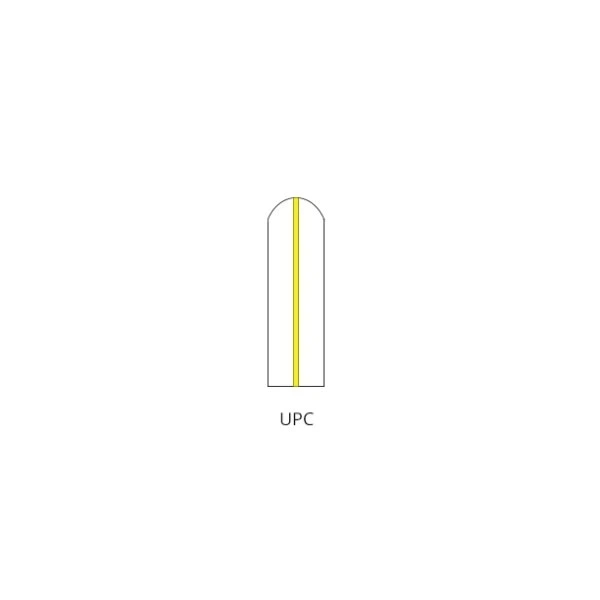

UPC type

UPC type


The end face of the UPC connector is not completely flat, and has a slight curvature to achieve a more precise mating.

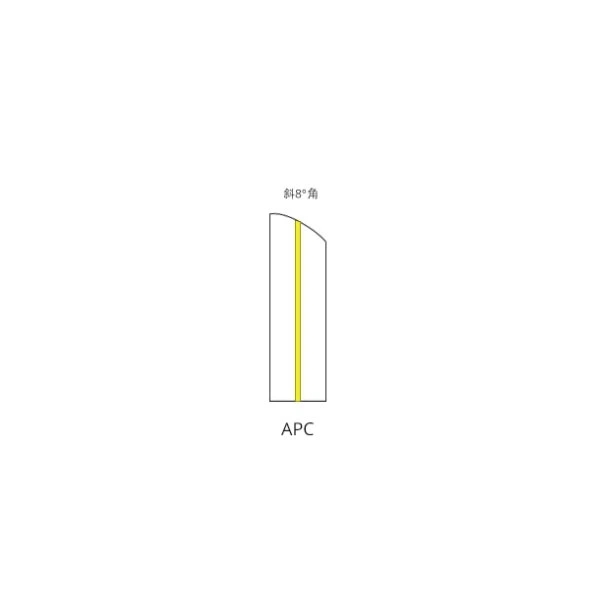

APC type

APC type


APC, the fiber end face is usually ground to an 8° bevel. The 8° angled bevel allows for tighter fiber endfaces and provides better connection performance by reflecting light through its bevel angle to the cladding rather than directly back to the source.


According to the transmission medium: Single-mode and Multi-mode patch cords. Single-mode: OS1, OS2. Multi-mode: OM1, OM2, OM3, OM4, OM5.


OS1 type

OS1 type


OS1 single-mode fiber core and cladding are made of glass, which cannot be bent and are fragile. The coating layer protects and prolongs the service life of the fiber. (designed for indoor applications)
OS2 type

OS2 type


The OS2 single-mode fiber is helically placed in a semi-rigid tube, so OS2 can stretch without bending the inner fiber, preventing the fiber from being damaged under enormous tension. (suitable for outdoor applications)
OM1 type

OM1 type


Large core diameter and numerical aperture, with strong light-gathering ability and bending resistance.


OM2 type


OM2 type


The core diameter and numerical aperture are relatively small, which effectively reduces the modal dispersion of the multimode fiber, significantly increases the bandwidth, and reduces the production cost by 1/3.
OM3 type


OM3 type


The use of flame-retardant outer skin can prevent the spread of flame, prevent the emission of smoke, acid gas and poisonous gas, etc., and meet the needs of 10 gb/s transmission rate.
OM4 type


OM4 type


Developed for VSCEL laser transmission, the effective bandwidth is more than double that of OM3.


OM5 type

OM5 type


The OM5 cable can support four SWDM channels, each carrying 25G data, providing 100G Ethernet using a pair of multimode fibers. (For installations in a variety of enterprise environments, from campuses to buildings to data centers.)


TANGPIN: Your Leading Optical Fiber Patch Cord Manufacturer


As a leading carrier-class Optical Fiber Patch Cord supplier, Tangpin manufactory has more than 15 years of experience, which has enabled Tangpin suppliers to form a set of mature R&D, production, sales, and after-sales service processes. Provide sufficient security for your purchase.


Very low insertion loss and high return loss.


Class A ceramic insert, SANHUAN ferrule, high performance fiber core.


LSZH, OFNP, OFNR cable jackets.


RoHS and REACH compliant materials.


Tangpin’s professional production team guarantees the product production cycle and provides a cycle guarantee for your use or supply.


Tangpin Ethernet network cables have provided a full range of services in all parts of China and all corners of the world and has been praised by customers many times. Because Tangpin manufactory has a rich variety of cables, it not only has Single-mode: OS1, OS2 and Multi-mode: OM1, OM2, OM3, OM4, OM5 but also has a variety of connectors such us FC, SC, ST, LC, which can be used for you whether you use it indoors or outdoors.


Optical fiber patch cable products are widely used in communication room, optical fiber to home, local area network, optical fiber sensor, optical fiber communication system, optical fiber connection transmission equipment, national defense, etc. Applicable to cable television network, telecommunication network, computer optical fiber network and optical testing equipment. Subdivision is mainly applied to several aspects.


1. Optical fiber communication system

2. Fiber access network

3. Fiber optics data transmission

4. Fiber optical CATV

5. Local area network

6. Equipment testing

7. Fiber optic sensor


Tangpin supplier is located in Shanghai, a beautiful city on the coast of the East China Sea. Our factory is located in Jiaxing Industrial Park, with convenient transportation. You can choose to go to Shanghai port or Ningbo port, which can also meet your air and rail transportation needs.


Our Optical Fiber Patch Cords are made of real PVC and LSHZ environmentally friendly materials, feel free to use them.


Patch cords and connectors are made in accordance with international standards, and the transmission band and transmission rate are guaranteed.


Tangpin product Optical Fiber Patch Cords length can be customized according to demand.


The color of the Optical Fiber Patch Cords can be customized according to requirements.


Authoritative quality certification, first-tier supplier telecom-level quality, buy with confidence. The product quality has passed the quality certification: CE/ROHS/ISO9001/UL.

Pre-sales: You only need to provide a few questions and product information to receive the quotation.


Tangpin staff will be available 24 hours online and can solve problems for you anytime, anywhere.


Problems encountered during after-sales installation or use: Tangpin will arrange professional and technical personnel for guidance until you are satisfied.


Tangpin's philosophy is: customer satisfaction is our biggest brand.

Tangpin’s goal is to develop together with customers.


Technological Parameter

Mode

Single Mode

Mult Mode

Polish

UPC

APC

PC

Insertion Loss

≤0.30dB

≤0.20dB

≤0.20dB

Return Loss

≥50dB

≥60dB

≥30dB

Test Wavelength

1310/1550nm

850/1310nm

Durability(500 Matings)

≤0.2dB

Operating Temperature

-40℃~+60℃

Storage Temperature

-45℃~+85℃

Fire Resistant

IEC 60794-2-30

Standards-Compliant

ROHS, IEC and GR-326

Fiber Type

Single mode

(1)9/125-G652D

(2)9/125-G655

(3)9/125-G657A, G657A2

(4)9/125-G65783

Multmode

(5)50/125-OM2

(6)62.5/125-OM1

(7)50/125-OM3

(8)50/125-OM4

(9)50/125-OM5

Fiber Brand

Tangpin, OEM

Connector

SC/(APC,UPC,PC), LC/(APC,UPC,PC), FC/(APC,UPC,PC), ST/PC, E2000/(APC,UPC,PC), MTRJ/(Female,Male), MPO/MTP

Cord Type

Simplex, Duplex

Cable Diameter

0.9mm, 2.0mm,3.0mm

Cable Jacket

PVC, LZSH

Length(M)

0.5m, 1m, 2m, 5m, 10m, 25m, 50m, 100m, Customized


Q&A

Q: Can I have some samples for testing quality?

A: Yes, you can get some free samples of any our products for testing quality.


Q: What is delivery time if we place an order?

A: Order quantities. Usually, we can deliver within 7-14 days for normal products, the special ones needs to be negotiated.


Q: Do you accept OEM/ODM?

A: Sure, no hesitate to tell us your ideas.


Q: Can I do your distributor?

A: Welcome to join us. We have a professional technical team and R&D capabilities to meet your needs.


Q: Can we get samples from you?

A: Of course,we can provide free samples,but you pay the freight


Q: Can you customize the product?

A: Yes,we can customize according to your requirements(logo,package,printing and so on)


Q: What trade terms do you support?

A: We support EXW, FOB and CIF terms of trade


Q: Can we trust you?

A: We founded the factory has many years of history, products exported to over 25 countries.


Q: What is your MOQ?

A: Our MOQ Lan cable 100boxes,patch cord cable 1000pcs.Of course, if we have stock. We can offer a smaller quantity.


Q: How about your price?

A: At the same price, our quality is better; at the same quality, our price is more favorable.


Q: What mode of transportation do you support?

A: Ocean transportation,air transport,Express, etc.
