Cat5 / Cat5e Ethernet Cable

● 22-26AWG high-quality oxygen-free copper conductor
● 100Mhz transmission frequency, up to 10Gbps transmission rate
● Very small attenuation, fast transmission speed and high signal stability
●Flexible, resistant to bending, no knots, hard to break, and super stable transmission of Gigabit network signals
● Easy installation for intelligent buildings of home improvement, engineering, multimedia integrated business data network connectivity
Product Description

Shanghai Tangpin Technology Co., Ltd is a leading professional LAN cable manufacturer, wholesaling of telecom-level networking ethernet cables and accessorsies at very reasonable prices. Our factory is ISO 9001 certificate, and all our products are RoHS, FLUKE compliant. Tangpin network cables were exported to over 100 countries in the world.

According to the standards proposed by TIA and ISO, twisted pair cables are divided into Cat3, Cat4, Cat5/Cat5e, Cat6/Cat6a, Cat7, Cat8 types. Different type of cables have different electrical properties. In principle, the larger the number, the newer the version, the more advanced the technology, the smaller the crosstalk, the wider the bandwidth, and of course the price is more expensive.

Cat5 Ethernet Cable Speed: 10/100Mbps for 100m

Category 5 (Cat5) cable, the most common cables existing today, is suitable to carry Ethernet signals, but also telephony and video. Cat5 provides a bandwidth of up to 100MHz, and its speed can range from 10Mbps to a maximum of 100 Mbps. It's the first choice for Fast Ethernet (100Mbps) due to its good quality and low price. The cable comes as UTP (Unshielded Twisted Pair) cable, but can also be found as SCTP (Screened Twisted Pair). The downside of Cat5 cable is that it is more susceptible to crosstalk (interference).Due to this disadvantage, it has become obsolete and is being replaced by the new Cat5e specification. Cat5 cabling is outdated and has effectively been replaced by Cat5e.

Cat5e Ethernet Cable Speed: 1000Mbps for 100m

Category 5e (Category 5 Enhanced) Ethernet cables are the enhanced version of Category 5 cables, and it can provide faster transfer rates, from 1000 Mbps and up to 1Gbps (Gigabit Ethernet). Another advantage is that Cat5e can be more flexible, so you can bend it to fit it in smaller spaces. CAT5 cables will work for network connections that are under 100Mbps, while a CAT5e cable can work up to 1000Mbps, a gigabit. CAT5e cable is also better than CAT5 in ignoring "crosstalk" or wire interference from the cable itself. Although Cat6/Cat6a and Cat7 cables exist and can work at faster speeds, CAT5e cables are suitable for most small networks. The cost for each cable varies by manufacturer and vendor, but usually, Cat5 cable is cheaper than Cat5e.

Cat5 vs Cat5e





cat5 ethernet cable

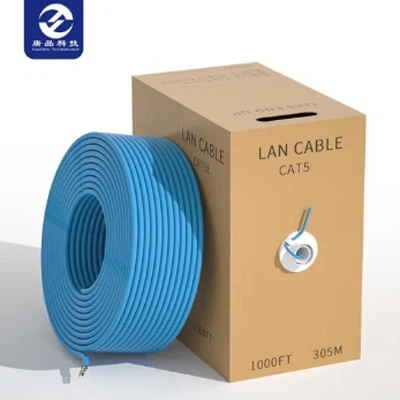

cat5e ethernet cable

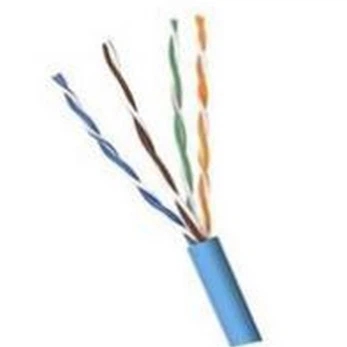

cat5 ethernet cable structure

cat5e ethernet cable structure

Cable type

twisted pair

twisted pair

Standard gauge

22-26 AWG

24-26 AWG


bare copper

bare copper





100 MHz

100 MHz


Upto 100Mbps

Upto 1000Mbps


100 Meters

100 Meters


higher cross talk and interference possibility

less cross talk and interference possibility compared than Cat5


Ethernet, Fast Ethernet

Ethernet, Fast Ethernet, Gigabit Ethernet

Characteristic impedence

100 ohms

100 ohms


Small office, home, home office

Medium size office, large office

Connector type




lower than Cat5e

Higher than Cat5

Cat5 cable is outdated. Cat5e and Cat6/Cat6a cables are the most popular cables for installing in today's office and homes. Businesses have began running Cat6/6A, even Cat7 & Cat8 cables for their networking needs. Choosing the right cable for your homes and offices according to your needs.

Why choose us?

Strong company strength

More than 5000 square meters of modern manufacturing factory

Over 50 sets of advanced manufacturing equipments

(Cable Stranding Machine, Copper Aluminum Fine Wire Drawing Machine, Cable Extruder Machine, Chemical Foaming Extrusion Machine,Paper Shielding Tapping Machine, etc.)

300+ Skilled workers, 30+ members of a powerful R&D and technician team

60+ modern production lines

From the following link, you will know much better about our factory

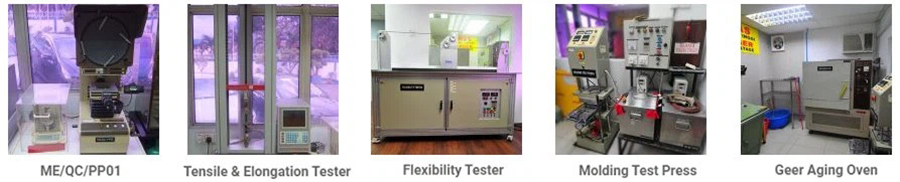

Strict Quality Control (QC)

1.The incoming inspection of raw materials.

(We check that the grade, diameter and elongation of copper rods to ensure the raw materials are correct and qualified. A visual inspection was also performed for any physical defects.)

2.Quality inspeciations are carried out throughout the manufacturing process including manual and automated testing.

(Semi-finished products are manually tested by QC controllers between each manufacturing stage. Automated testing employs electronic instruments to monitor the measurement results of the manufacturing process itself.)

3.All finished products are finally tested at the factory before shipment.

(Cables are tested for copper wire count, adequate wire diameter, proper insulation thickness, conductor resistance, and insulation resistance among countless other tests.)

Rich experience both in manufacturing & marketing

15-years professional manufacturing experiences

An expericenced exporter with 10 years international business

Having worked with over 1000 customers from 100+ countries and regions in the telecom industry

Very familiar with telecom markets in Europe, Asia, Africa, and North America.

Good knowleadge of Customs policies of many overseas countries


Certified with ISO9001 quality and environment management system

RoHS & CE compliant

Customized/OEM services

All types of Ethernet LAN cables can be customized. We offer OEM services, manufacturing products according to customer's specifications and requests, even printed with customized product label sticker and company logo.

How to get your customized Cat6/Cat6a cables?

1.Submitting your network cable inquiry:

Category cable type, Cat5 or Cat5e

Shielding layer type: UTP, STP, or FTP?

Inner conductor sizes and materials

Single bare copper size

Insulation material dimensions

Jacket color: blue, white, grey, red, yellow, etc.

Jacket material: PVC, LSZH, OFNP

Lengths: 0.3m ~305m optional

2.Getting the price offer

3.Confirming the offer

4.Making payment

5.Shipping out the order to you

Competitive price

Enjoy the factory direct sales price

Save at least 30% of the cost compared with purchasing from a trader or a distributor

Eliminate many intermediate links

Fast delivery

Daily production capacity over 20000pcs ensure a very quick lead time

Quality & Warranty

Use 99.95% Oxygen Free Copper (OFC) wires

(Oxygen Free Copper (OFC) wire, also known as solid copper wire or pure bare copper wire, extremely pure copper with very little oxygen content, is the highest conductivity copper cable wire that is refined to reduce the amount of oxygen to less than 0.003%, the total impurity content to less than 0.05%. and the purity of copper to more than 99.95%.)

ISO certificated

RoHS, CE compliant

Raw materials inspecation

Tests throught out all the production process

All finished products tested before shipping

Professional grade ethernet copper cables with super reliability and high steablility

5-years Warranty accounting from the date you receive it

Quick response

24-hours-online professional pre-sales consultation, after-sales services & prompt feedback

Offer sheet will be offered within 24hours based on your inquiry
