Network Server Cabinet is the solution for advanced storage, cooling, power distribution, cable management and security in data centers and network rooms. Designed to accommodate today's powerful computing hardware and scale to cater for emerging high end blade server and equipment technologies that are rapidly appearing over the the world and the data center environment is changing and a new generation of rack solutions was born for this change.
TANGPIN Tech can supply server standing cabinet, open rack cabinet, wall mount cabinet and electromagnetic Shielding cabinet.

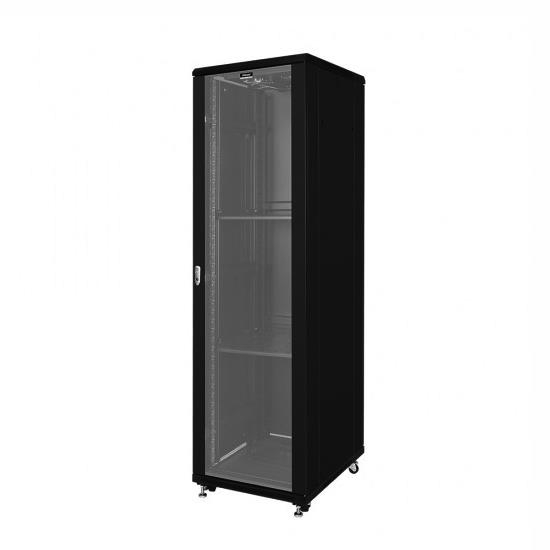

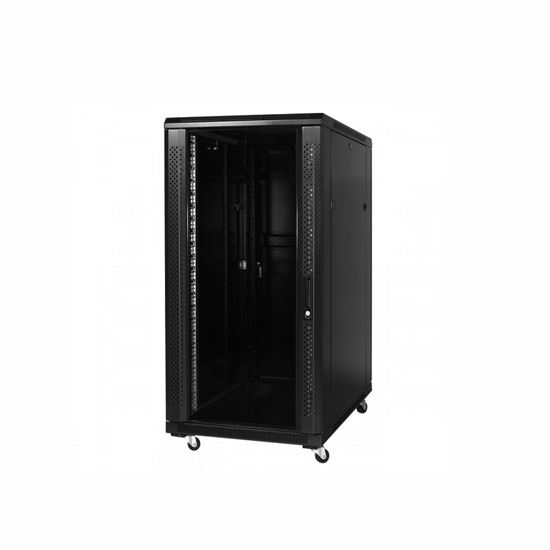

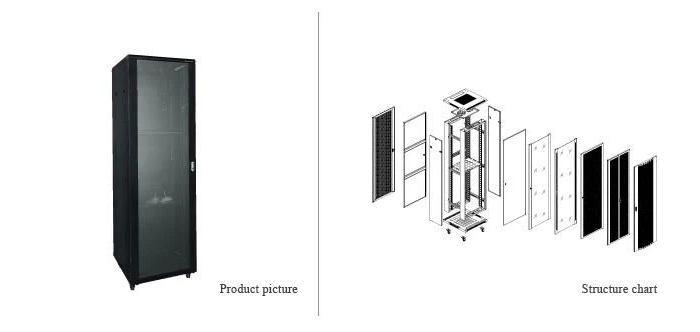

NPX-08-E Network Server Cabinet
Standards
Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.
Application
Widely applied in finance, securities and data center; adopted by the professional servers’ network providers as IBM, SUN, HP, COMPAQ, DELL etc.
Materials
Cold-rolled steel sheet. Thickness for frame 0.8mm, mounting rail 1.2mm, smoky gray glass 5mm.

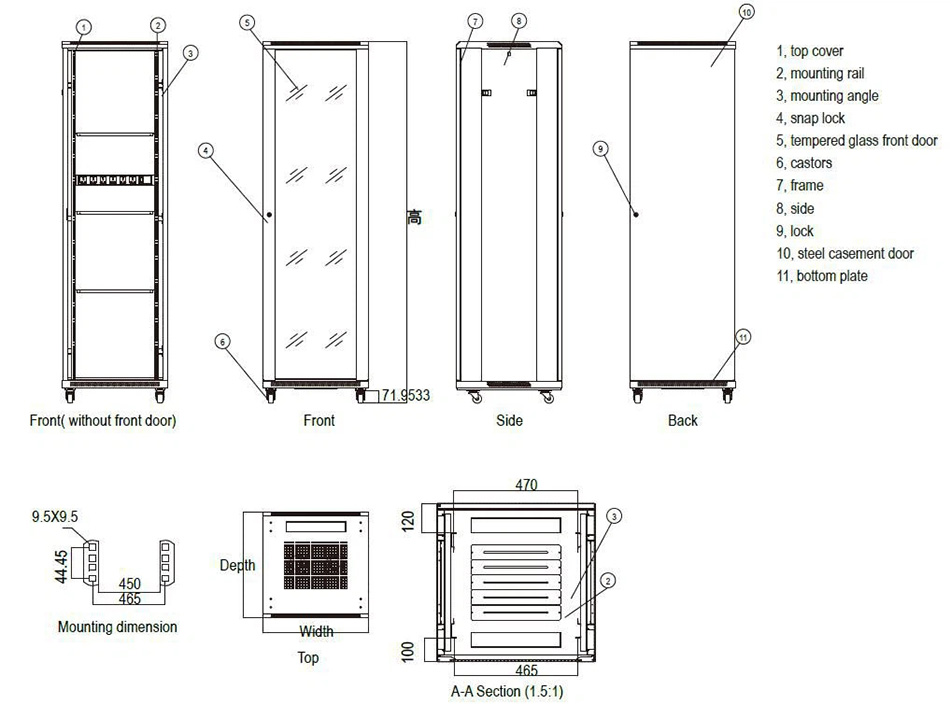

Dimension
Technical Specification
> Elegant appearance, the new design of the server cabinet also reflects the ability to manage the server
> Good compatibility, can adapt to more servers, perfect ventilation design
> Ventilated front and rear doors for ventilation and heat dissipation improve network equipment operation stability
> Can be closed on the upper, lower multiple alignment channel, the bottom of the large wire hole size can be adjusted
> Easy to remove the left and right side doors and front and rear doors, all-round operation, multi-directional view of the efficient and strong cabinet connection
> Can be installed caster and support foot at the same time, solid structure, the maximum static load up to 300KG
> Advanced Handlebar Cabinet Lock
> Degreasing, pickling, rust phosphate, water cleaning, electrostatic spray in line with European ROHS environmental standards
> Body color optional: black (RAL9004) or gray (RAL7044)
> Height, width, depth optional; a number of optional accessories

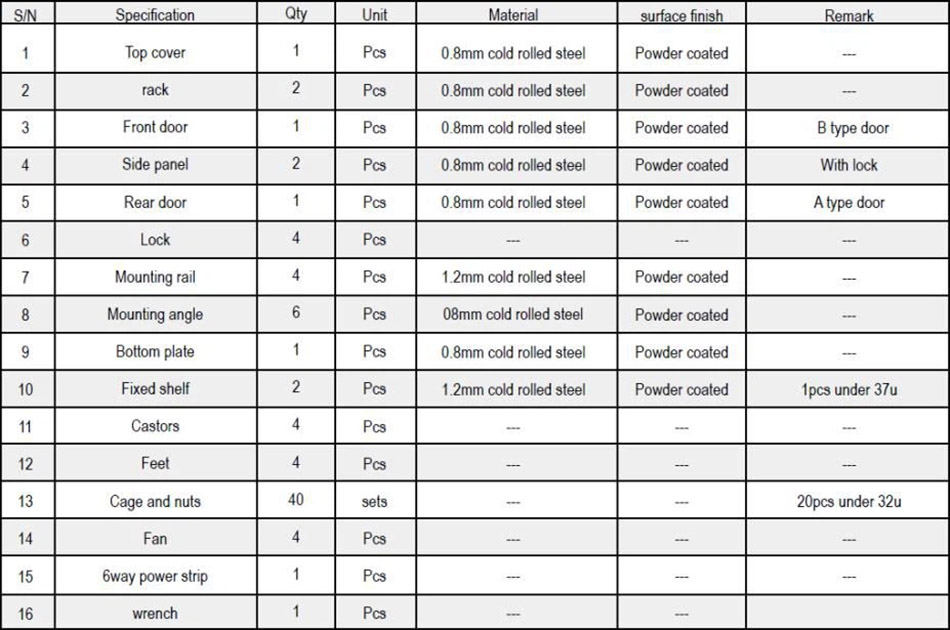

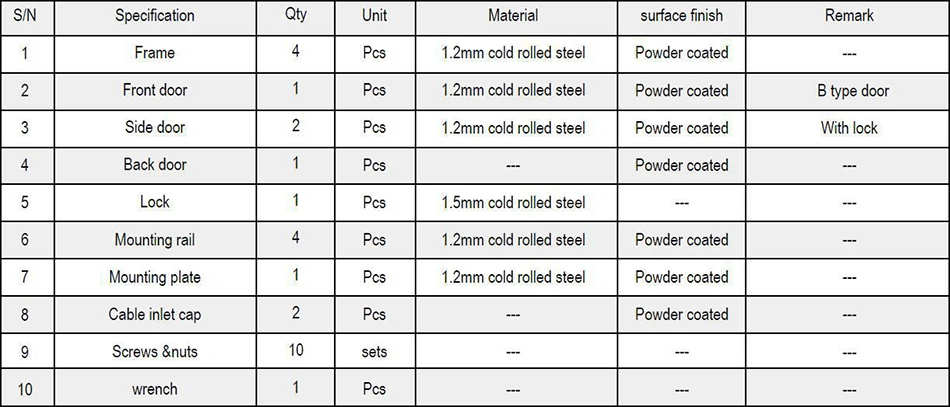

Standard Accessories

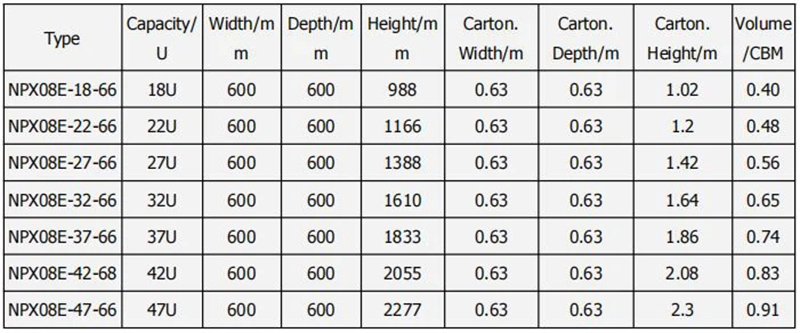

Ordering Information

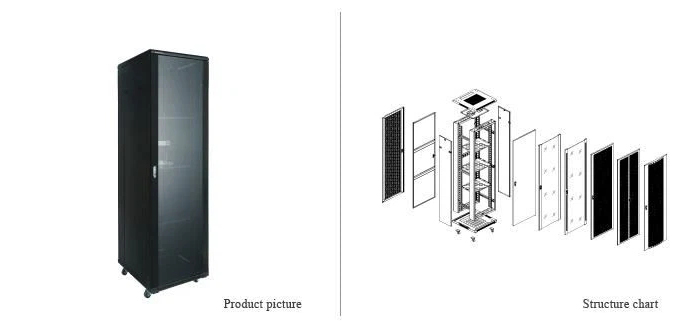

NPX-08-B Network Server Cabinet
Standards
Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.
Application
Widely applied in finance, securities and data center; adopted by the professional servers’ network providers as IBM, SUN, HP, COMPAQ, DELL etc.
Materials
Cold-rolled steel sheet. Thickness for frame 1.2mm, mounting rail 2.0mm(1.5mm for 600mm depth cabinet), fixed shelf 1.2mm , side panel 1.2mm. Thickness for smoky gray glass 5mm.

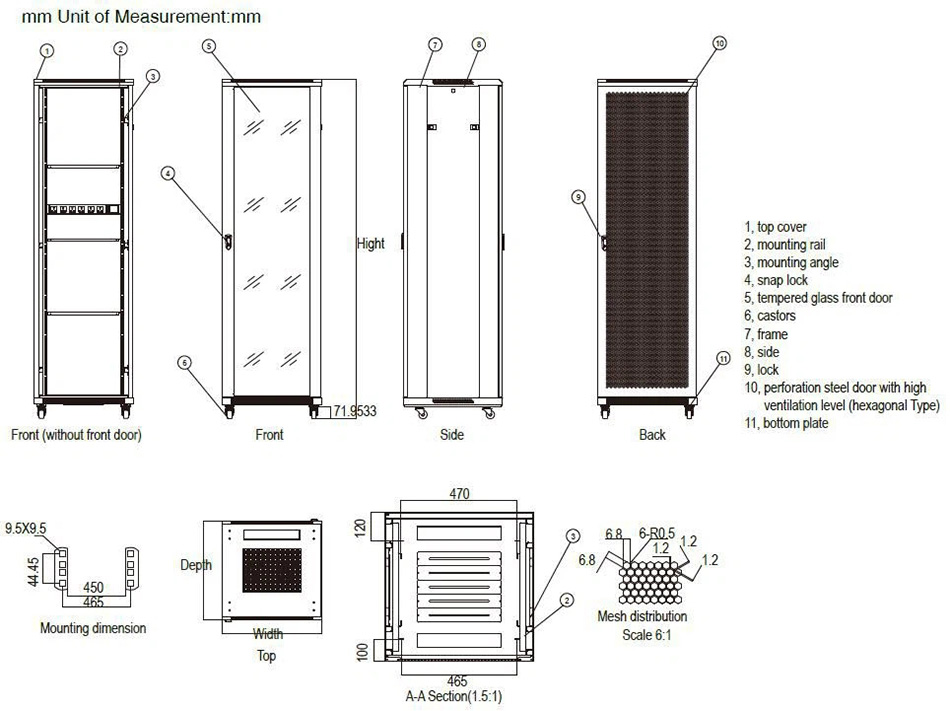

Dimension

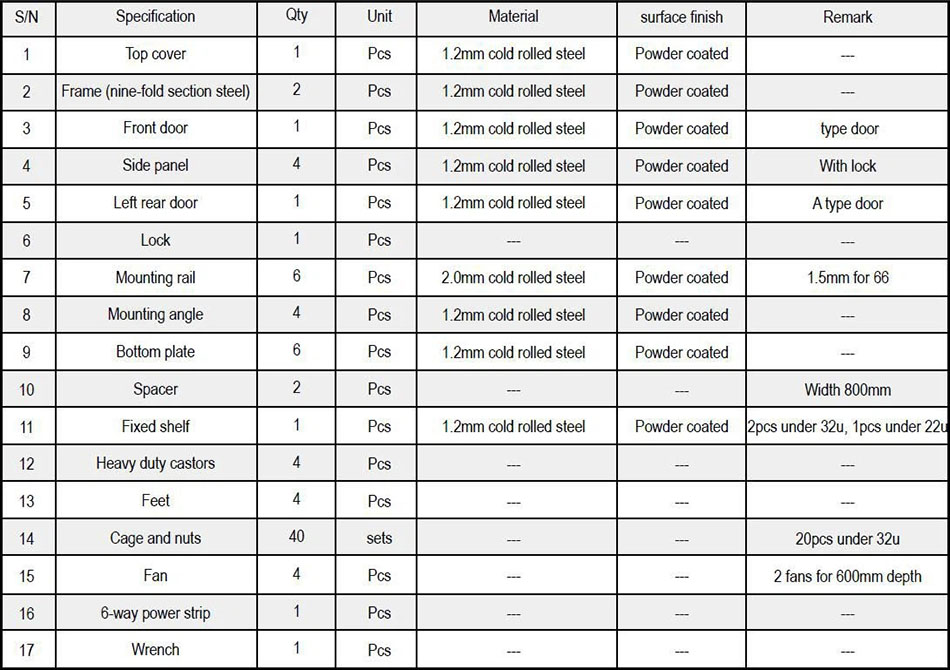

Standard Accessories

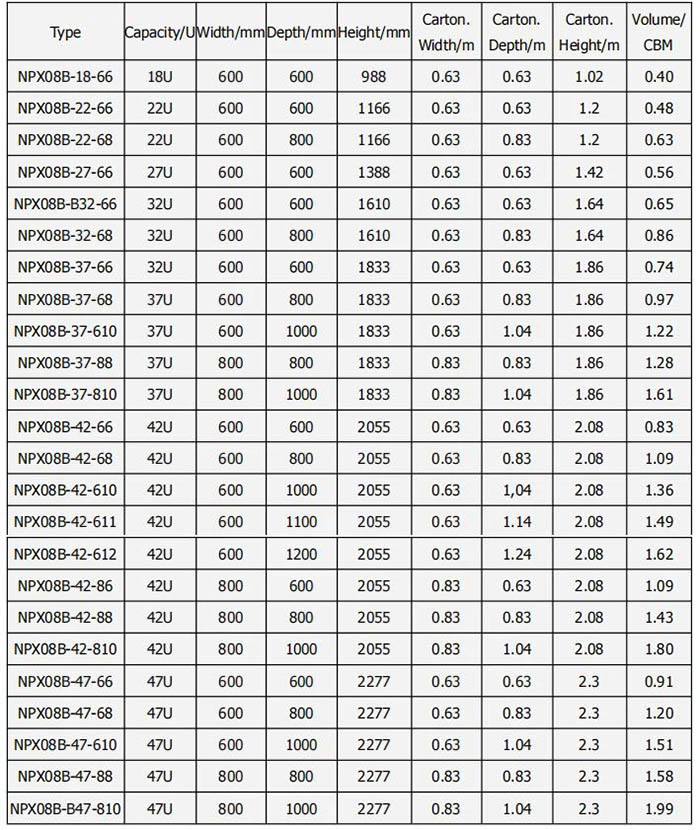

Ordering Information

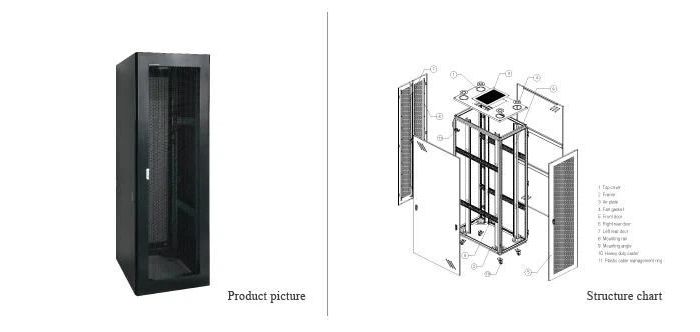

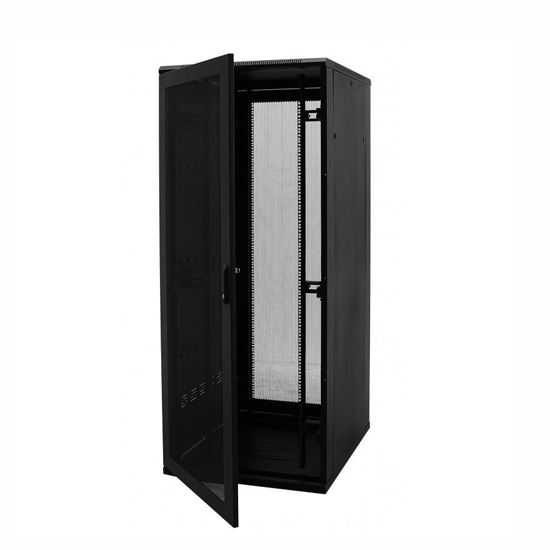

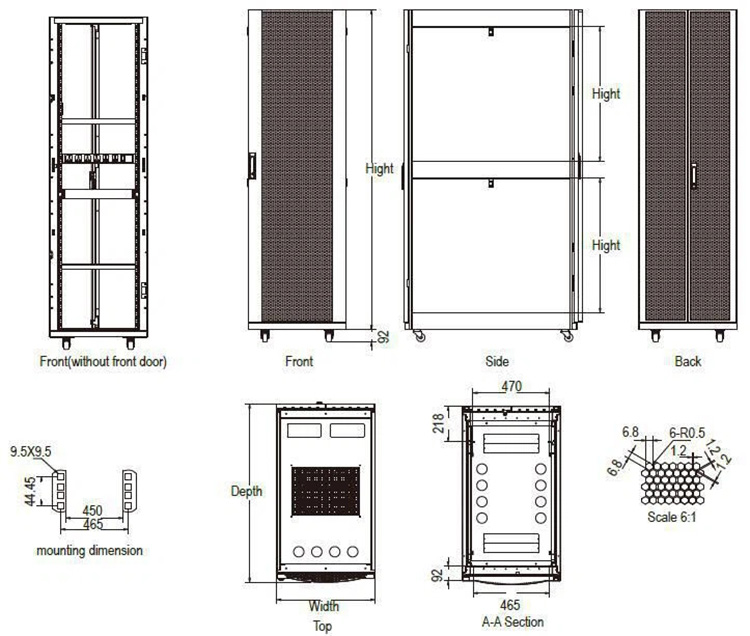

NPX-08-C Network Server Cabinet
Materials
Cold-rolled steel sheet. Thickness for frame (Nine-fold section steel)1.5mm, mounting rail 2.0mm, side panel 1.5mm
Technical Specification
> Plating through the strict degreasing, pickling, rust-proof phosphatisation, pure water cleaning, and then electrostatic spray, spray thickness of 80μm-100μm, in line with European ROHS environmental standards
> It is equipped with a front door and a double open back door for easy removal of ventilation holes. The ventilation area is more than 80%
> The removable left and right side doors are convenient for ventilation and heat dissipation, improve the stability of network equipment operation, good compatibility, perfect ventilation design, all-round operation, multi-directional view, can adapt to more servers
> Frame with 10% off profiles features: enhanced load strength, to ensure product safety
> Can be closed on the upper, lower multiple alignment channel, the bottom of the large wire size can be adjusted, with a grounding screw
> Optional mounting base to reach the fixed cabinet, the bottom of the line, the bottom of the cold air, rodent control requirements
> High-level cabinet door locks, efficient and strong cabinet connection
> Can be installed caster and support foot at the same time; solid structure, the maximum static load up to 1000KG
>Complete range of optional accessories

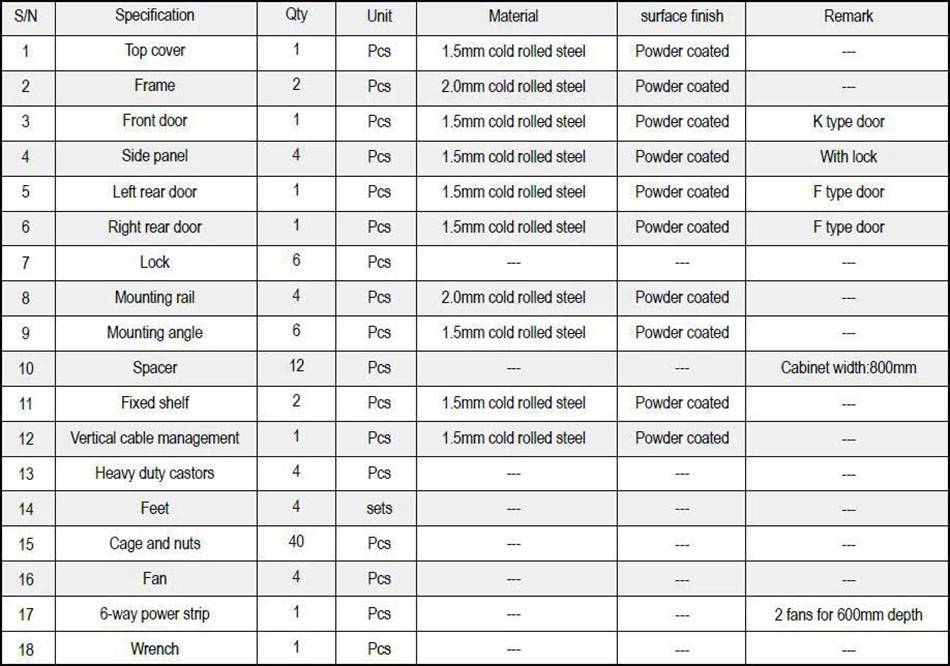

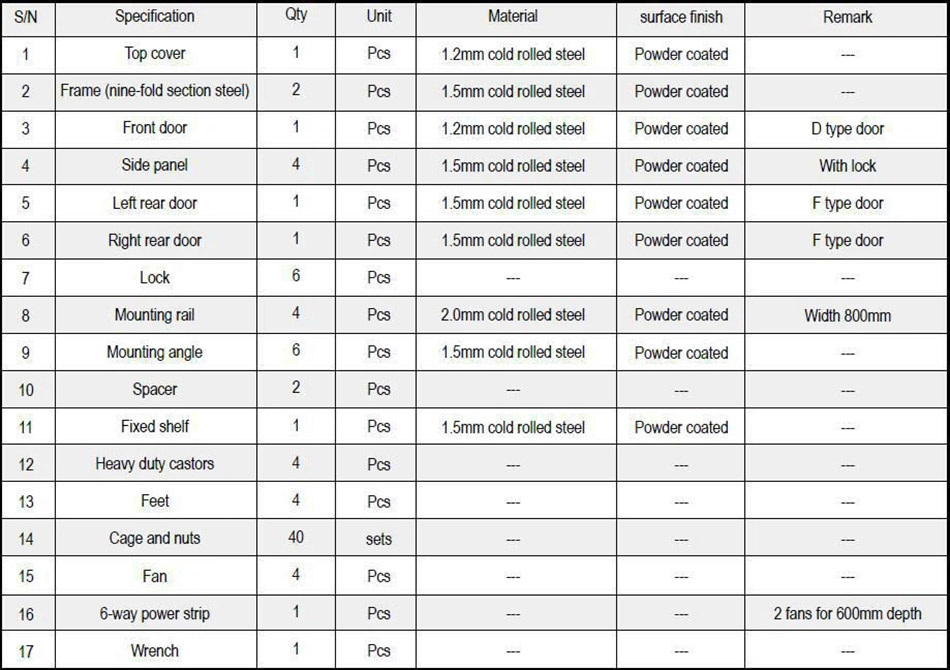

Standard Accessories
Ordering information

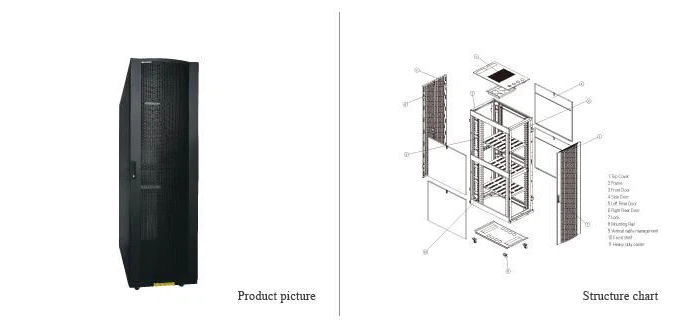

NPX-08-F Network Server Cabinet
Materials
Cold-rolled steel sheet. Thickness for frame 2.0mm, mounting rail 2.0mm, side panel 1.5mm,fixed shelf 1.5mm

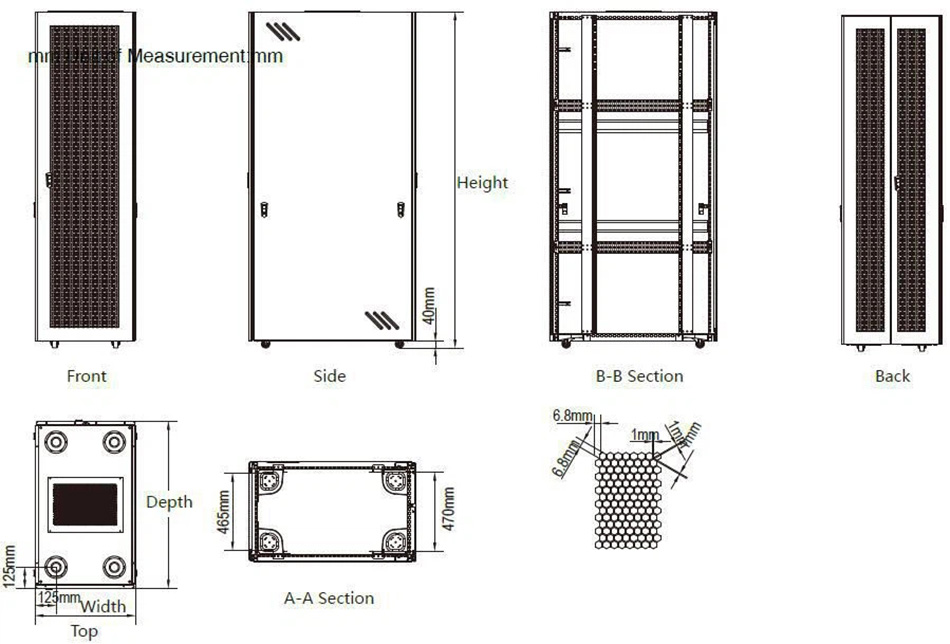

Dimension
Standard Accessories

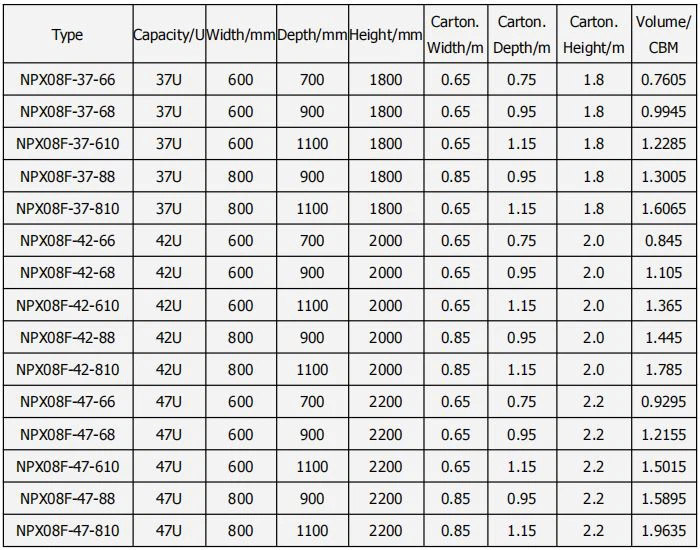

Ordering information

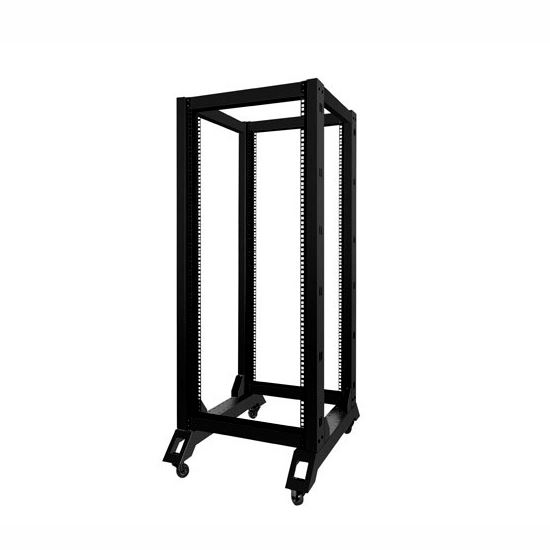

Open Rack Cabinet
Open frame racks are mostly used for applications that do not require a high level of protection, since they leave much of the equipment exposed. However, they also allow for relatively easy accessibility when compared to a locked up, fully enclosed cabinet.
For network components, laboratory and communication equipment, or other hardware in your workstation, an open frame rack may be the way to go. We offer a selection that includes full-size two and four post racks, but that's far from all we've got. For limited space areas, we have slide-out and wall-mount racks, and for areas that require frequent adjustment, reconfiguration, or expansion, we also feature a section of modular racks. No matter the need, we're sure to have an open frame solution that fits.

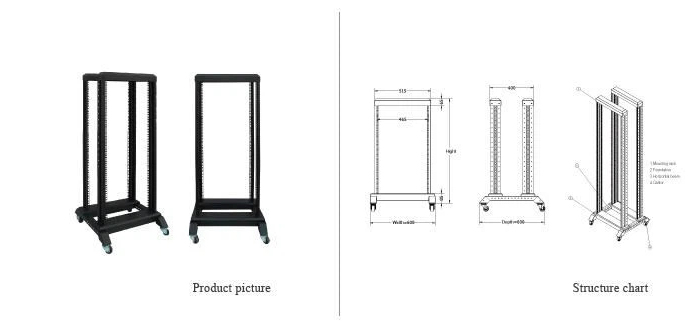

NPX-08-OPEN Network Server Cabinet
Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.
Application
Widely used in network system, educational system, broadcasting system and telecommunication system. Suitable for placing server computer and precision electronic equipment. Materials: Cool-rolled steel.
Thickness
Front and bottom beams is 1.5mm, else is 1.2mm Tempered smoky-gray glass with thickness of 5mm.

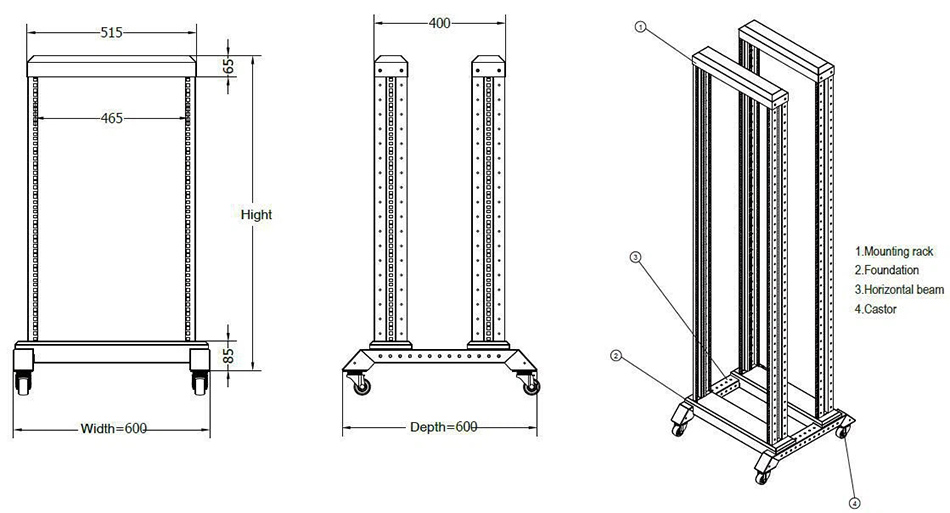

Dimension
Technical Specification
> Modular design, easily assemble and disassemble for delivery, low cost.
> Various optional accessories according to requirements.
> Static load: 150kg.
> Lever of protection: IP20.
> Degreasing, acid cleaned, phosphoric, water cleaned, electrostatic spray coating, meet ROHS standard.
> Optional color: black/gray.
> Optional accessories.

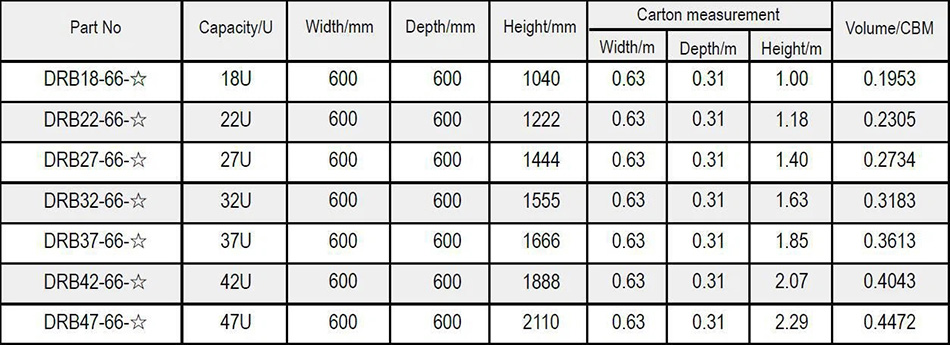

Ordering information

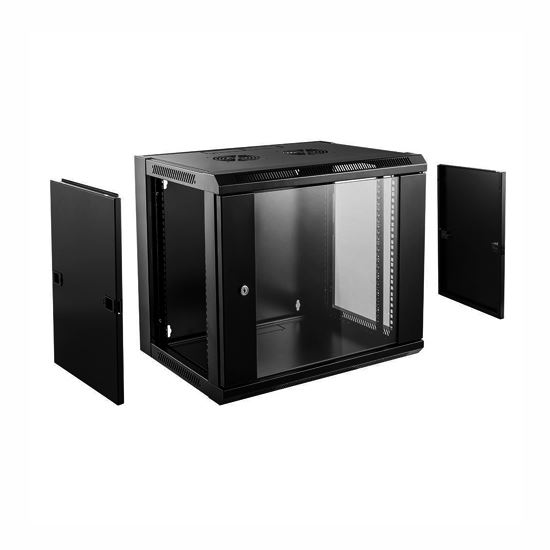

Wall Mount Network Cabinet
Wall Mount Racks and Ceiling Cabinets can help free up floor space while providing security and accessibility for your network components, audio/visual equipment, and other hardware. Ceiling boxes disappear into your plenum spaces, keeping components and hardware secure and completely out of the way, allowing your conference room or presentation space to be free of clunky cabinets.
Wall mount enclosures and open wall mount racks are great for smaller applications that don't require a full size cabinet, and some models feature up to 25U of available rack space. Swing-out wall mount server racks make it easier to access components for maintenance or modification.

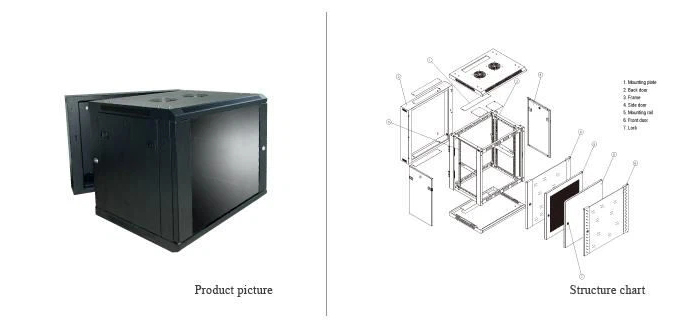

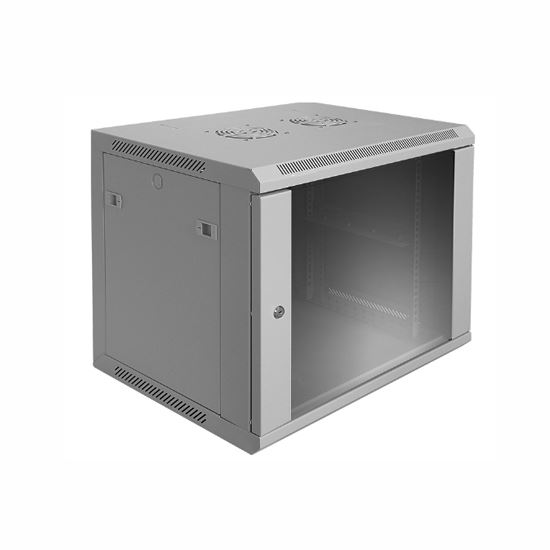

NPX-08-W Network Server Cabinet
Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard, compatible with metric, ETSI and 19’ international standard.
Application
Widely used in network system, educational system, broadcasting system and telecommunication system. Suitable for placing server computer and precision electronic equipment.
Materials: Cool rolled steel
Thickness: Vertical rail is 1.5mm, and else in 1.2mm Tempered smoky-gray glass with thickness of 5mm.

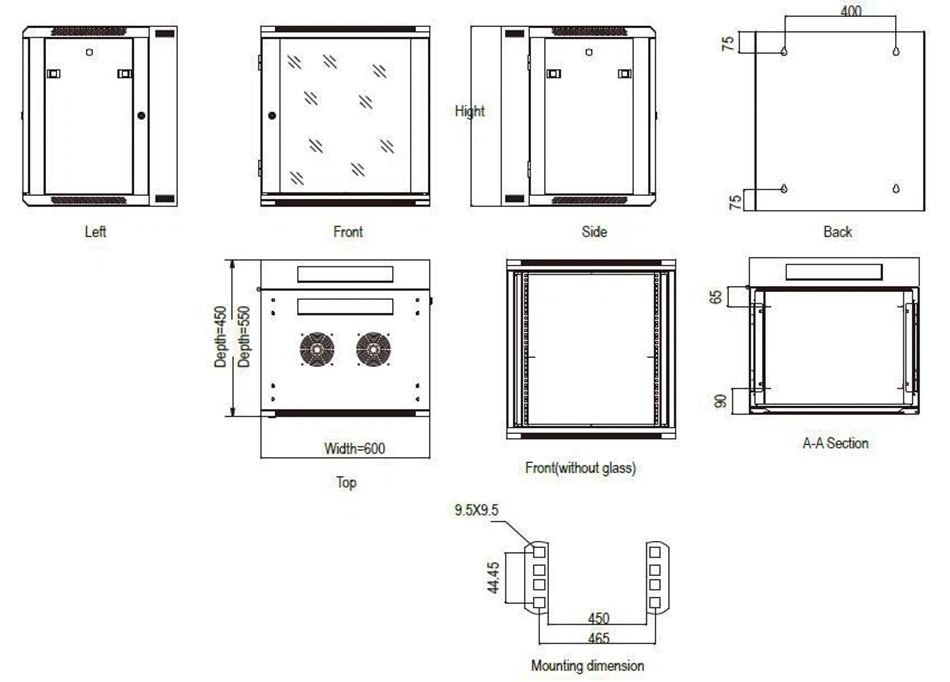

Dimension
Technical Specification
> Exquisite design with precise craftsmanship.
> International popular smoky-gray glass front door.
> Easily be mounted on wall, or placed on floor after installed castor or feet.
> Loading capacity: 60KG.
> Top and bottom wiring channel could be closed.
> Removable front door and side panel, easily installing and maintaining.
> Degrease, acid cleaned, phosphoric, water cleaned, electrostatic powder coating, meet ROHS standard.
> Optional color: black/gray.
> Optional accessories.
Standard Accessories

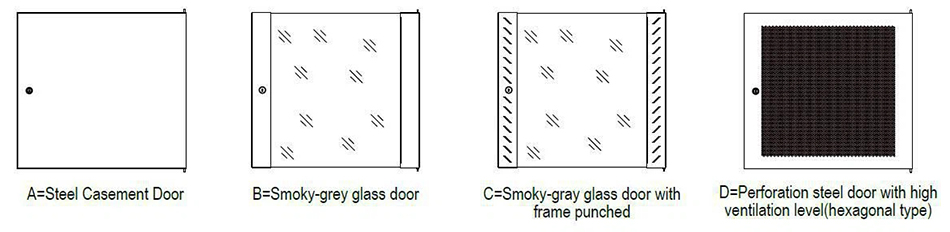

Doors
Ordering information
Electromagnetic Shielding Cabinet

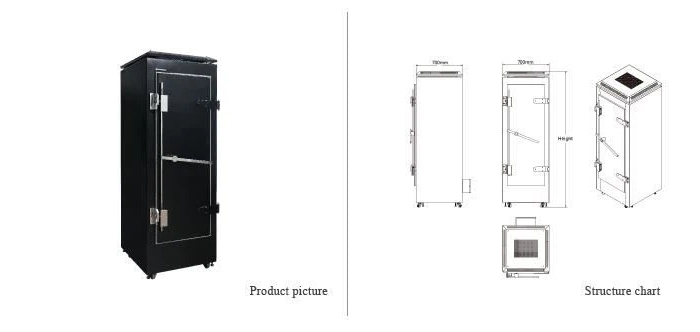

NPX-08-S Network Server Cabinet
Comply with GB12190-90 level C(FS-C) standard.
Magnetic field: 14KHz≧70dB 150KHz≧95bB Electric field: 200KHz~1GHz≧100dB Plane wave: 50MHz~1GHz≧100dB Microwave: 1GHz~10GHz≧95dB Level B(FS-B) 150MHz~930MHz≧80dB
Application
Widely applied in anti-computer, network servers, switches, communications equipment in operation to produce signal leakage and to prevent the equipment in operation by external electromagnetic interference.

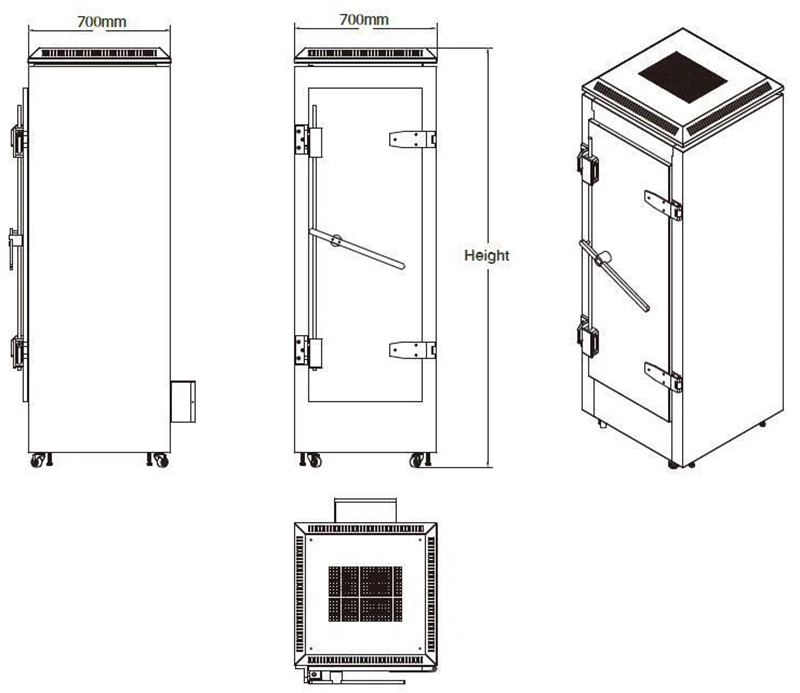

Dimension
Technical Specification
> Shielded shell: cold-rolled steel plate welded into the whole closed box, after galvanized and spray anti-corrosion treatment
> Screen door: high-quality materials have been carefully produced and processing of shielding reeds, cold-rolled steel plate welded into the doors of the screen composed of the door
> Filter: The power supply filter has a wide suppression band and high insertion
loss
> Ventilation waveguide window: honeycomb ventilation duct window, the top of the waveguide window with a small number of micro-axial fan, a single exhaust volume 1.4m3 / min
> Other: According to customer requirements, such as transmission interface and electrical outlet
> Prevent the computer, network servers, switches, communications equipment in the operation of confidential information leakage
> To prevent the equipment in operation by the interference of external electromagnetic waves to ensure its normal work Light, flexible and reliable

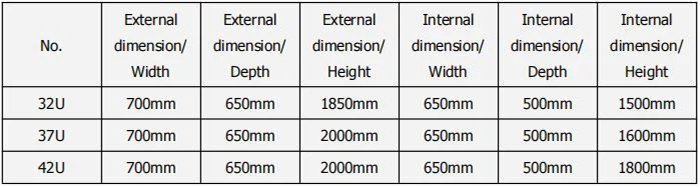

Ordering information
