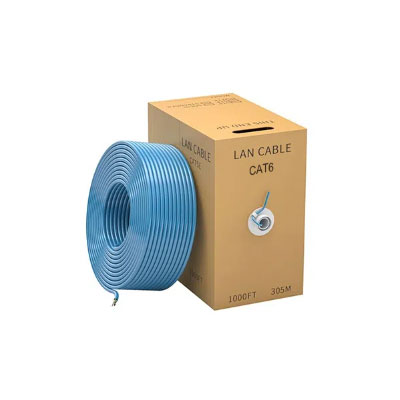

Cat6 / Cat6a Network Cable

● 23AWG/0.57mm diameter high-quality oxygen-free copper conductor
● 250Mhz transmission frequency, up to 10Gbps transmission rate
● Very small attenuation, fast transmission speed and high signal stability
● Flexible, resistant to bending, no knots, hard to break, and super stable transmission of Gigabit network signals
● Easy installation for intelligent buildings of home improvement, engineering, multimedia integrated business data network connectivity
Product Description

Shanghai Tangpin Technology Co., Ltd is a leading professional LAN cable manufacturer, wholesaling of telecom-level networking ethernet cables and accessorsies at very reasonable prices. Our factory is ISO 9001 certificate, and all our products are RoHS, FLUKE compliant. Tangpin network cables were exported to over 100 countries in the world.

Category 6 network cable (Cat 6), an advancement of the UTP Cat 5e, is backward compatible with the Category 5/5e and Category 3 cable standards, in line with ISO/IEC 11801:2002 and EIA/TIA 568B standards. Its bandwidth is twice bigger than that of Category 5e (Cat 5e) cable, and its transmission performance is much higher than Category 5e Network cable, suitable for Gigabit Ethernet (maximum transmission distance of 100m) and 10 Gigabit Ethernet (maximum transmission distance of 37m~55m) wiring. There are two types of Category 6 cables: shielded (UTP) and unshielded (FTP).

Category 6a network cable(Cat6a) is an upgraded version of Cat6 network cable, so it is also called "enhanced Cat6 network cable". It conforms to the standards of ISO/IEC 11801:2002 and EIA/TIA 568-B.2-1. In terms of performance, it is better than the Category 6 network cable (Cat 6). Compared with Category 6 network cables, the outer diameter of Category 6 cables is larger, the weight is heavier, and the minimum bending radius is larger, backward compatible with the Category 6, 5/5e cables. Cat 6A performance is defined for frequencies up to 500 MHz—twice bigger than that of Cat 6.

Cat6 vs Cat6a





Cat6 cable

Cat6a cable


cat6 cable structure

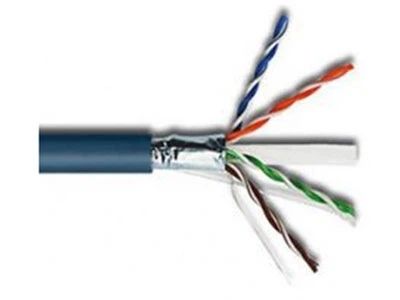

cat6a cable structure

cable type



standard gauge

22-24 AWG

16-20 AWG


bare copper

bare copper

cable diameter



max speed

1 Gbps

10 Gbps

bend radius







250 MHz

500 MHz

insertion loss



Characteristic impedence

100 ohms + 15%

100 ohms + 15%







Return loss



connector type




lower than Cat6a

20% ~ 30% higher than Cat6

Why choose us?

Strong company strength

More than 5000 square meters of modern manufacturing factory

Over 50 sets of advanced manufacturing equipments

(Cable Stranding Machine, Copper Aluminum Fine Wire Drawing Machine, Cable Extruder Machine, Chemical Foaming Extrusion Machine,Paper Shielding Tapping Machine, etc.)

300+ Skilled workers, 30+ members of a powerful R&D and technician team

60+ modern production lines

From the following link, you will know much better about our factory

Strict Quality Control (QC)

1.The incoming inspection of raw materials.

(We check that the grade, diameter and elongation of copper rods to ensure the raw materials are correct and qualified. A visual inspection was also performed for any physical defects.)

2.Quality inspeciations are carried out throughout the manufacturing process including manual and automated testing.

(Semi-finished products are manually tested by QC controllers between each manufacturing stage. Automated testing employs electronic instruments to monitor the measurement results of the manufacturing process itself.)

3.All finished products are finally tested at the factory before shipment.

(Cables are tested for copper wire count, adequate wire diameter, proper insulation thickness, conductor resistance, and insulation resistance among countless other tests.)

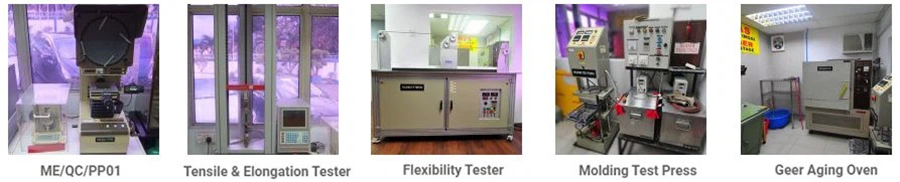

caat6 cable QC

Rich experience both in manufacturing & marketing

15-years professional manufacturing experiences

An expericenced exporter with 10 years international business

Having worked with over 1000 customers from 100+ countries and regions in the telecom industry

Very familiar with telecom markets in Europe, Asia, Africa, and North America.

Good knowleadge of Customs policies of many overseas countries


Certified with ISO9001 quality and environment management system

RoHS & CE compliant

Customized/OEM services

All types of Ethernet LAN cables can be customized. We offer OEM services, manufacturing products according to customer's specifications and requests, even printed with customized product label sticker and company logo.

How to get your customized Cat6/Cat6a cables?

1.Submitting your network cable inquiry:

Category cable type, Cat6 or Cat6a

Shielding layer type: UTP, STP, FTP, SFTP, or ASTP

Inner conductor sizes and materials

Single bare copper size

Insulation material dimensions

Jacket color: blue, white, grey, red, yellow, etc.

Jacket material: PVC, LSZH, OFNP

Lengths: 0.3m ~305m optional

2.Getting the price offer

3.Confirming the offer

4.Making payment

5.Shipping out the order to you

Competitive price

Enjoy the factory direct sales price

Save at least 30% of the cost compared with purchasing from a trader or a distributor

Eliminate many intermediate links

Fast delivery

Daily production capacity over 20000pcs ensure a very quick lead time

Quality & Warranty

Use 99.95% Oxygen Free Copper (OFC) wires

(Oxygen Free Copper (OFC) wire, also known as solid copper wire or pure bare copper wire, extremely pure copper with very little oxygen content, is the highest conductivity copper cable wire that is refined to reduce the amount of oxygen to less than 0.003%, the total impurity content to less than 0.05%. and the purity of copper to more than 99.95%.)

ISO certificated

RoHS, CE compliant

Raw materials inspecation

Tests throught out all the production process

All finished products tested before shipping

Professional grade ethernet copper cables with super reliability and high steablility

5-years Warranty accounting from the date you receive it

Quick response

24-hours-online professional pre-sales consultation, after-sales services & prompt feedback

Offer sheet will be offered within 24hours based on your inquiry
